Stationary Windows Component Views

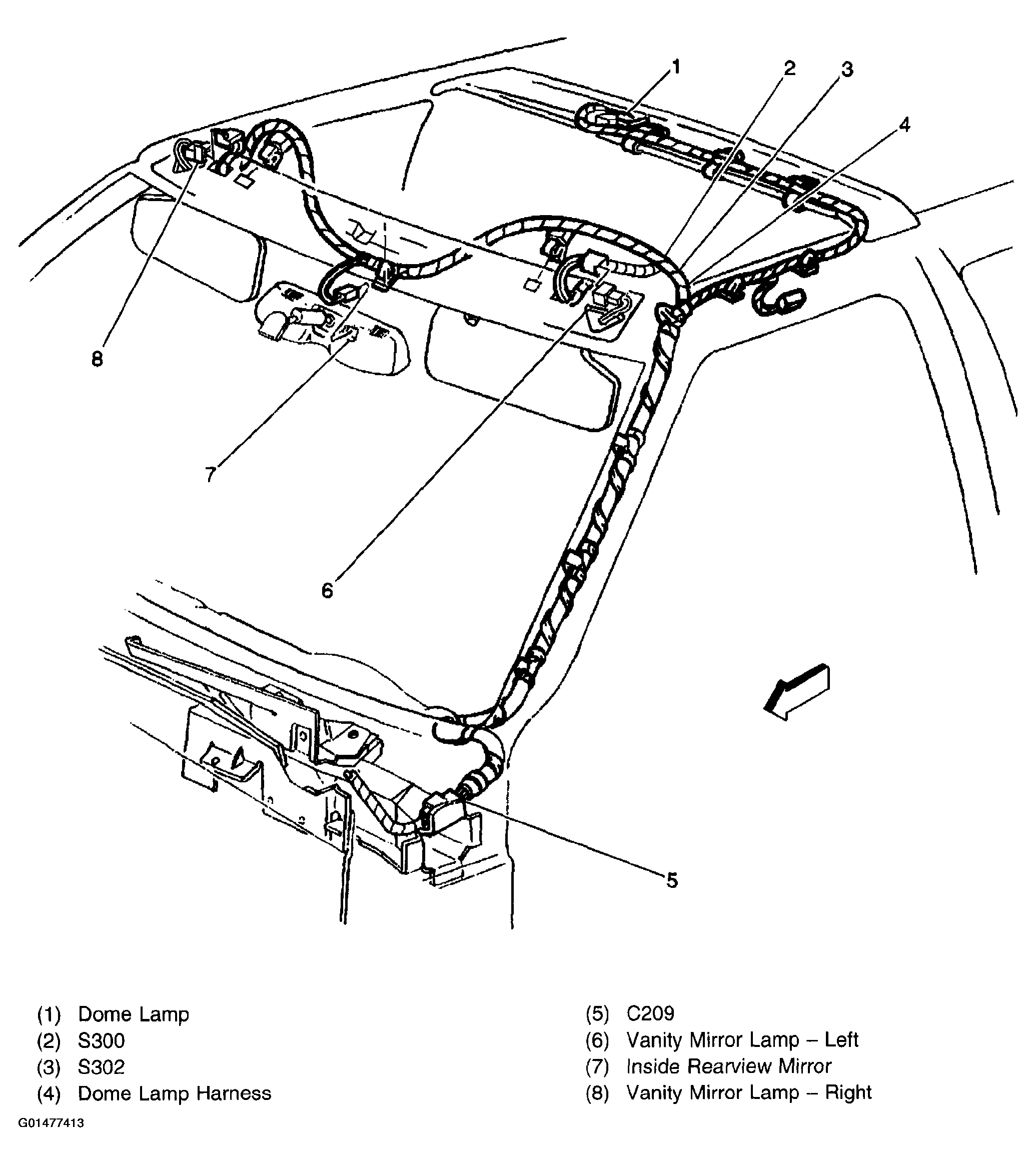

Fig 1: Dome Lamp Harness Component View W/O Driver Information Center - Utility
G01477413Courtesy of GENERAL MOTORS CORP.

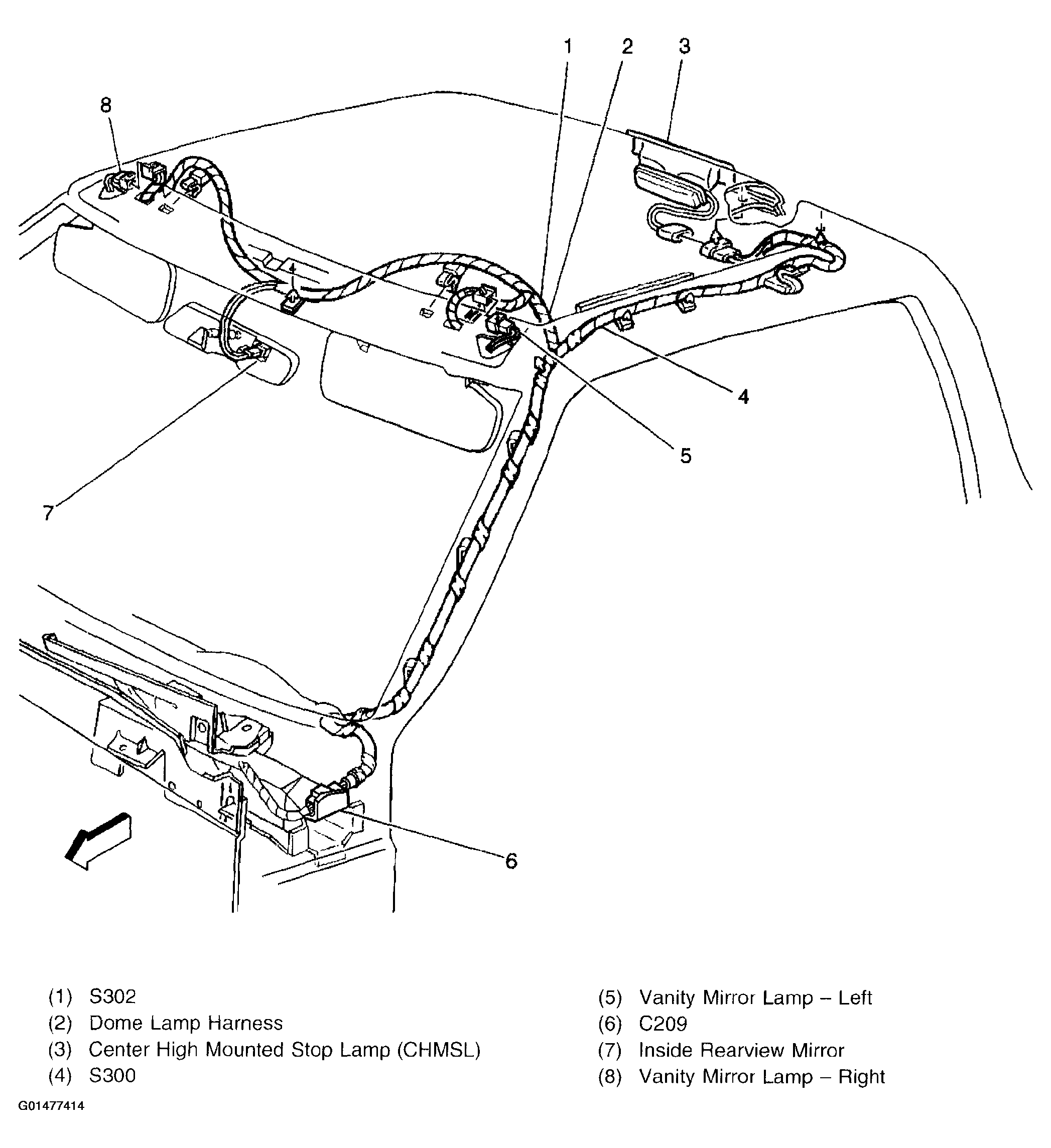

Fig 2: Dome Lamp Harness Component View - Regular Cab Pickup
G01477414Courtesy of GENERAL MOTORS CORP.

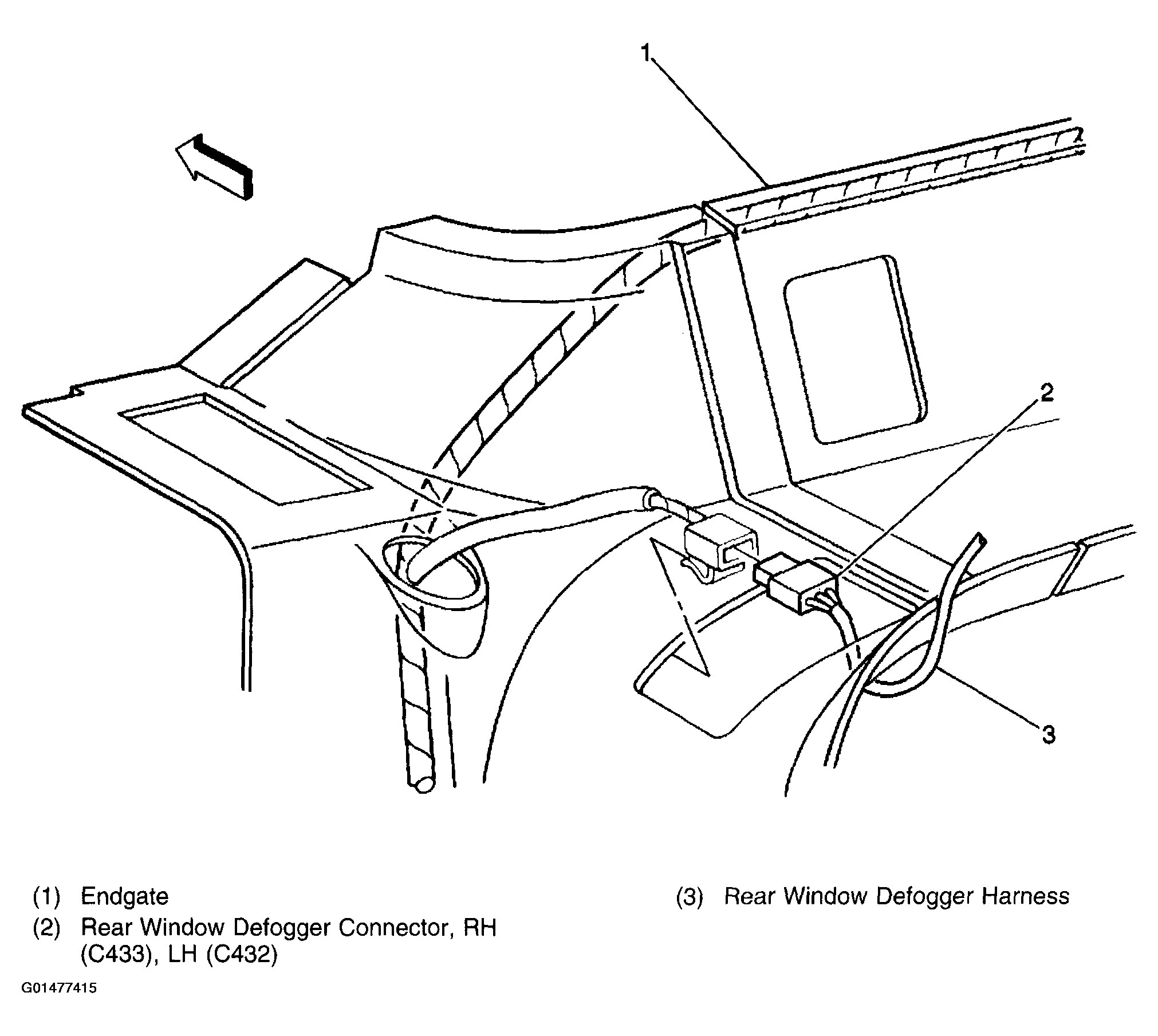

Fig 3: Rear Window Defogger Connector Harness Component View
G01477415Courtesy of GENERAL MOTORS CORP.
