Diagnostic System Check - Defogger
›
Diagnostic System Check Table- Defogger
Diagnostic System Check Table- Defogger

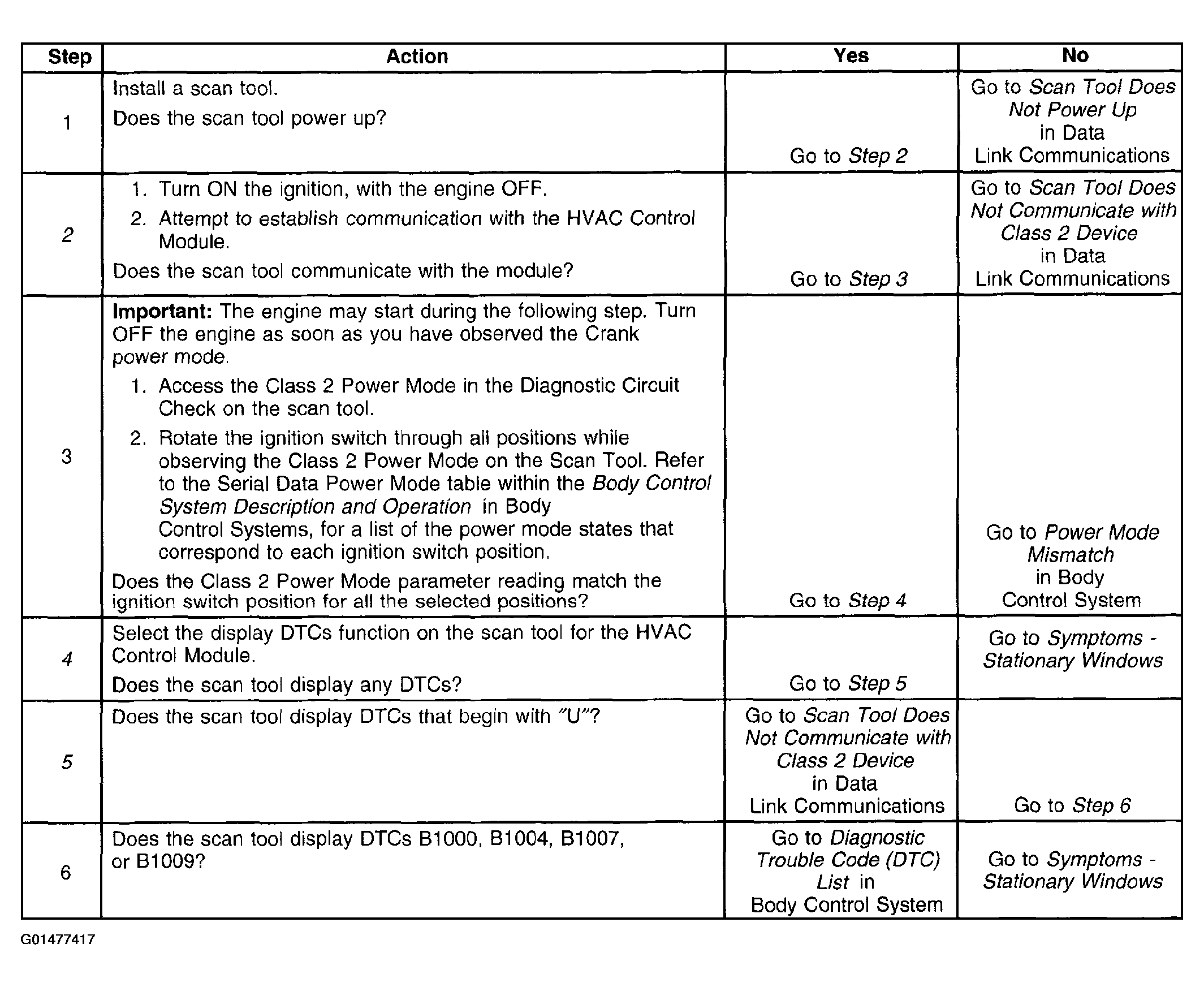

Fig 1: Diagnostic System Check Table - Defogger
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
