Installation Procedure

Install the window assembly to the vehicle.
Using the J 34940 , or equivalent, install the rivets in order to retain the window assembly to the vehicle.
Install the seat belt retractor. Refer to SEAT BELT REPLACEMENT--FRONT in Seat Belts.
Install the latch pin.
Using a punch, carefully drive the pin into the latch.

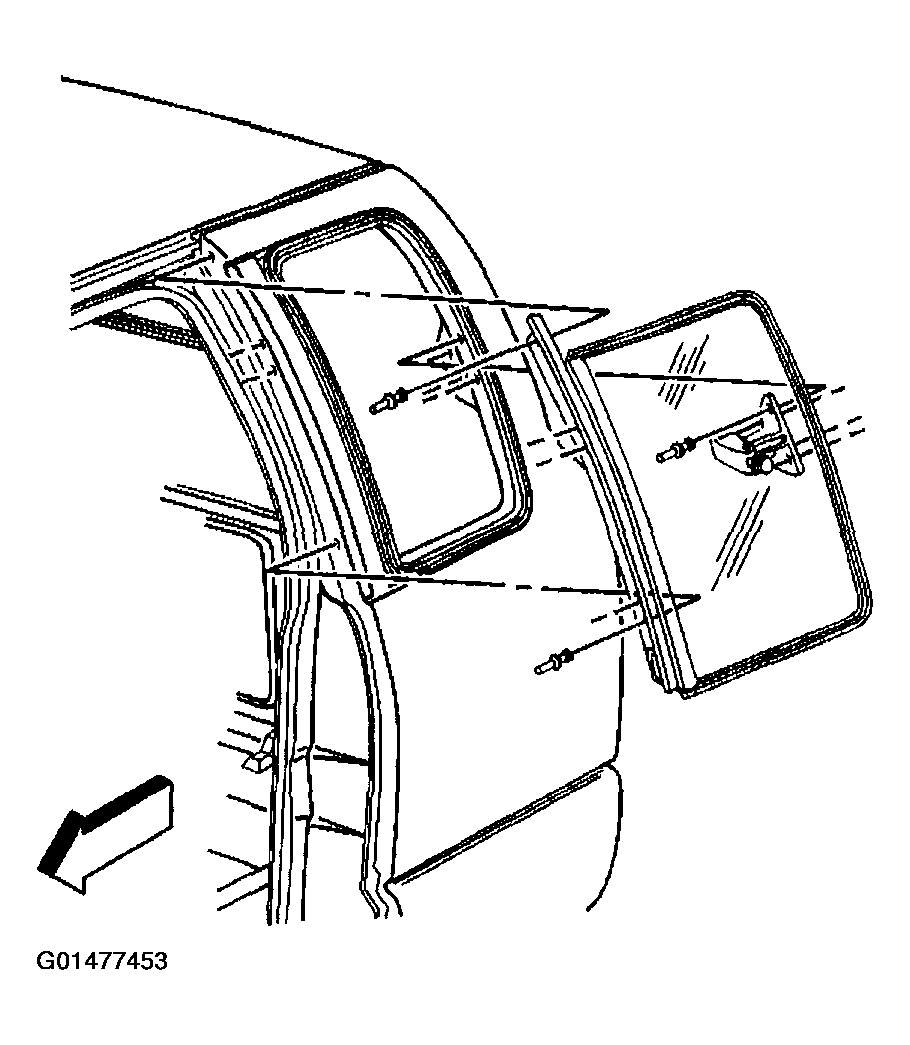

Fig 1: Installing Body Side Stationary Window (Pickup)
Courtesy of GENERAL MOTORS CORP.
