ABS Component Views

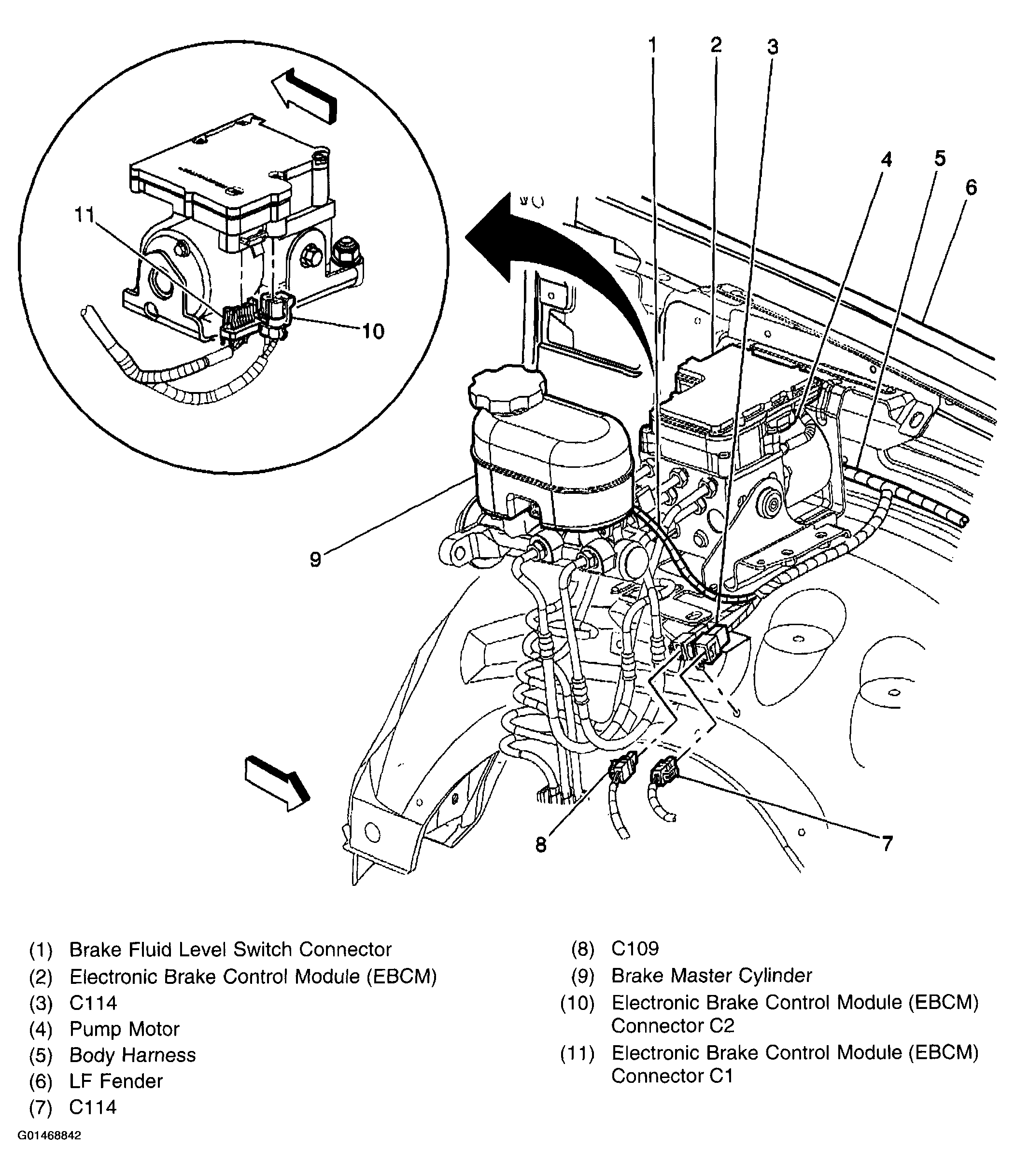

Fig 1: Locating Electronic Brake Control Module (EBCM)
G01468842Courtesy of GENERAL MOTORS CORP.

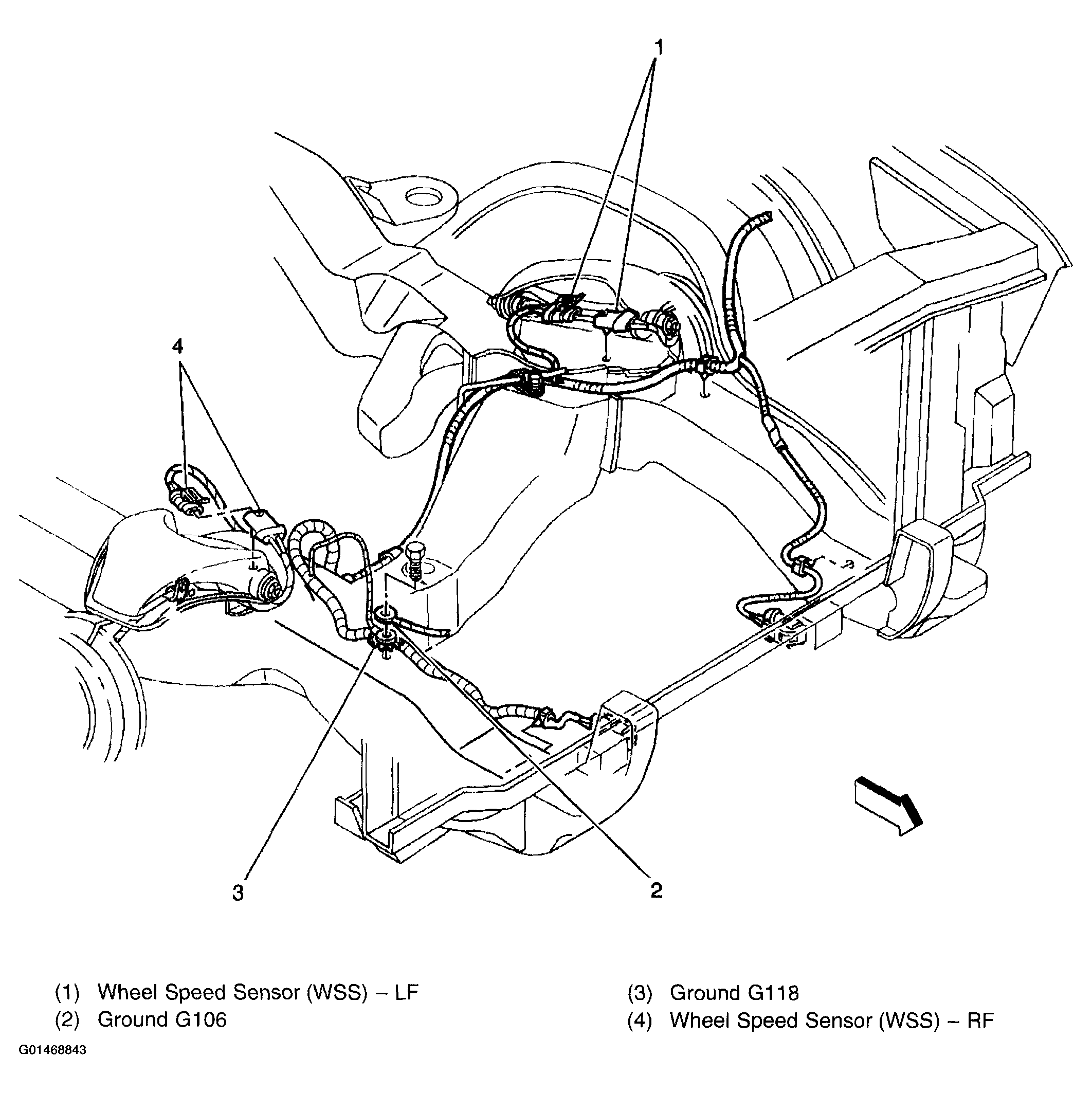

Fig 2: Forward Wiring Sensor Components
G01468843Courtesy of GENERAL MOTORS CORP.
