Removal Procedure
CAUTION:
Refer to BRAKE DUST CAUTION
in Cautions and Notices.
CAUTION:
Refer to BRAKE FLUID IRRITANT CAUTION
in Cautions and Notices.
NOTE:
Refer to BRAKE FLUID EFFECTS ON PAINT & ELECTRICAL COMPONENTS
in Cautions and Notices.
Important: Thoroughly wash all contaminants from around the EHCU. The area around the EHCU must be free from loose dirt to prevent contamination of disassembled ABS components.

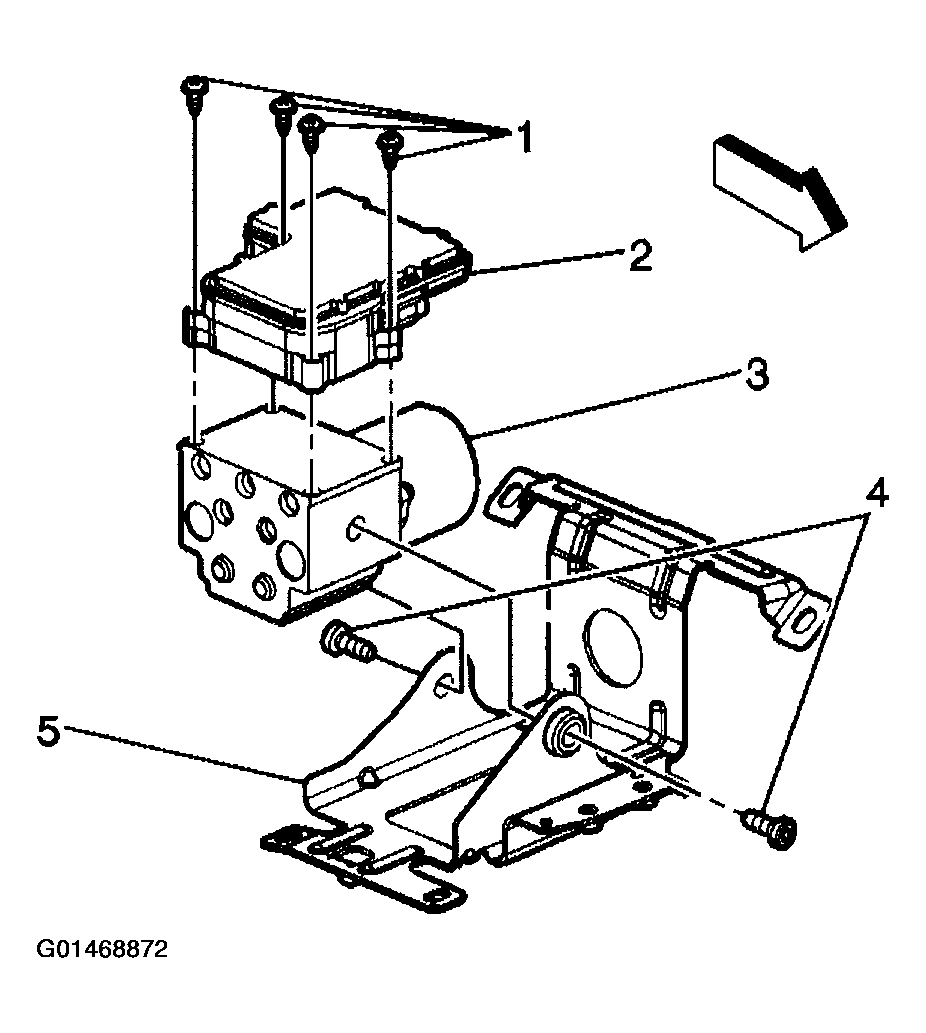

- Disconnect the two electrical harness connectors from the EBCM (2).
Important: Make sure that brake lines are tagged and kept in order for proper reassembly.
- Disconnect the 5 brake lines from the BPMV (3).
- Remove 2 bolts (4) securing the BPMV mounting bracket (5) to the BPMV (3).
- Disconnect the 2 way ABS pump motor connector.
- Remove the four T-25 TORX® screws (1) from the EBCM (2).
Important: Do not use a tool to pry the EBCM or the BPMV. Excessive force will damage the EBCM.
- Remove the EBCM (2) from the BPMV (3). Removal may require a light amount of force.
Important: Do not reuse the EBCM mounting bolts. Always install new bolts.
- Clean the EBCM (2) to BPMV (3) mounting surfaces with a clean cloth.
