Fastener Tightening Specifications
Fastener Tightening Specifications

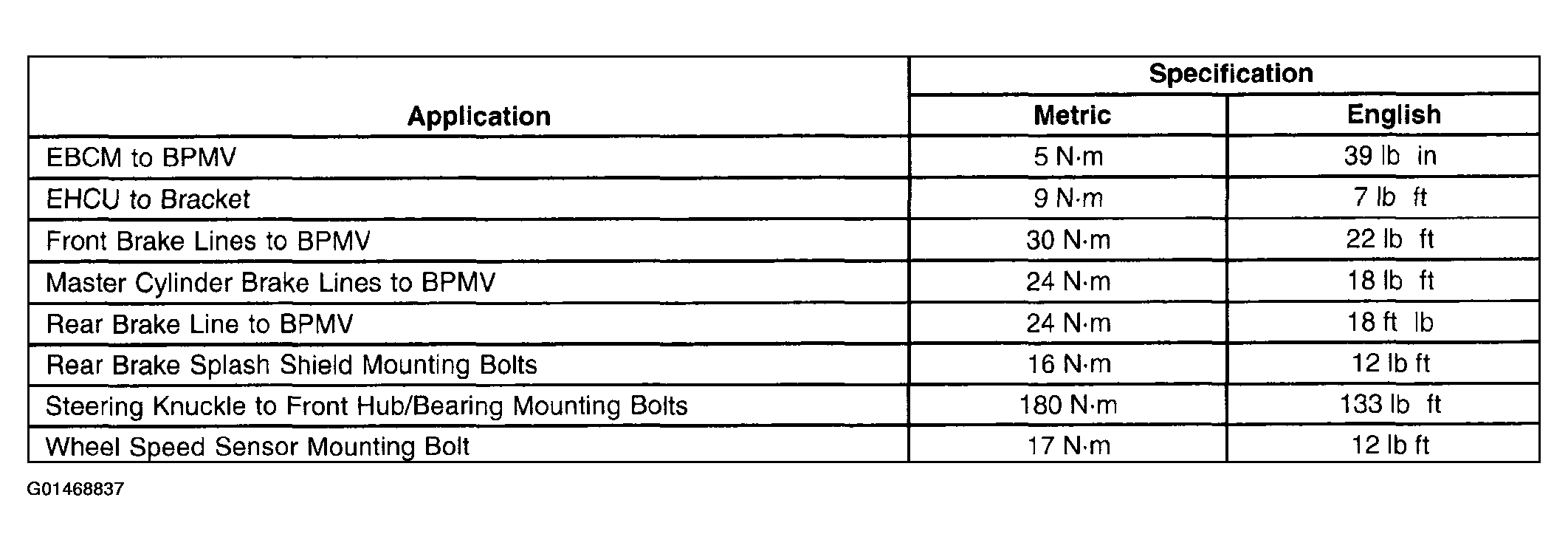

Fig 1: Antilock Brake System - Torque Specifications
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
