AT Inline 20-Way Connector End View, Transmission Side
AT Inline 20-Way Connector End View, Transmission Side

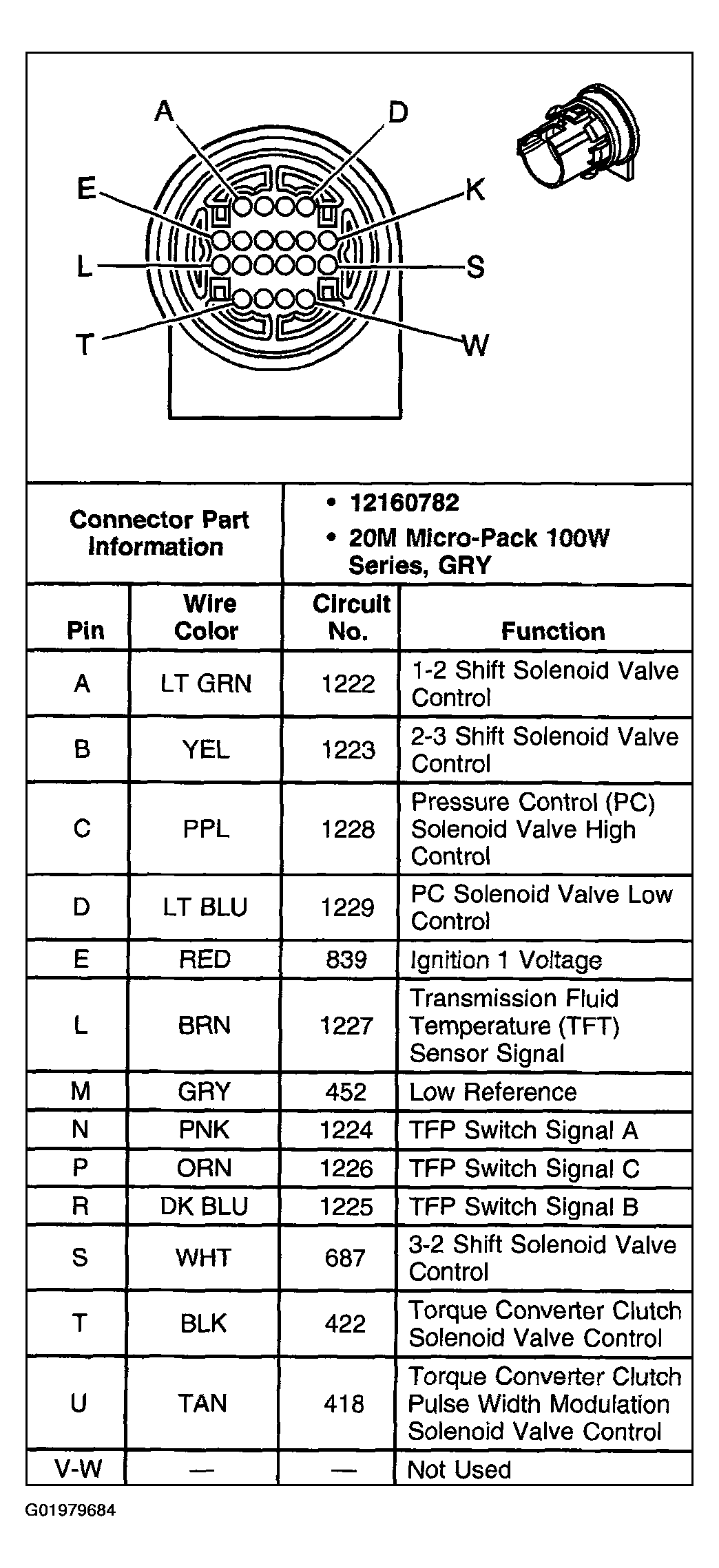

Fig 1: AT Inline 20-Way Connector End View, Transmission Side
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
