Schematic and Routing Diagrams

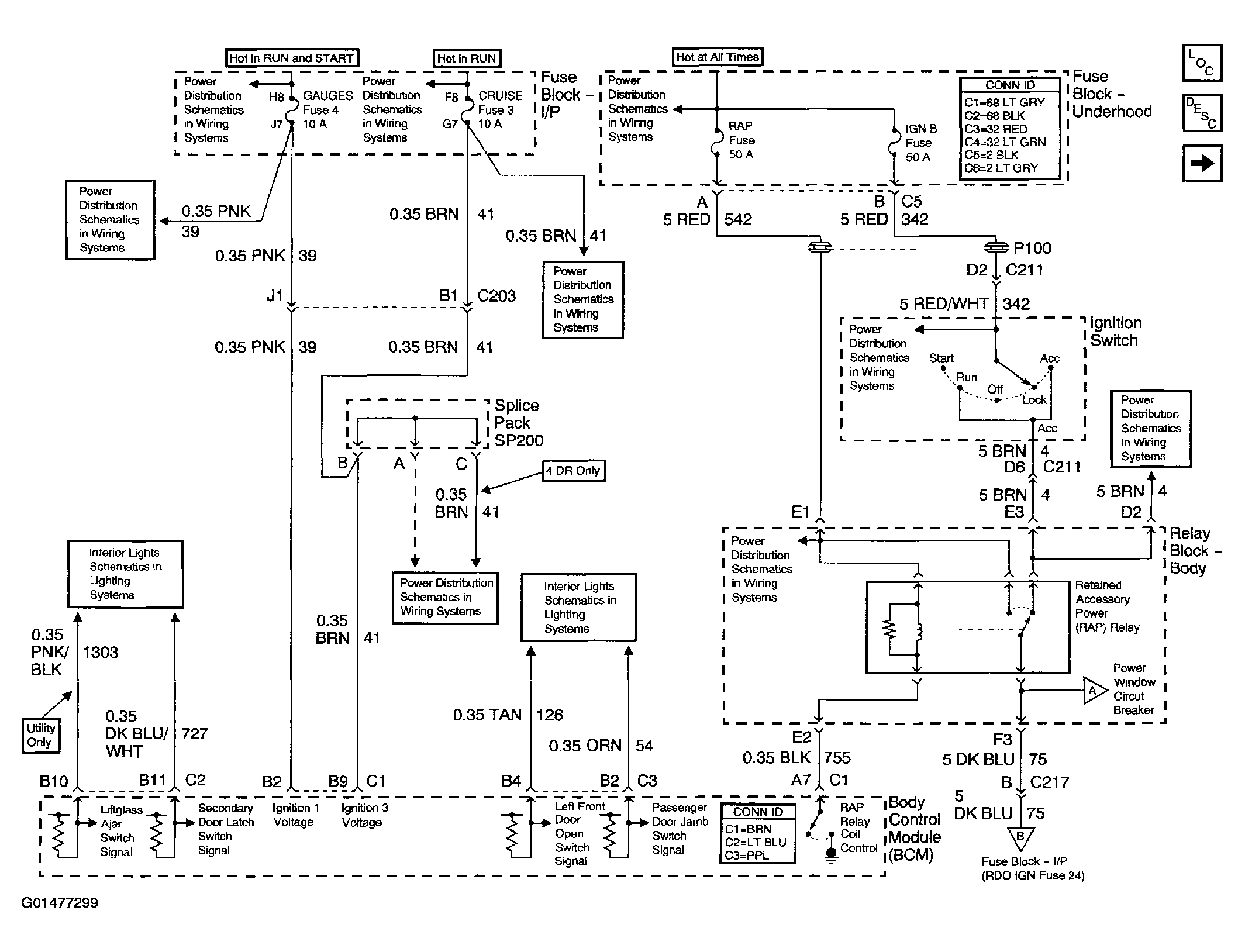

Fig 1: Retained Accessory Power (RAP) Schematics (RAP Relay & Ignition Switch)

Courtesy of GENERAL MOTORS CORP.

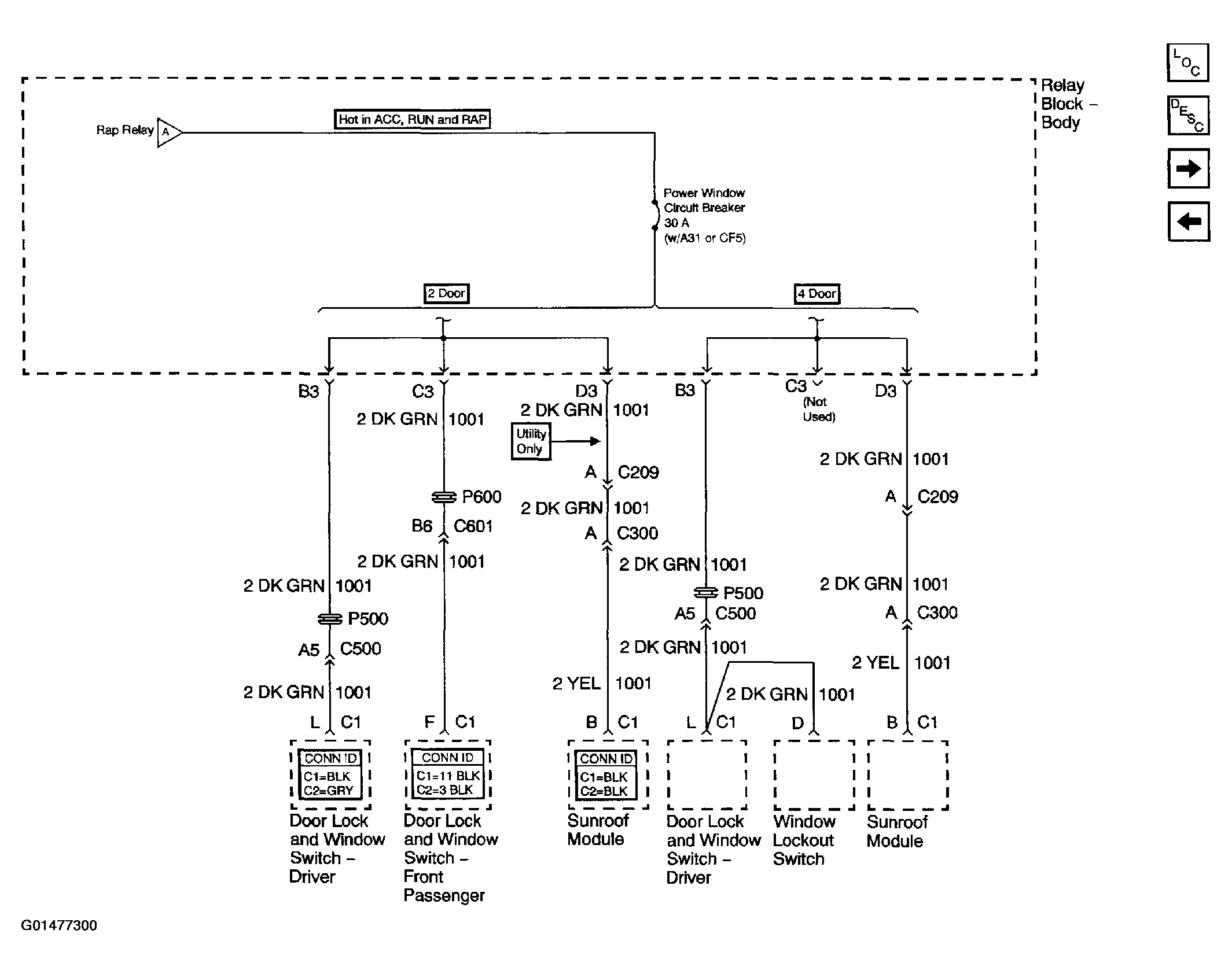

Fig 2: Retained Accessory Power (RAP) Schematics (Door Locks & Window Switches)

Courtesy of GENERAL MOTORS CORP.

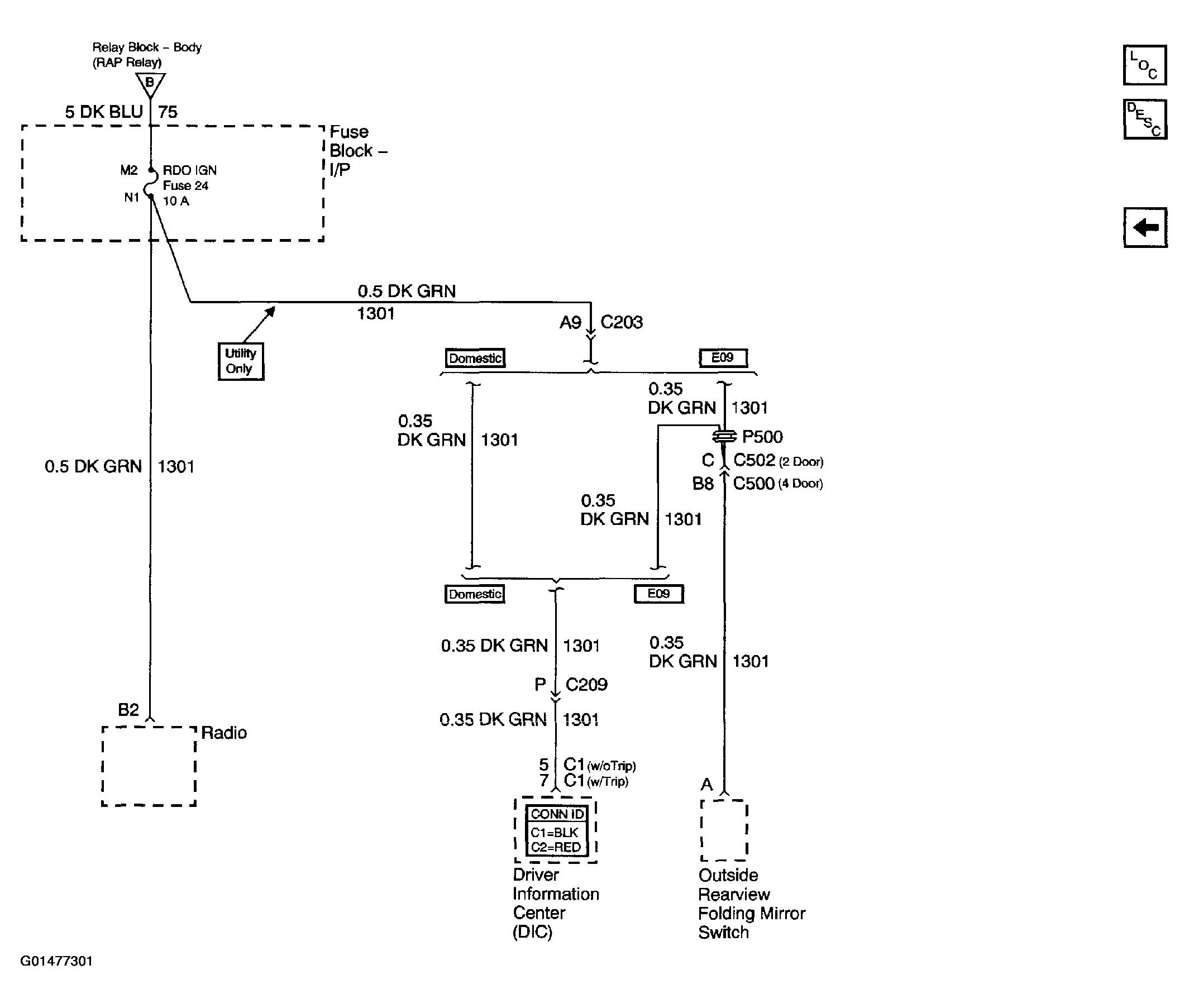

Fig 3: Retained Accessory Power (RAP) Schematics (RDO IGN Fuse)

Courtesy of GENERAL MOTORS CORP.
