Connector Identification
Connector Identification

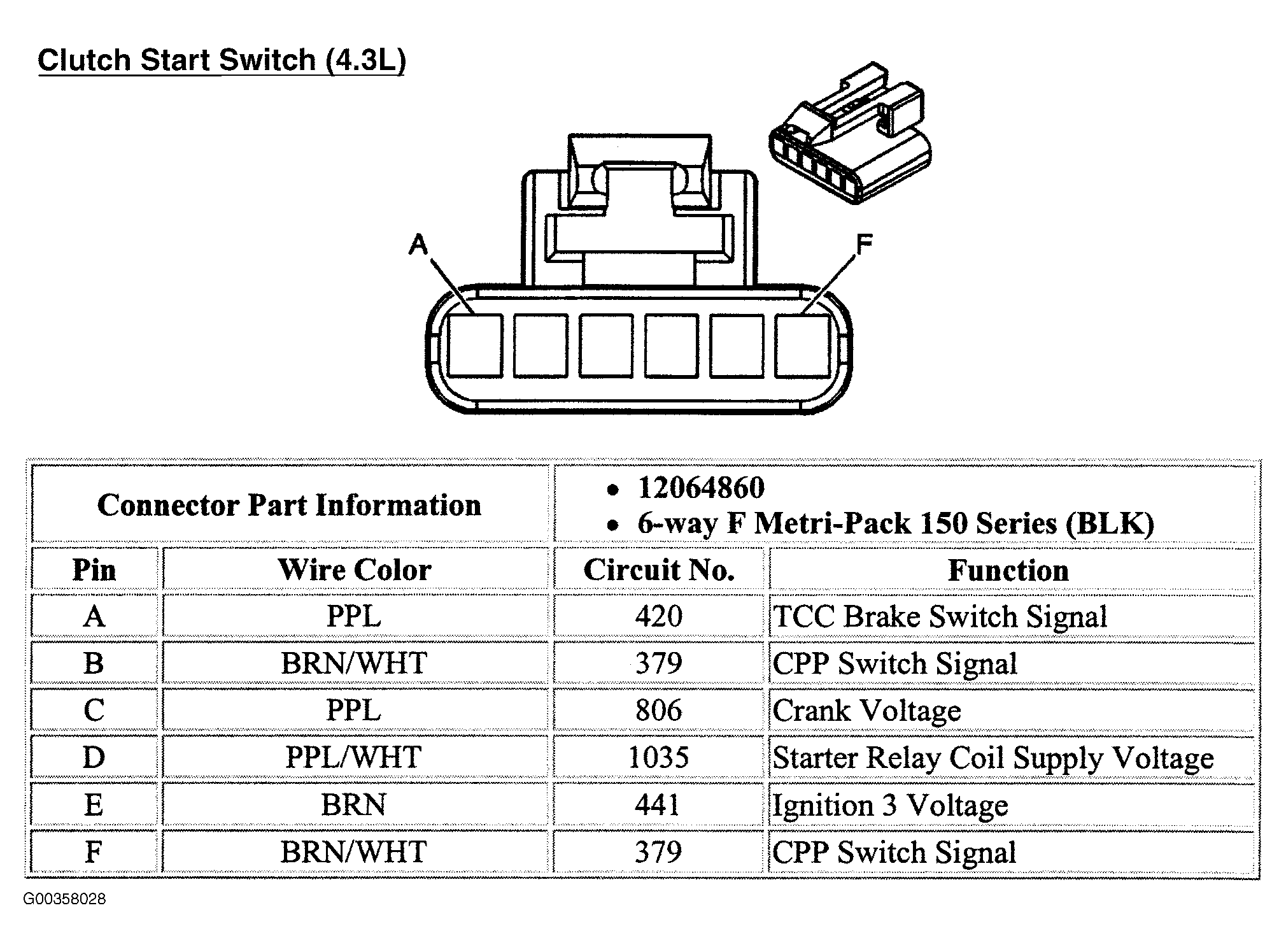

Fig 1: Identifying Clutch Start Switch Connector (4.3L)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
