Vehicle Speed Sensor (VSS) Connector End View

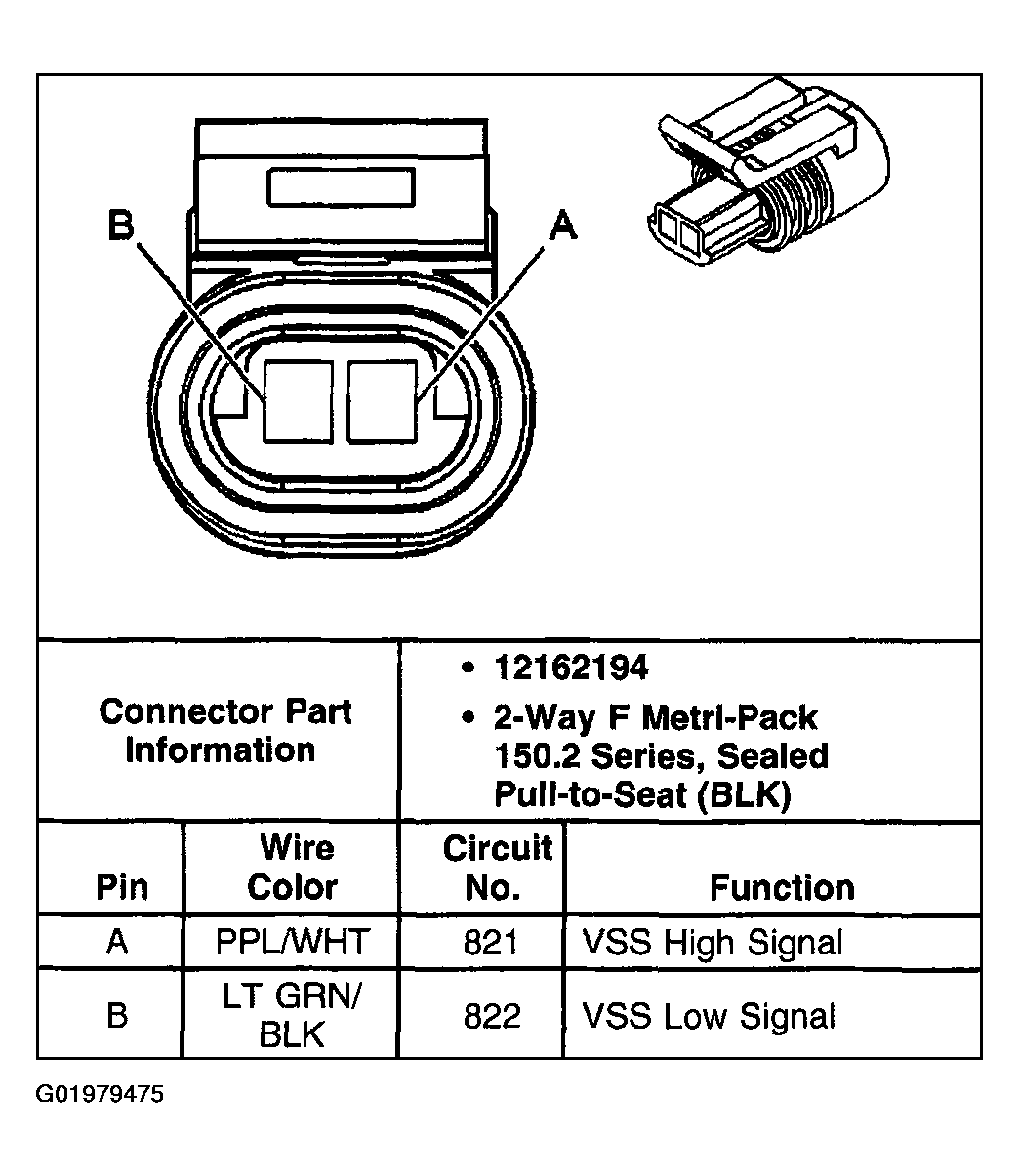

Fig 1: Vehicle Speed Sensor (VSS) Connector End View
G01979475Courtesy of GENERAL MOTORS CORP.

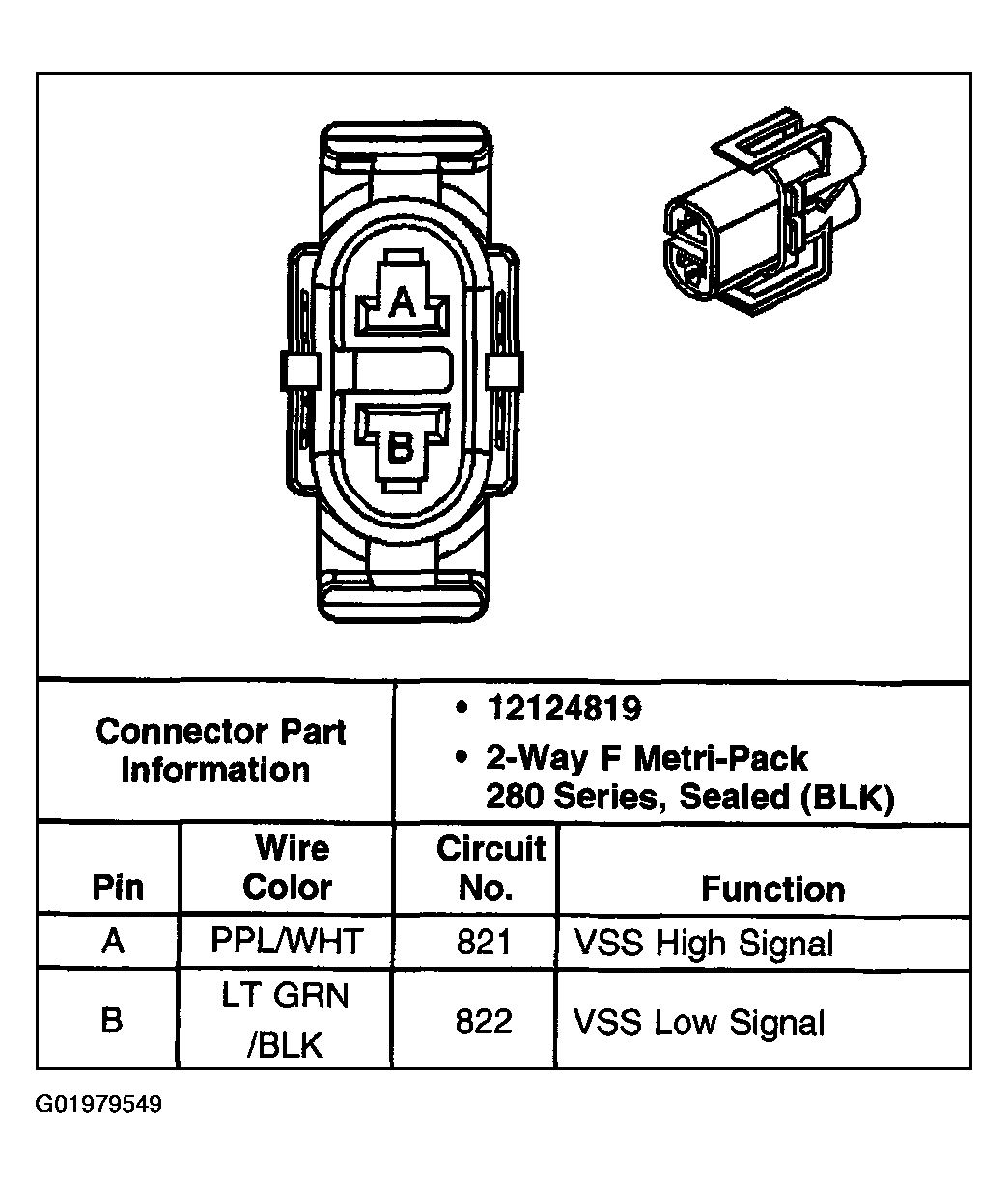

Fig 1: Vehicle Speed Sensor (VSS) Connector End View
G01979549Courtesy of GENERAL MOTORS CORP.
