Power Steering Gear Disassembled View (700 Gear)
Power Steering Gear Disassembled View (700 Gear)

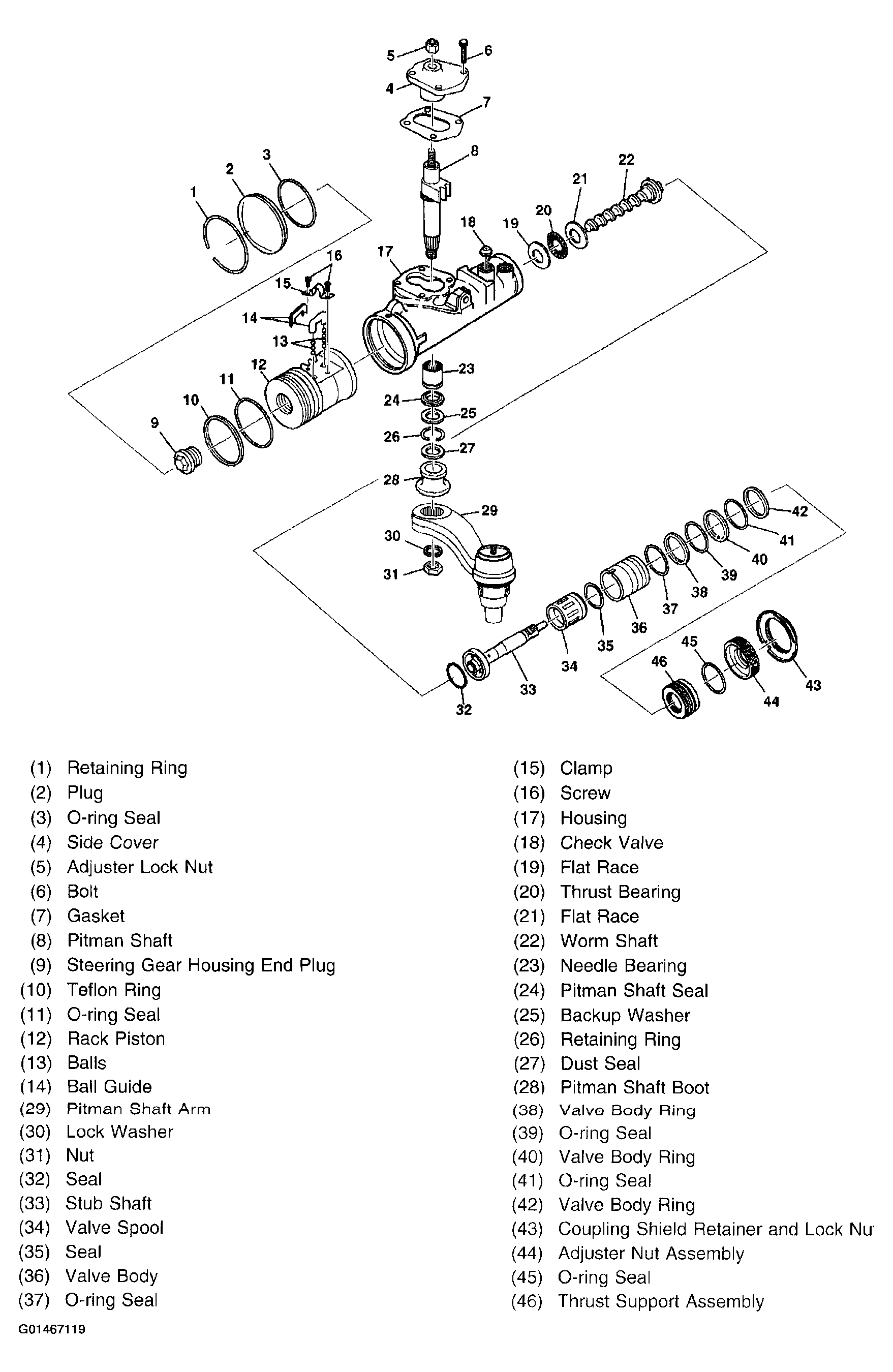

Fig 1: Power Steering Gear
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
