Power Steering Pump Disassembled View (P Series)

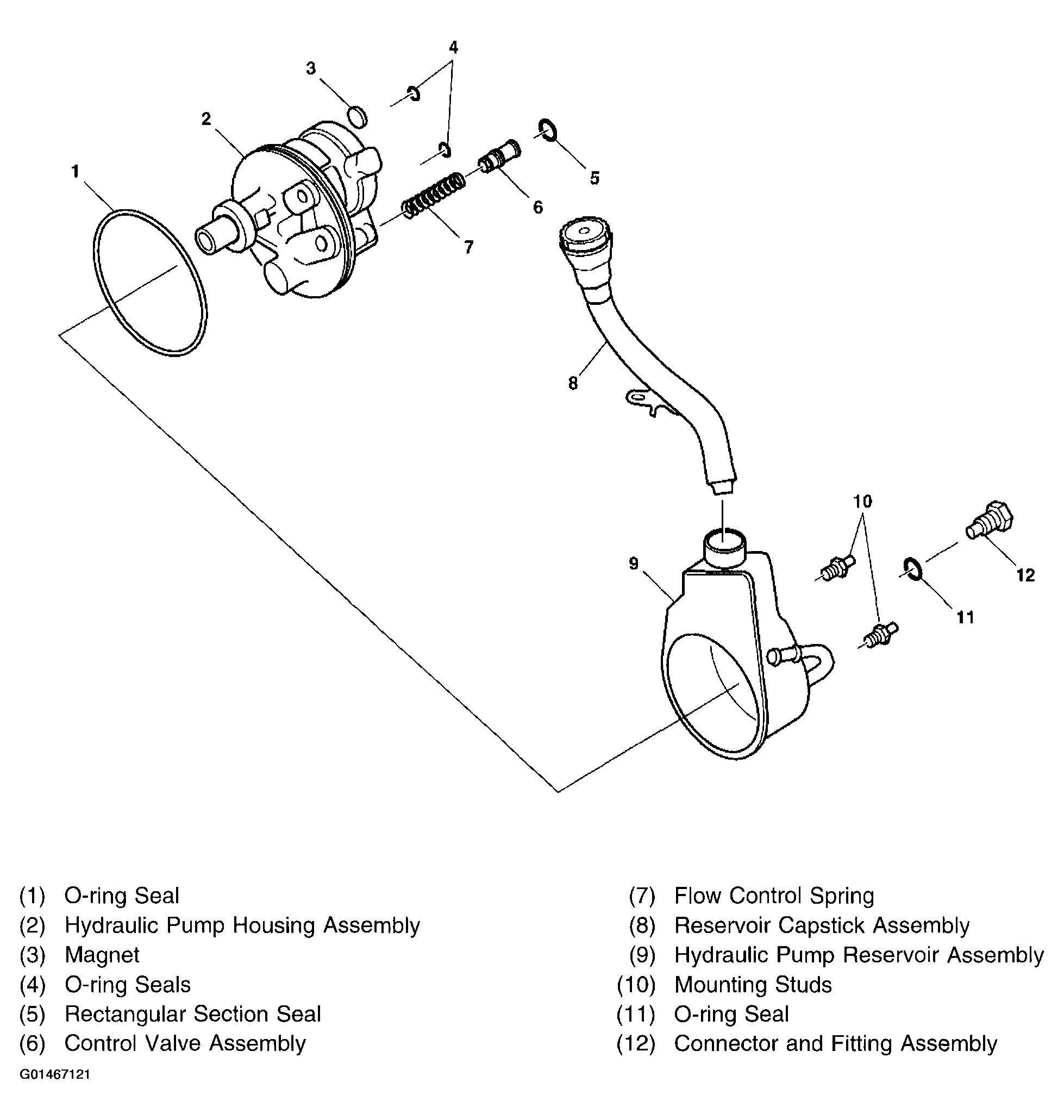

Fig 1: S/T Truck Power Steering Pump Reservoir
G01467121Courtesy of GENERAL MOTORS CORP.
