Removal Procedure

  1. Remove the upper fan shroud. Refer to FAN SHROUD REPLACEMENT in Engine Cooling.
  2. Place a drain pan below the pump.
  3. Remove the power steering hoses from the pump.
  4. Cap the power steering hoses.
  5. Remove the drive belt. Refer to DRIVE BELT REPLACEMENT in Engine Mechanical 2.2L.
  6. Remove the power steering pump pulley. Refer to POWER STEERING PULLEY REPLACEMENT .

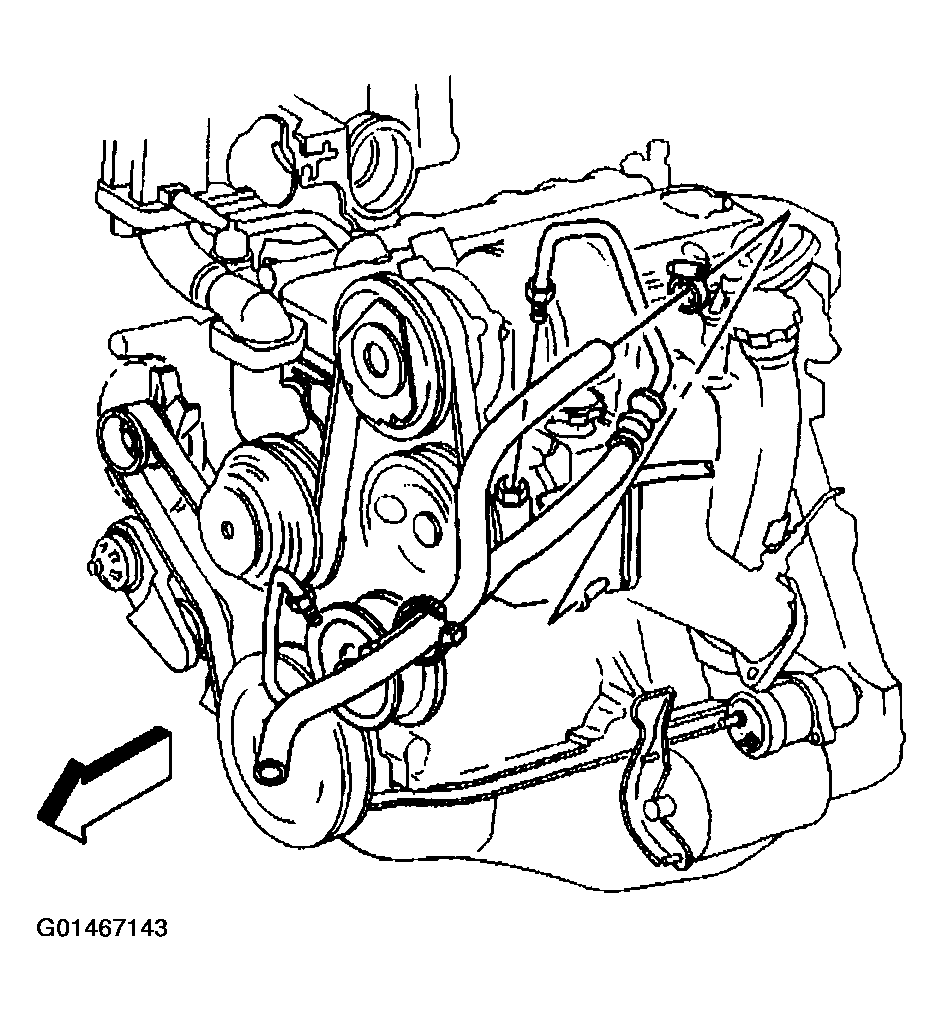

    Fig 1: Removing Power Steering Hoses From Pump
    G01467143Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the A/C compressor electrical connection.

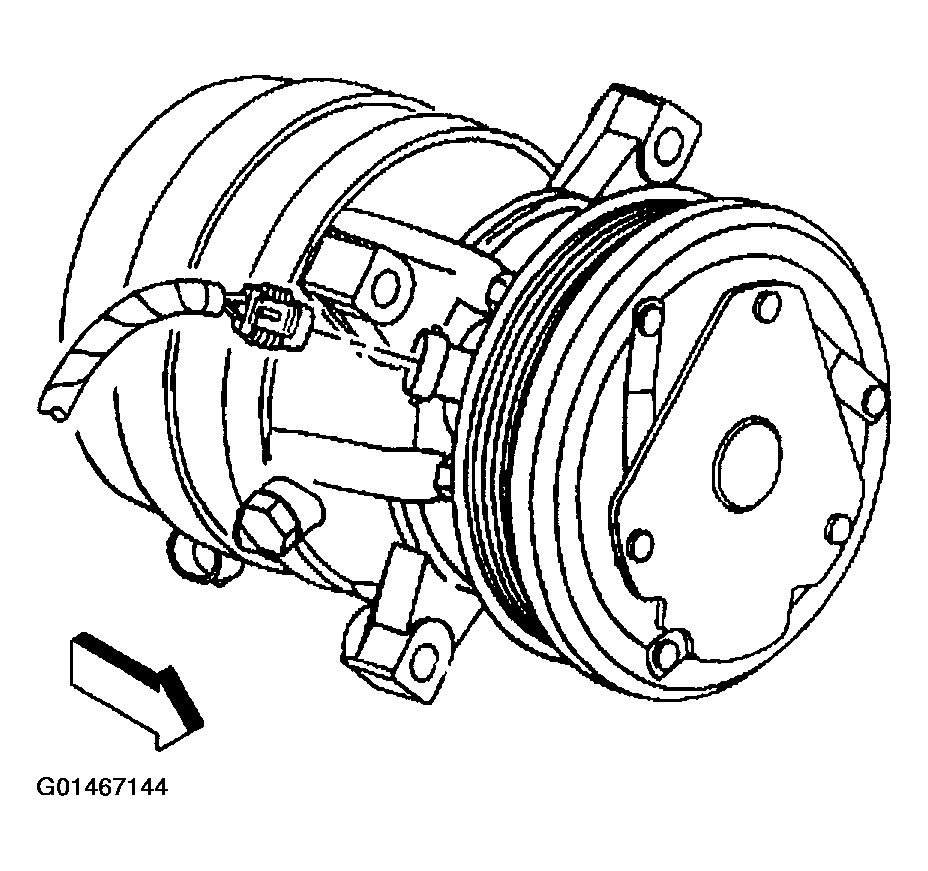

    Fig 2: Disconnecting A/C Compressor Electrical Connection
    G01467144Courtesy of GENERAL MOTORS CORP.
  8. Remove the A/C compressor mounting bolts.
  9. Remove the A/C compressor rear bracket mounting bolts.
  10. Remove the A/C compressor from the brackets and set aside.

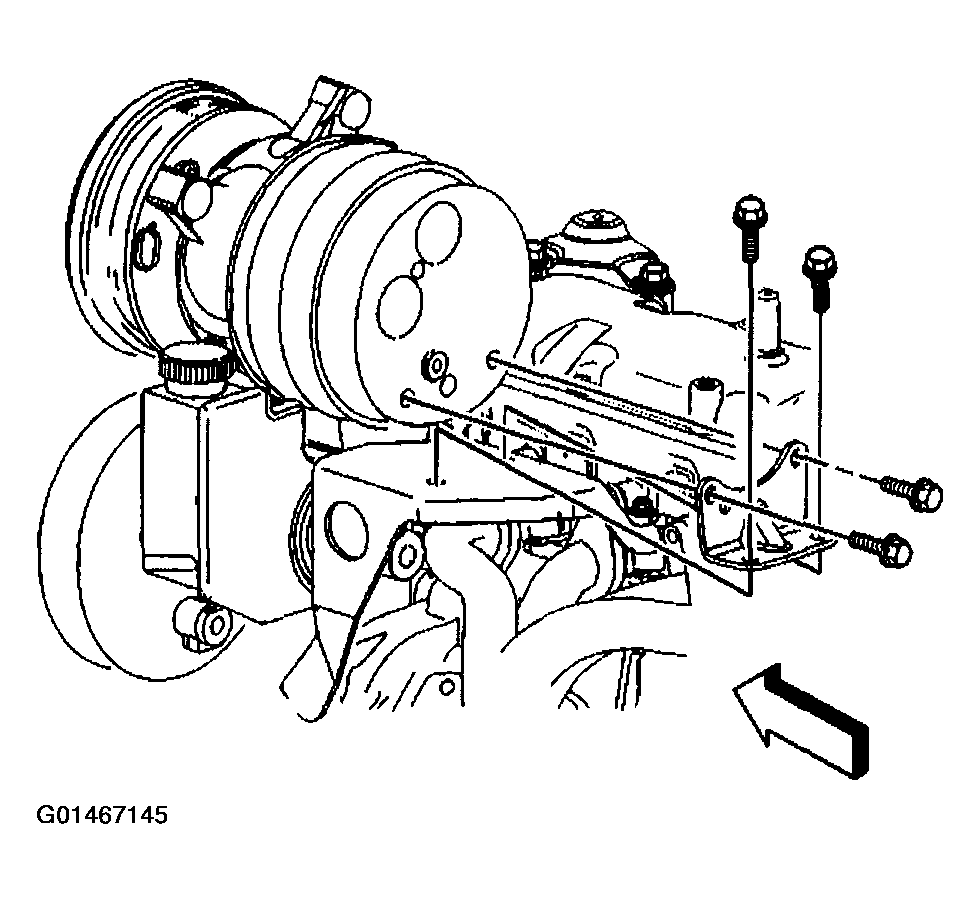

    Fig 3: A/C Compressor Rear Bracket Mounting Bolts
    G01467145Courtesy of GENERAL MOTORS CORP.
  11. Remove the power steering pump front mounting bolts.
  12. Remove the power steering pump rear mounting bracket nuts from the engine studs.
  13. Remove the power steering pump rear mounting bracket bolt.
  14. Remove the power steering pump.

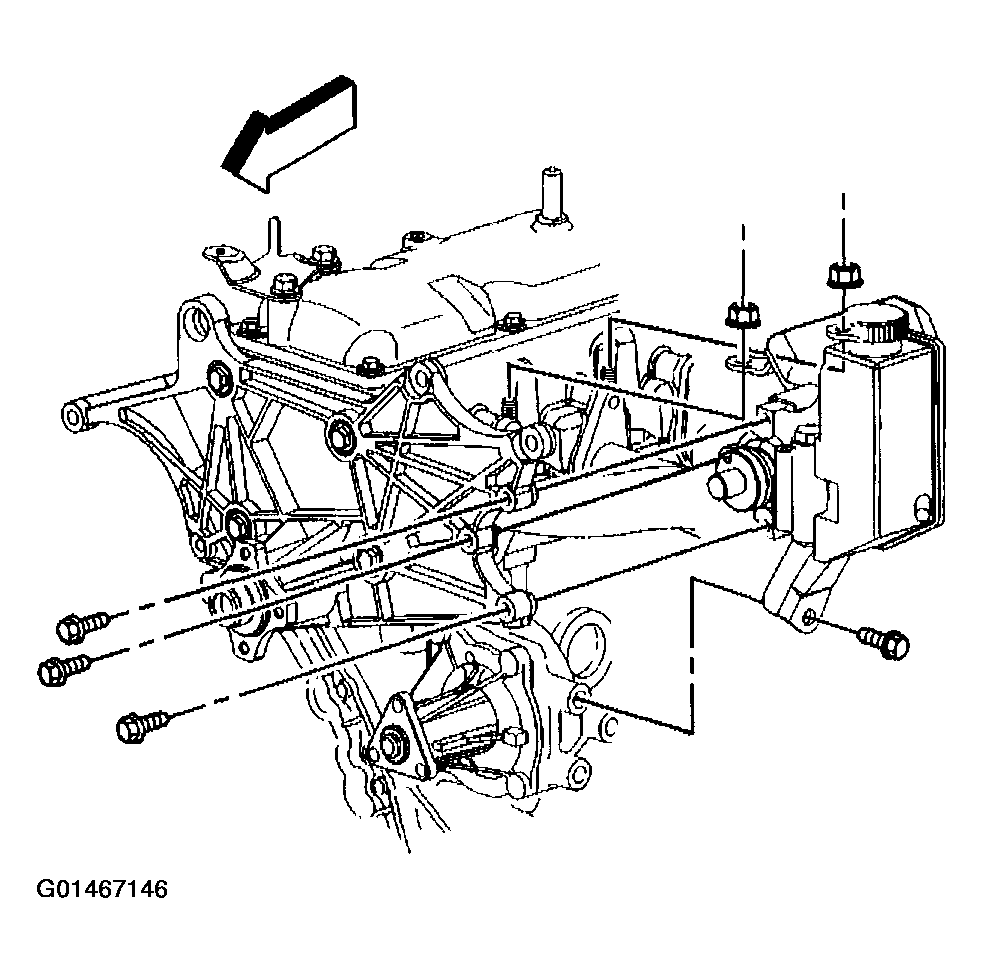

Fig 4: Removing Power Steering Pump Rear Mounting Bracket Nuts From Engine Studs
G01467146Courtesy of GENERAL MOTORS CORP.
