Fuse Block Underhood Connector End View C3

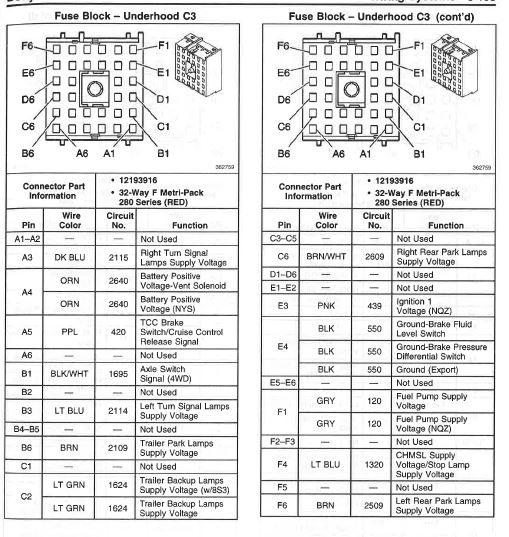

Fig 1: Fuse Block Underhood Connector End View C3
G00565926Courtesy of GENERAL MOTORS CORP.
