Vehicle Speed Sensor Assembly Connector End View, Wiring Harness Side
Vehicle Speed Sensor Assembly Connector End View, Wiring Harness Side

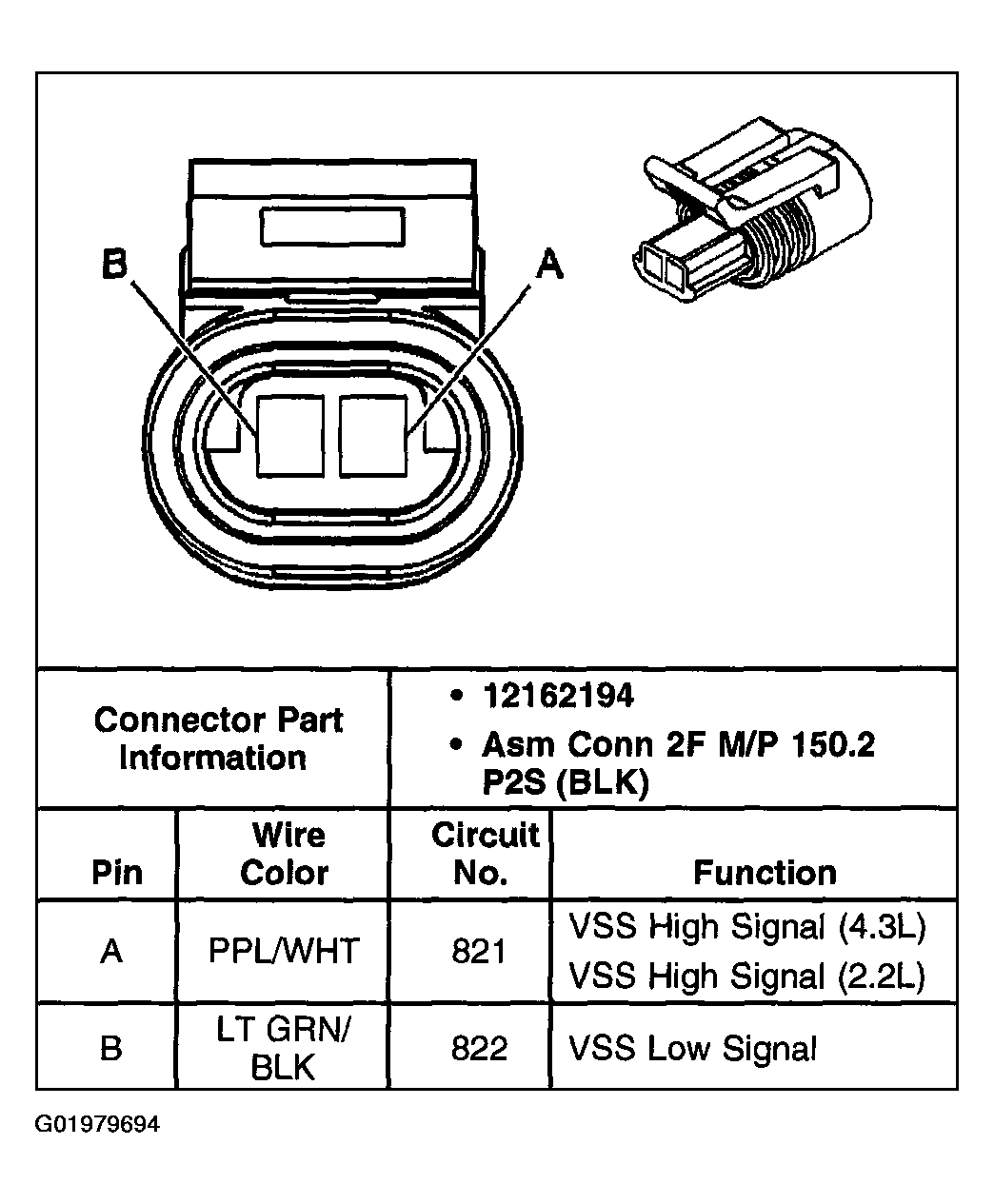

Fig 1: Vehicle Speed Sensor Assembly Connector End View, Wiring Harness Side
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
