Power Steering Pump Disassembled View (CB Series)

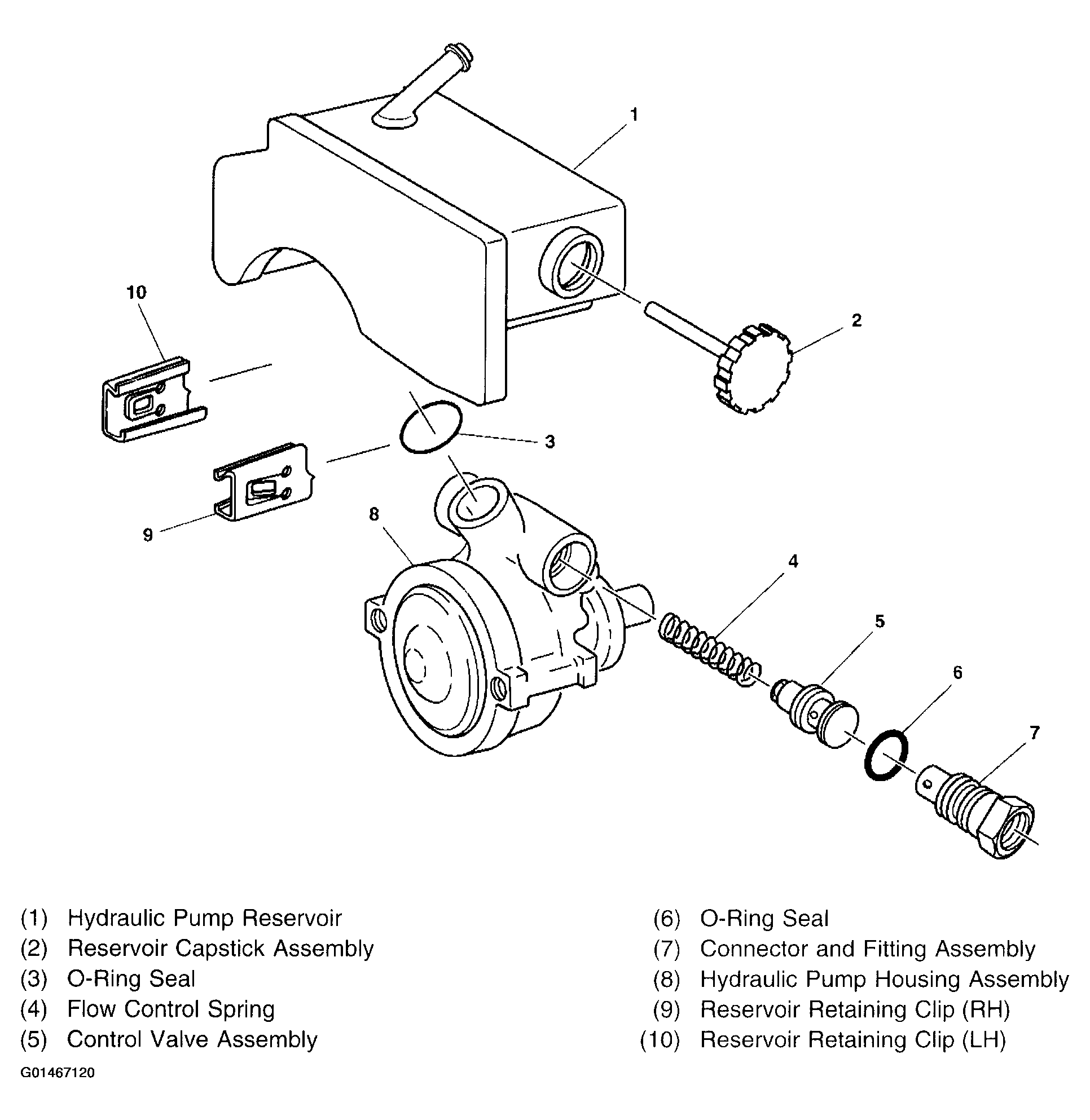

Fig 1: S/T Truck CB Series Power Steering Pump Reservoir
G01467120Courtesy of GENERAL MOTORS CORP.
