Removal Procedure

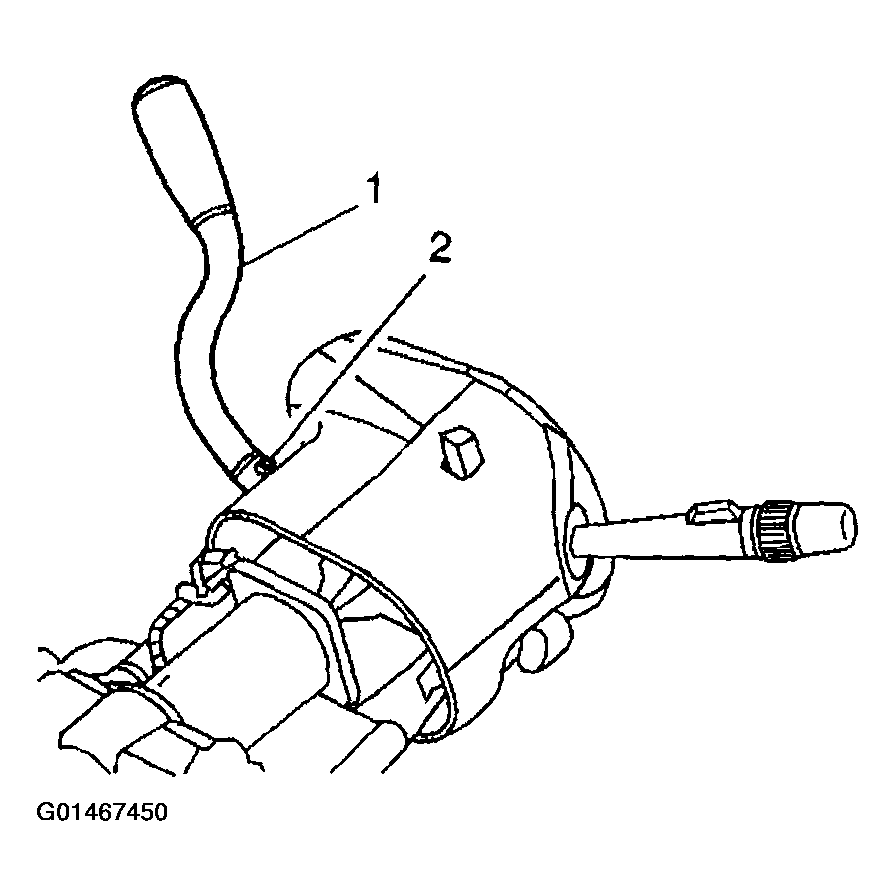

- Pull the shift lever seal away from the upper steering column trim cover.
- Remove the screw (2) that retains the shift lever to the steering column.
- Remove the shift lever (1) from the steering column.
Courtesy of GENERAL MOTORS CORP.
