Transfer Case Disassembled View

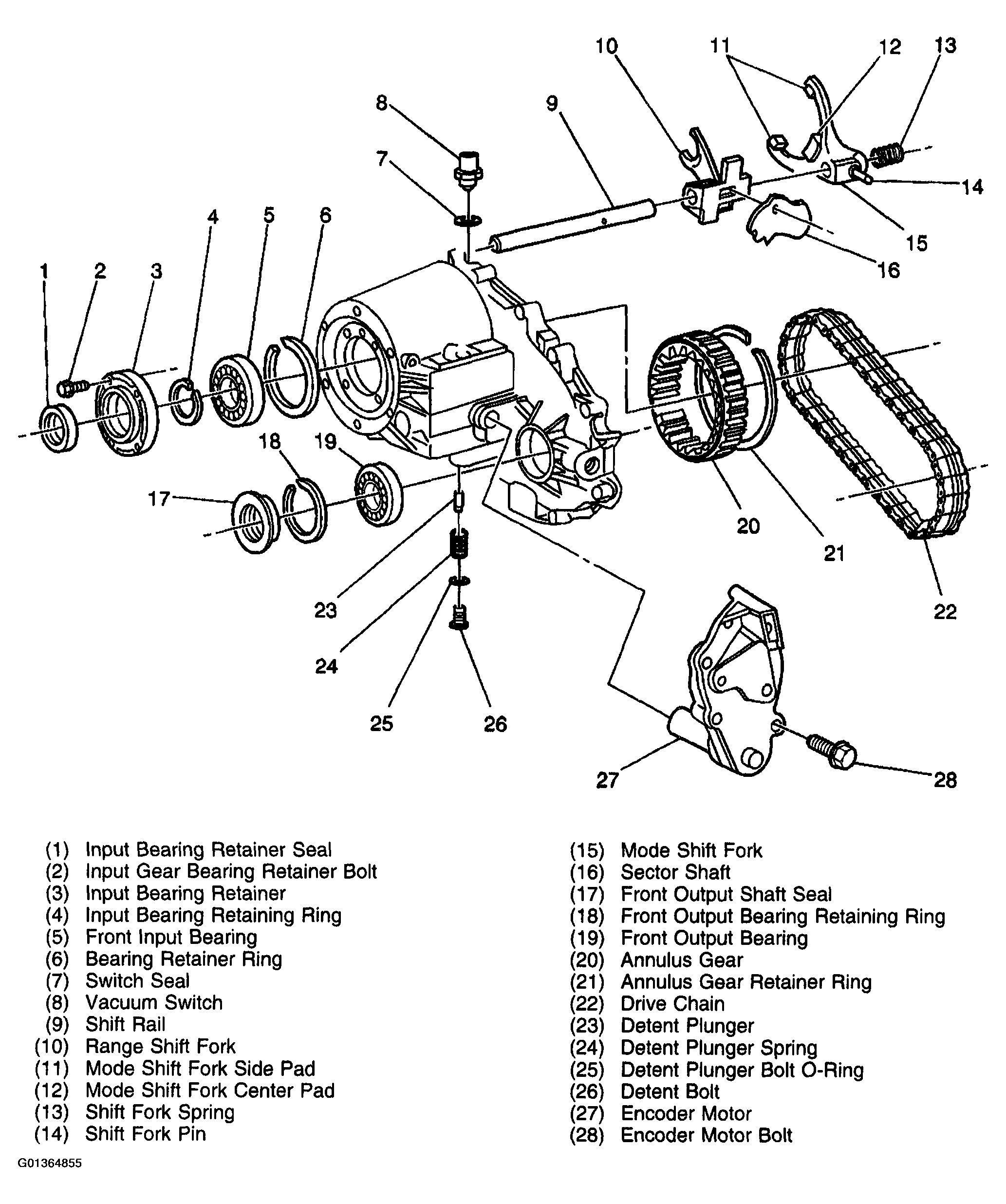

Fig 1: Case Components Disassembled View
G01364855Courtesy of GENERAL MOTORS CORP.

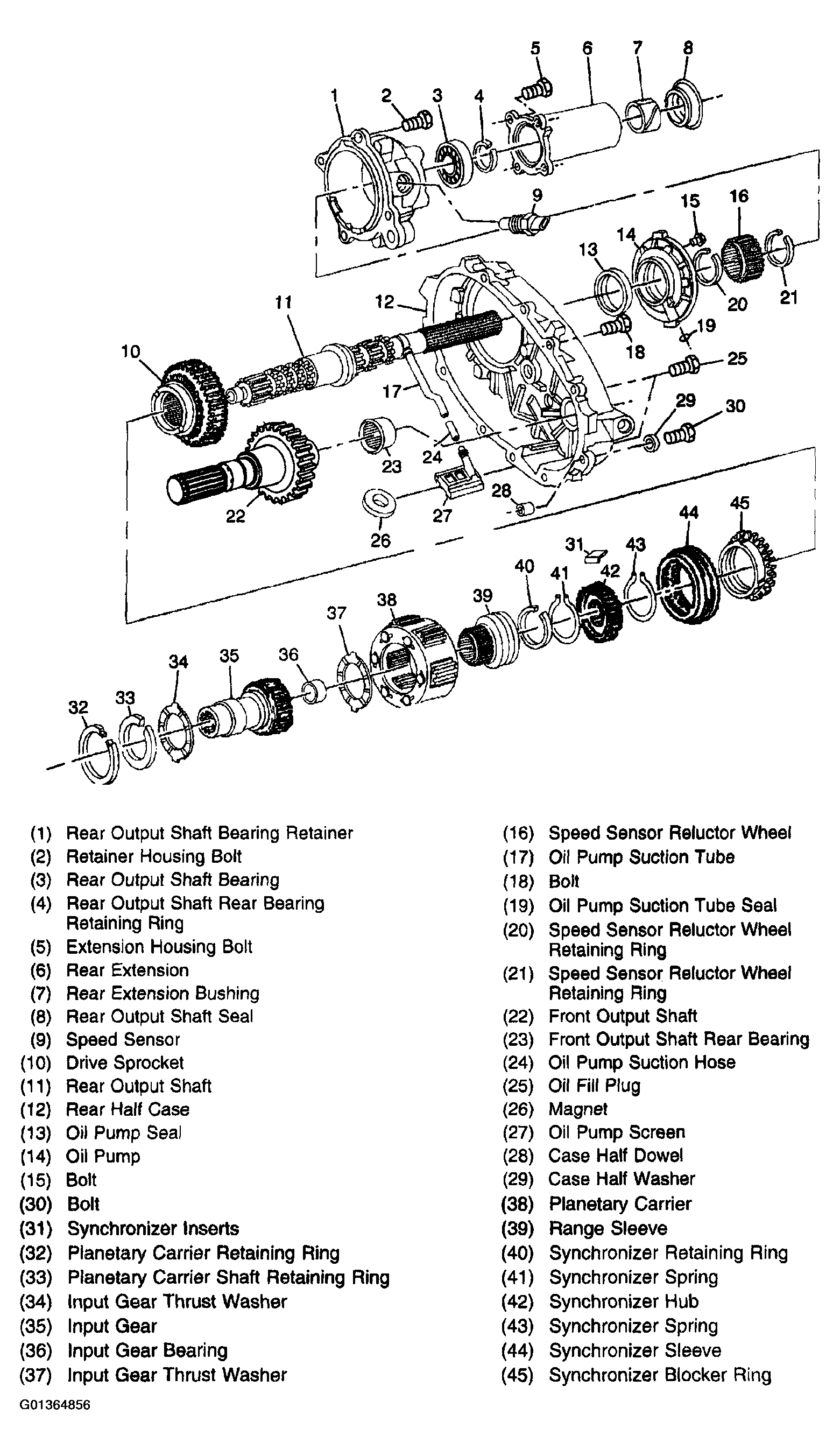

Fig 2: Rear Case And Drivetrain Components Disassembled View
G01364856Courtesy of GENERAL MOTORS CORP.
