Horns Component Views

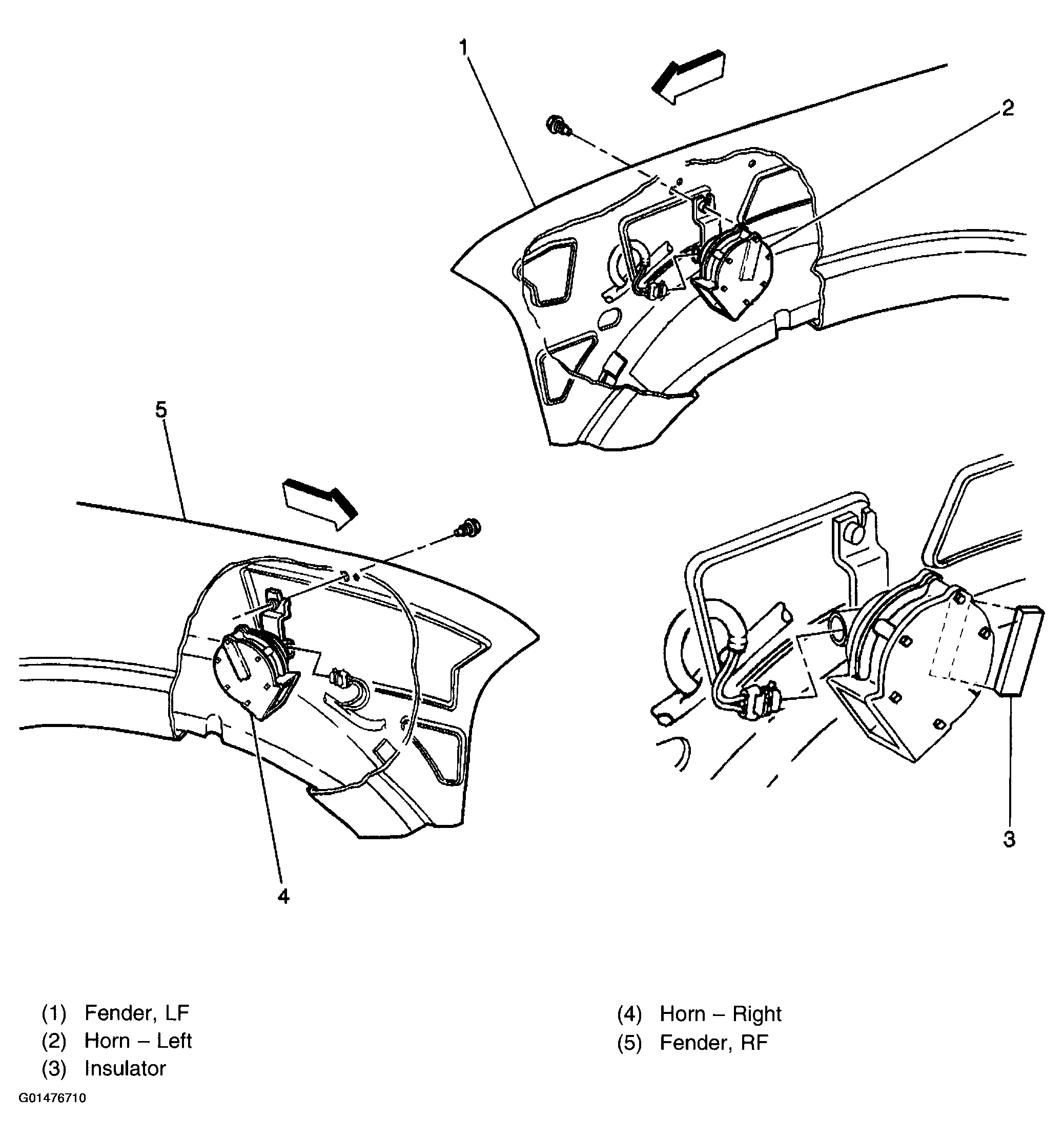

Fig 1: Horns
G01476710Courtesy of GENERAL MOTORS CORP.

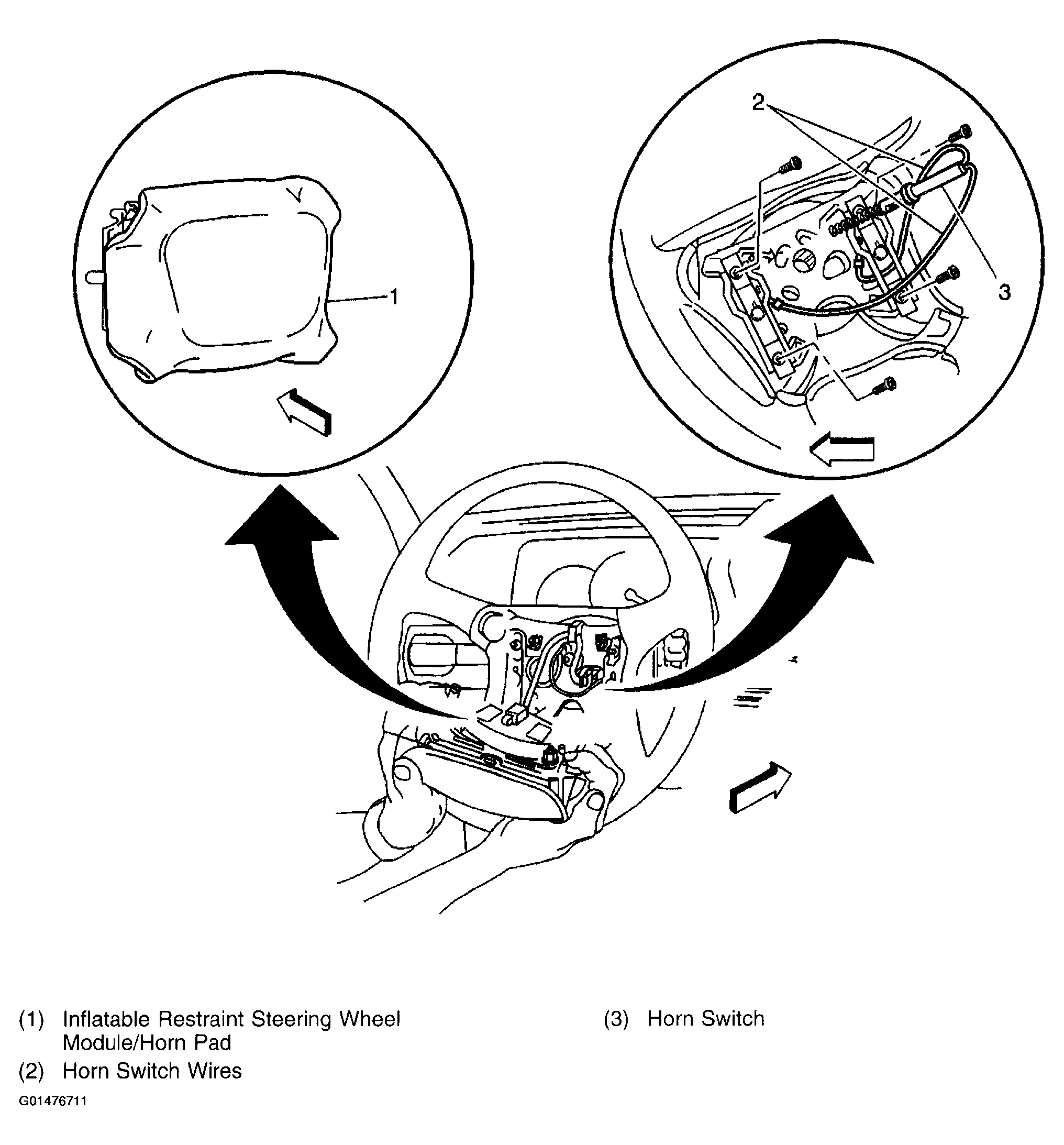

Fig 2: Inflatable Restraint Steering Wheel Module/Horn Pad
G01476711Courtesy of GENERAL MOTORS CORP.
