Installation Procedure

Install the lower door striker to the vehicle.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the bolts retaining the lower door striker.
Tighten

Tighten the bolts to 10 N.m (89 Ib. in).

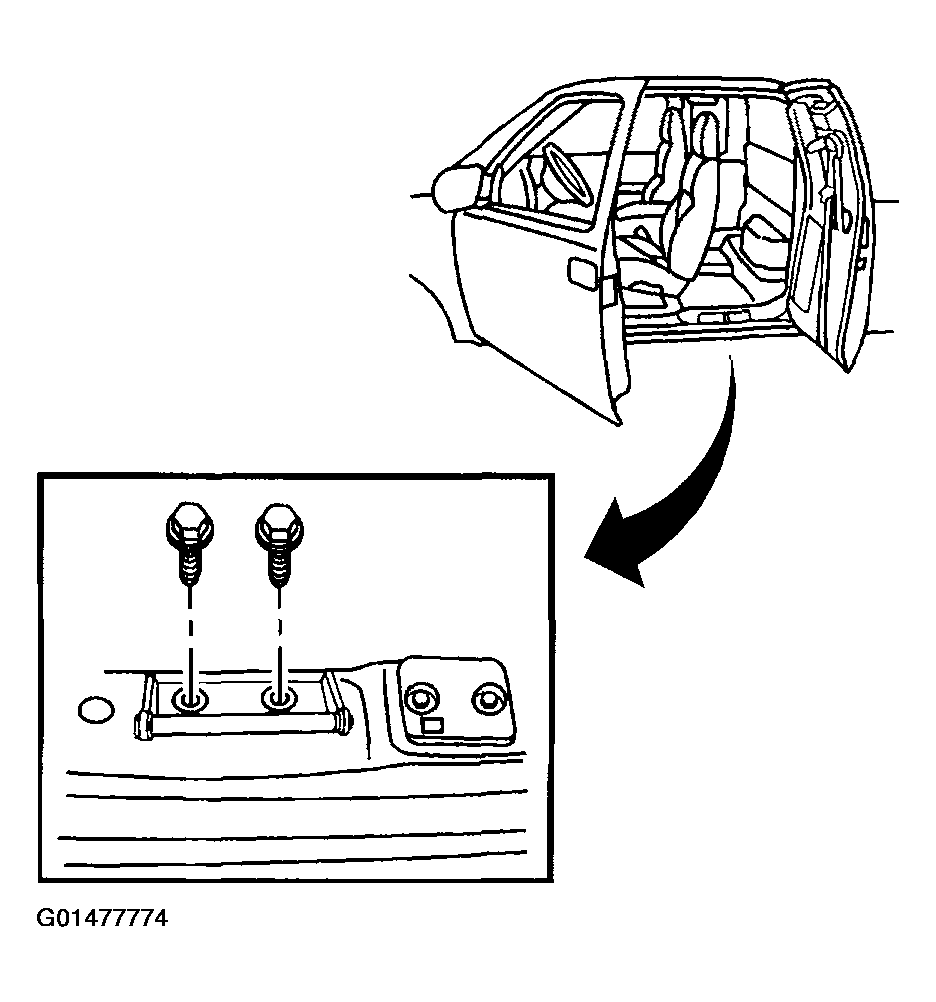

Fig 1: Installing Lower Door Striker To Vehicle
Courtesy of GENERAL MOTORS CORP.
