O2S Bank 1; Sensor 1 Harness Connector End View Terminals
O2S Bank 1; Sensor 1 Harness Connector End View Terminals

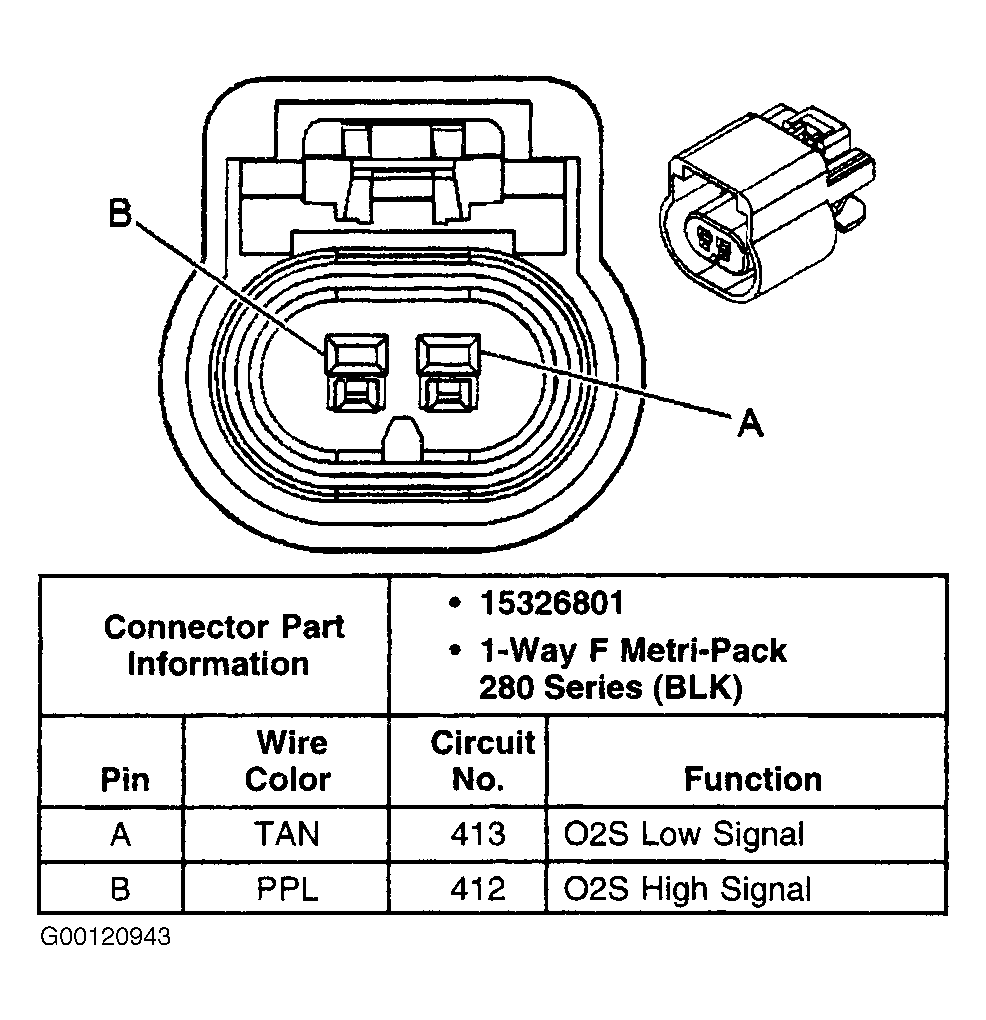

Fig 1: O2S Bank 1; Sensor 1 Harness Connector End View Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
