Propshaft Speed Sensor - Rear Connector End View
Propshaft Speed Sensor - Rear Connector End View

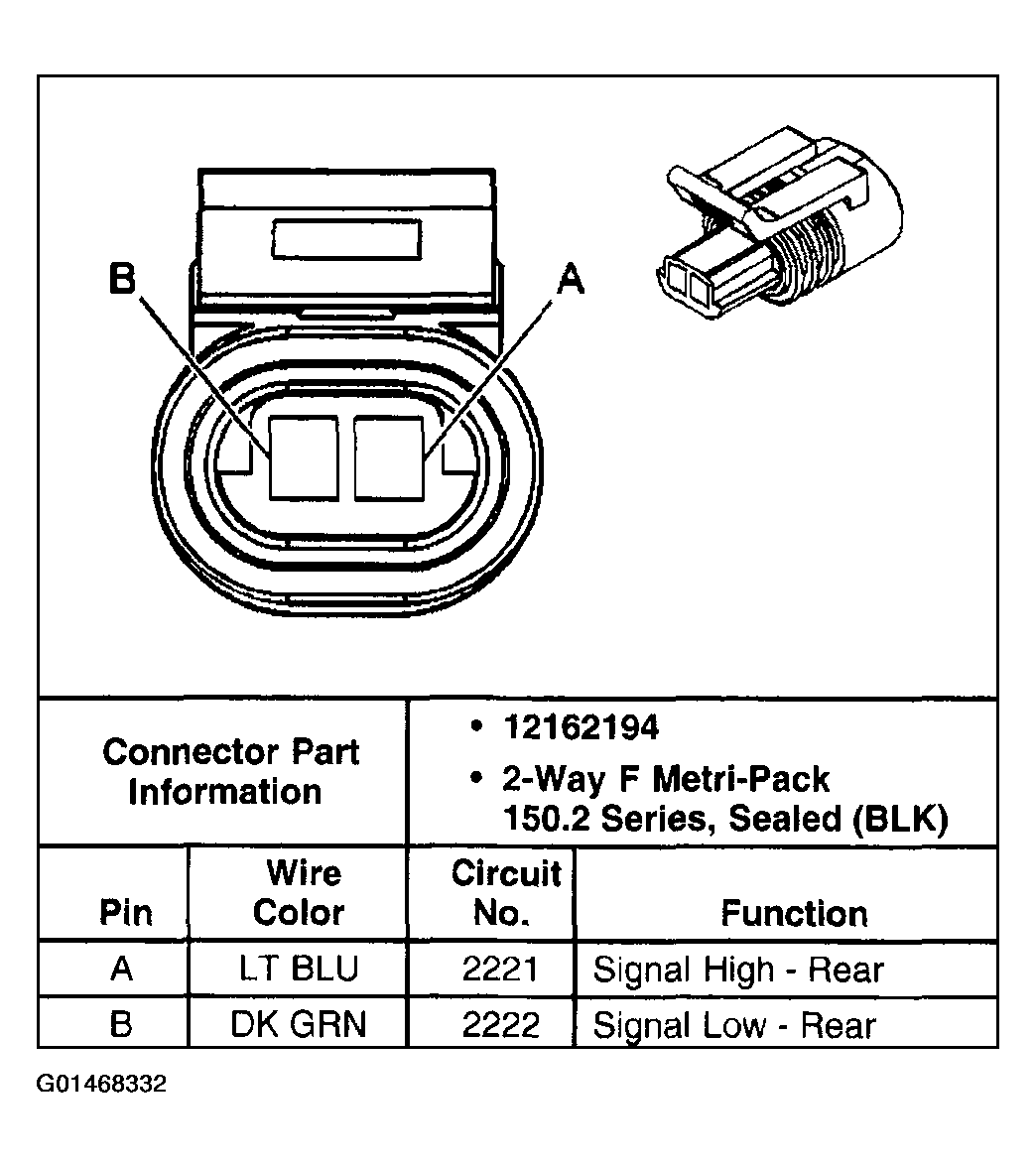

Fig 1: Propshaft Speed Sensor - Rear Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
