Transfer Case Shift Control Module C1 Connector End View (1 Of 2)

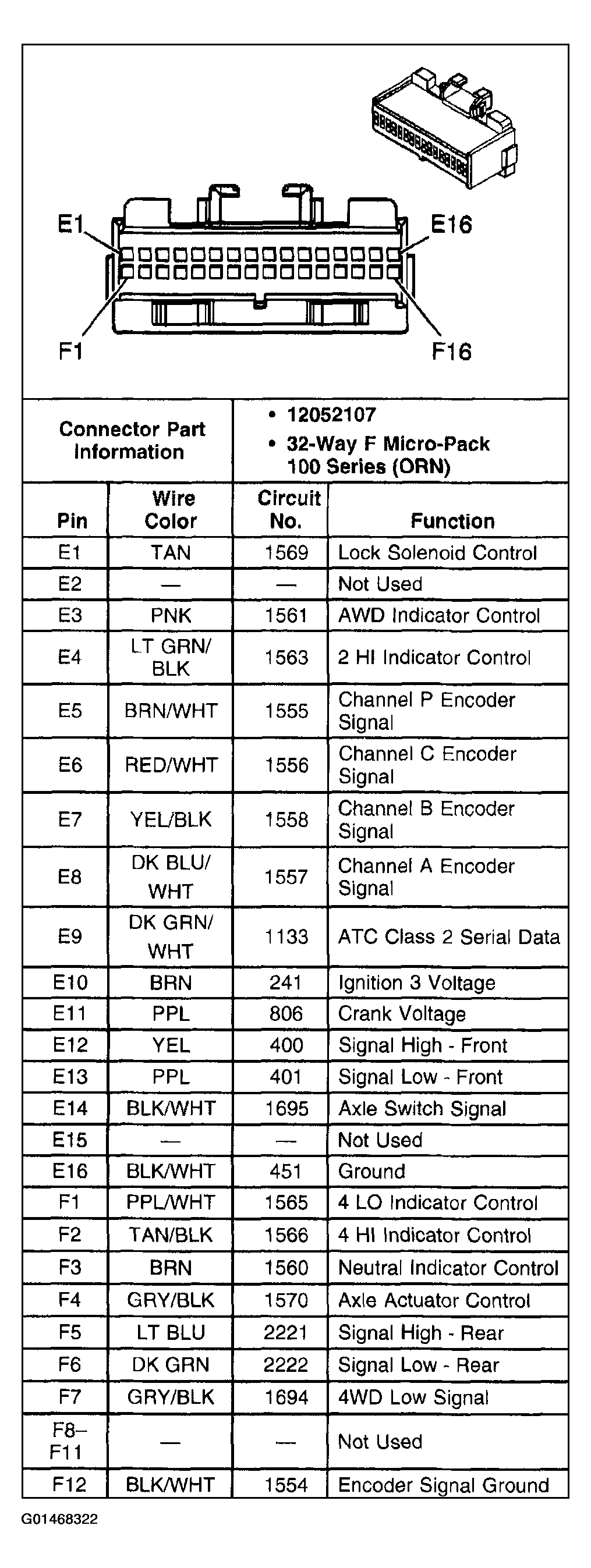

Fig 1: Transfer Case Shift Control Module C1 Connector End View (1 Of 2)
G01468322Courtesy of GENERAL MOTORS CORP.
