Transfer Case Shift Control Module Connector End View (2 Of 2)

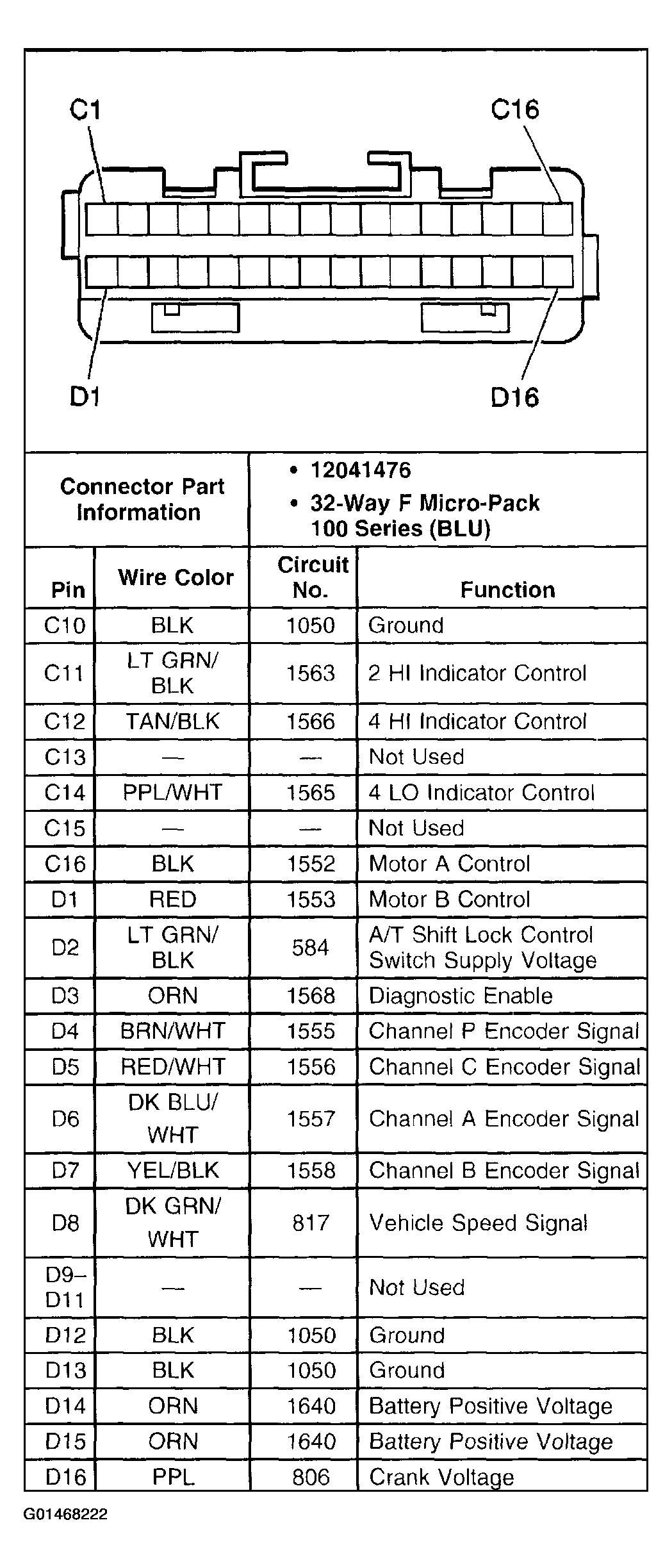

Fig 1: Transfer Case Shift Control Module Connector End View (2 Of 2)
G01468222Courtesy of GENERAL MOTORS CORP.
