ABS Component Views

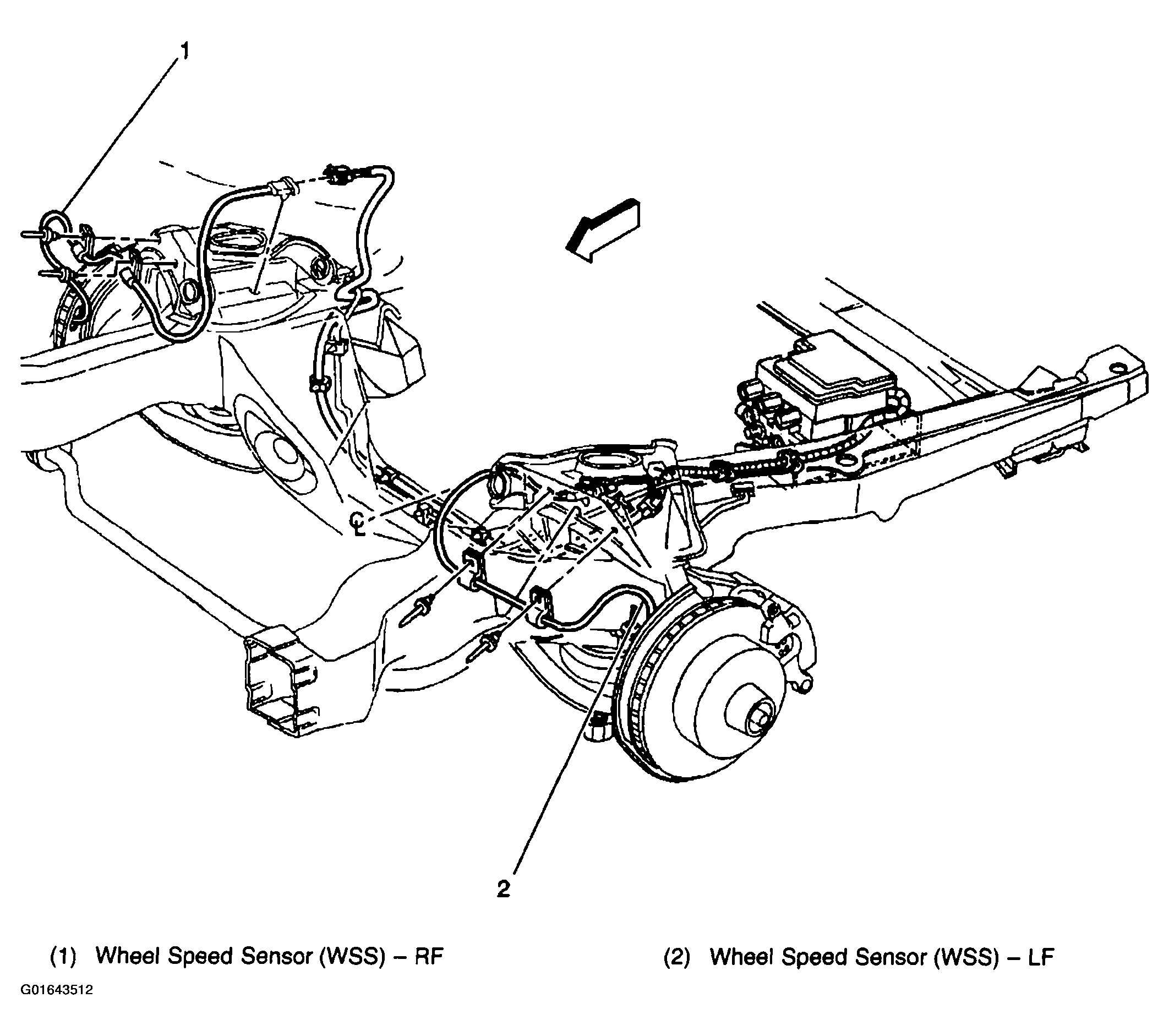

Fig 1: Anti-Lock Brake System Wiring
G01643512Courtesy of GENERAL MOTORS CORP.

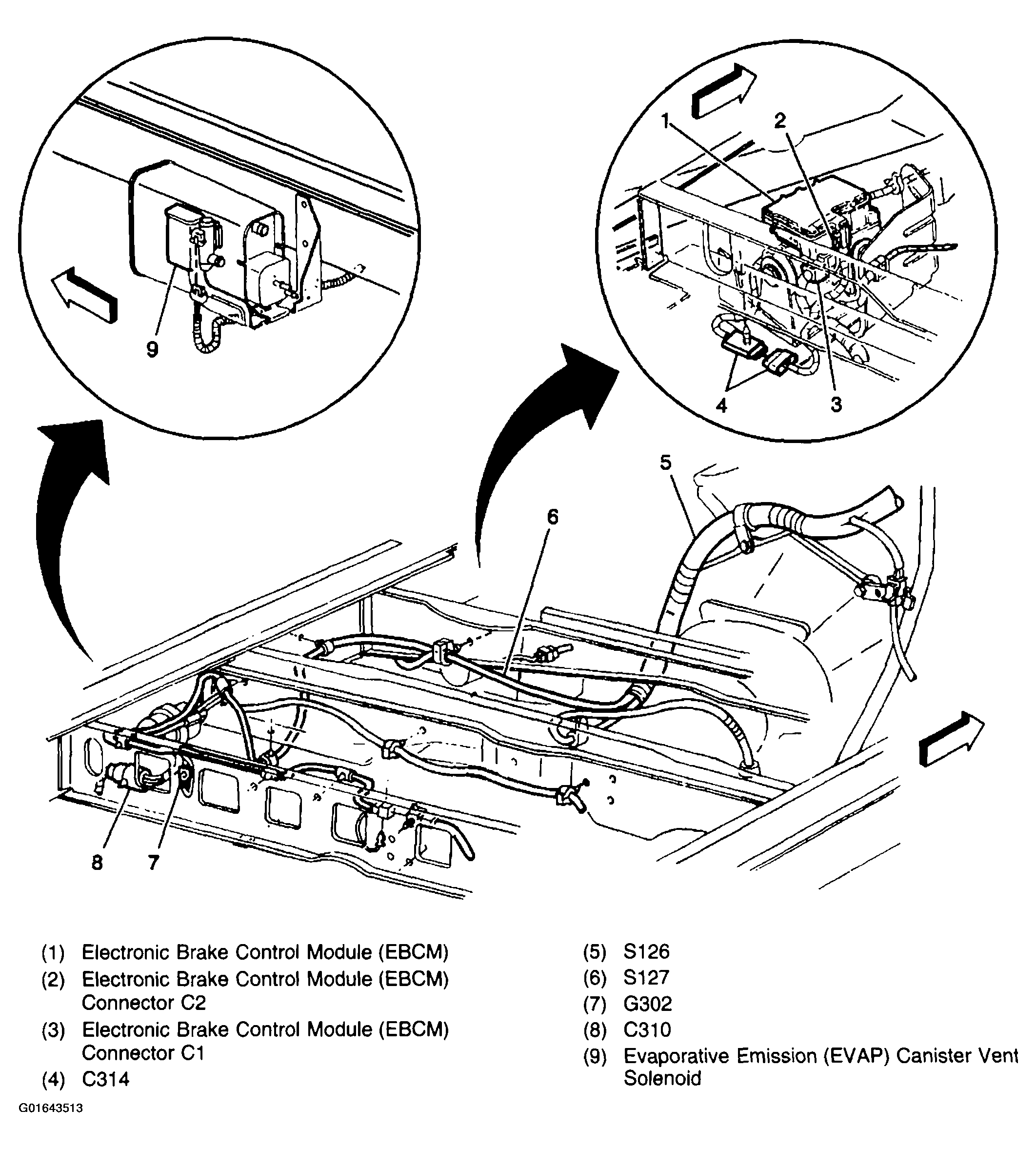

Fig 2: Undercarriage Wiring
G01643513Courtesy of GENERAL MOTORS CORP.
