ABS Connector End Views

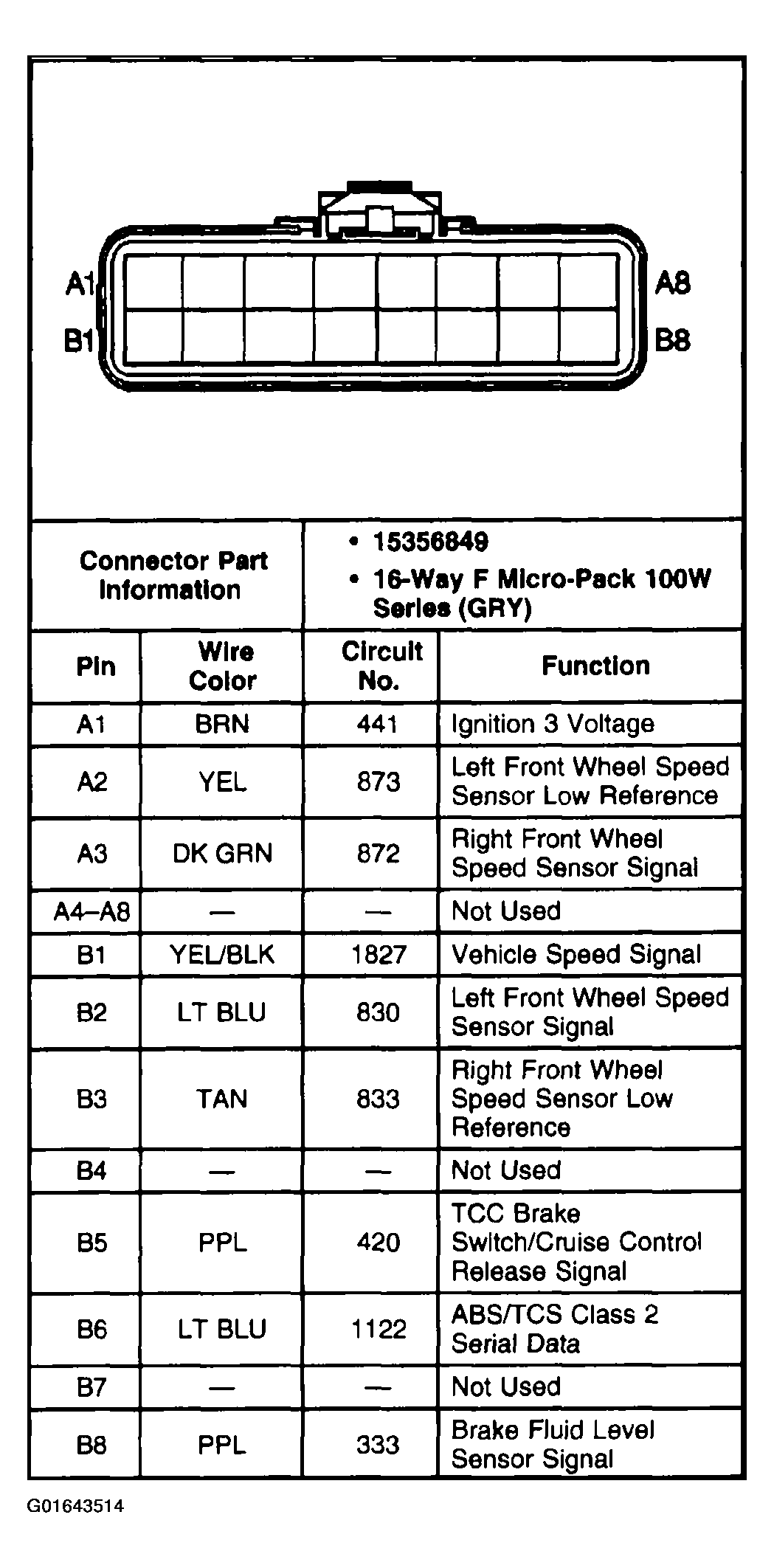

Fig 1: Identifying Electronic Brake Control Module (EBCM) Connector C1 Terminals
G01643514Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Electronic Brake Control Module (EBCM) Connector C2 Terminals
G01643515Courtesy of GENERAL MOTORS CORP.

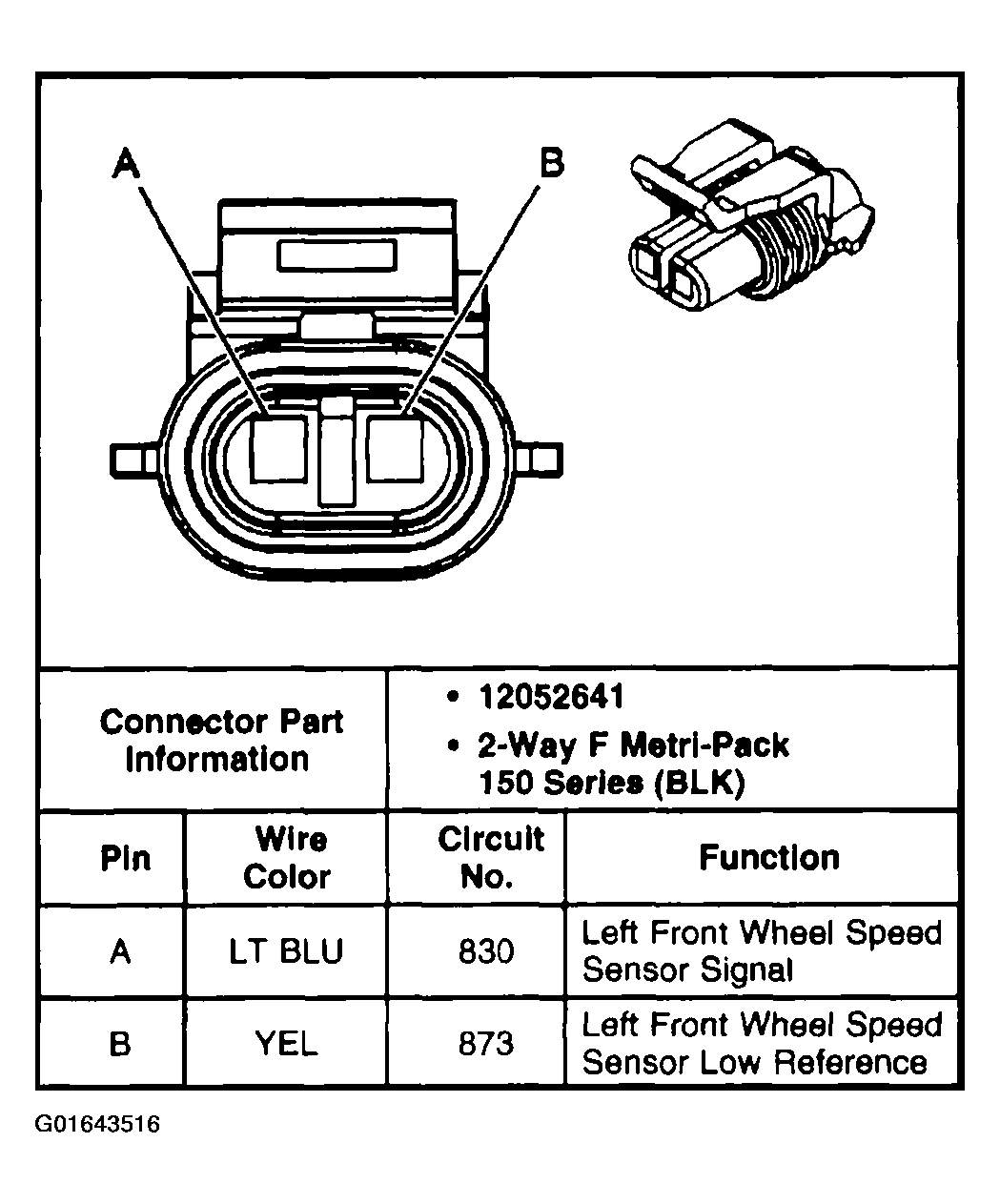

Fig 3: Identifying Wheel Speed Sensor (WSS) Connector Terminals - LF
G01643516Courtesy of GENERAL MOTORS CORP.

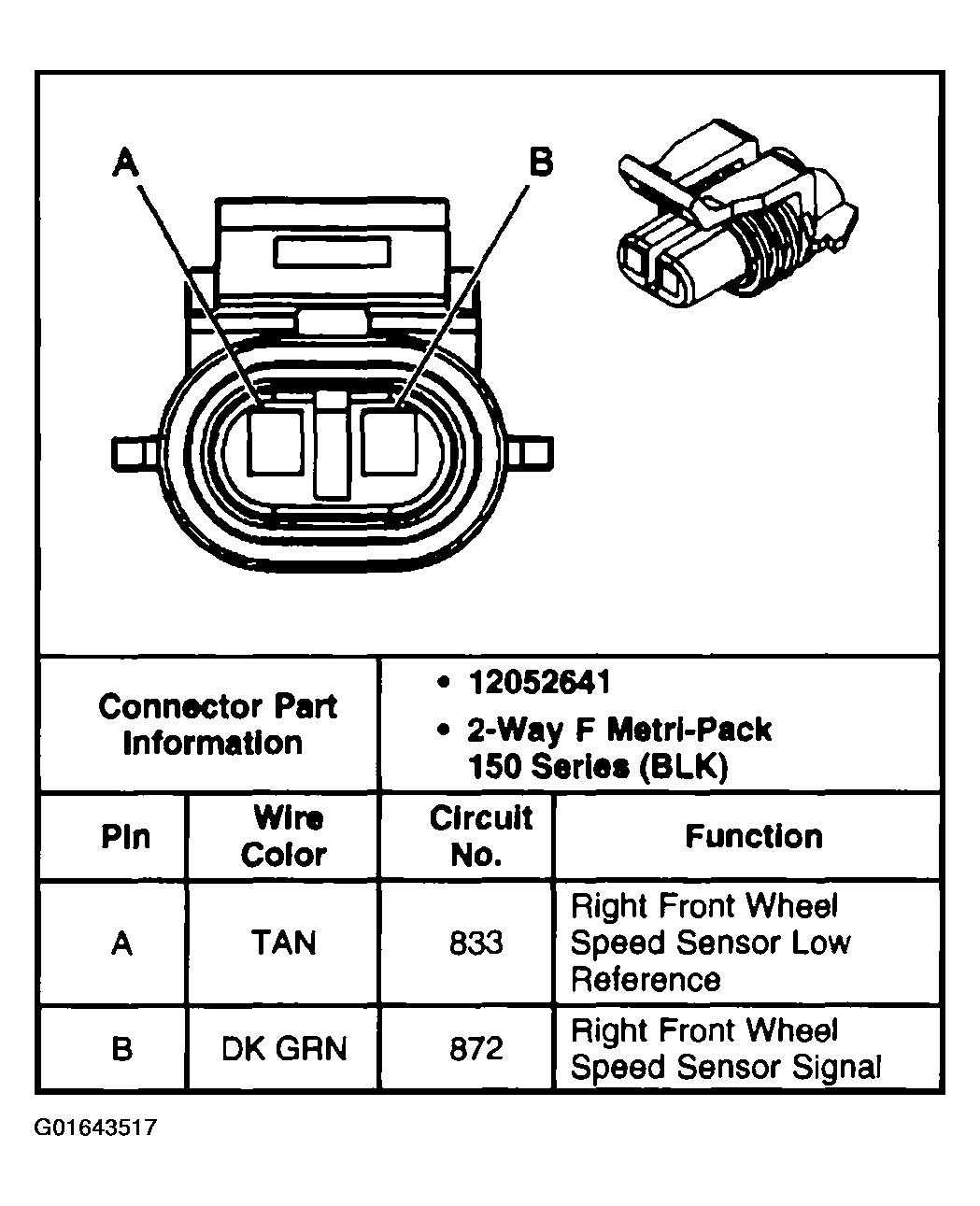

Fig 4: Identifying Wheel Speed Sensor (WSS) Connector Terminals - RF
G01643517Courtesy of GENERAL MOTORS CORP.
