Scan Tool Output Controls
Refer to the Scan Tool Manual for complete scan tool operating instructions.

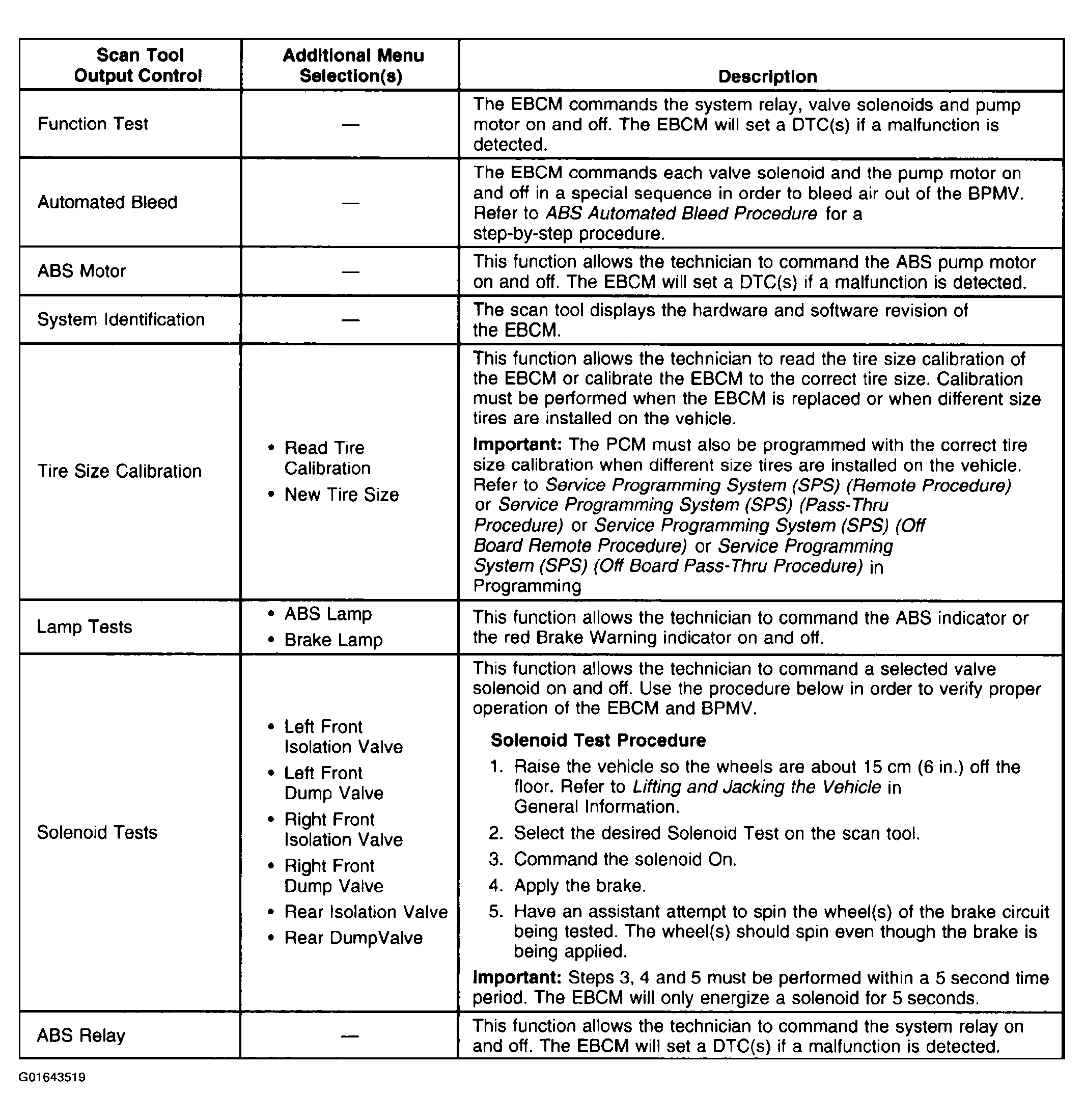

Fig 1: Scan Tool Output Controls Table
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
