Stationary Window System
›
Component Locator
›
Stationary Windows Component Views
Stationary Windows Component Views

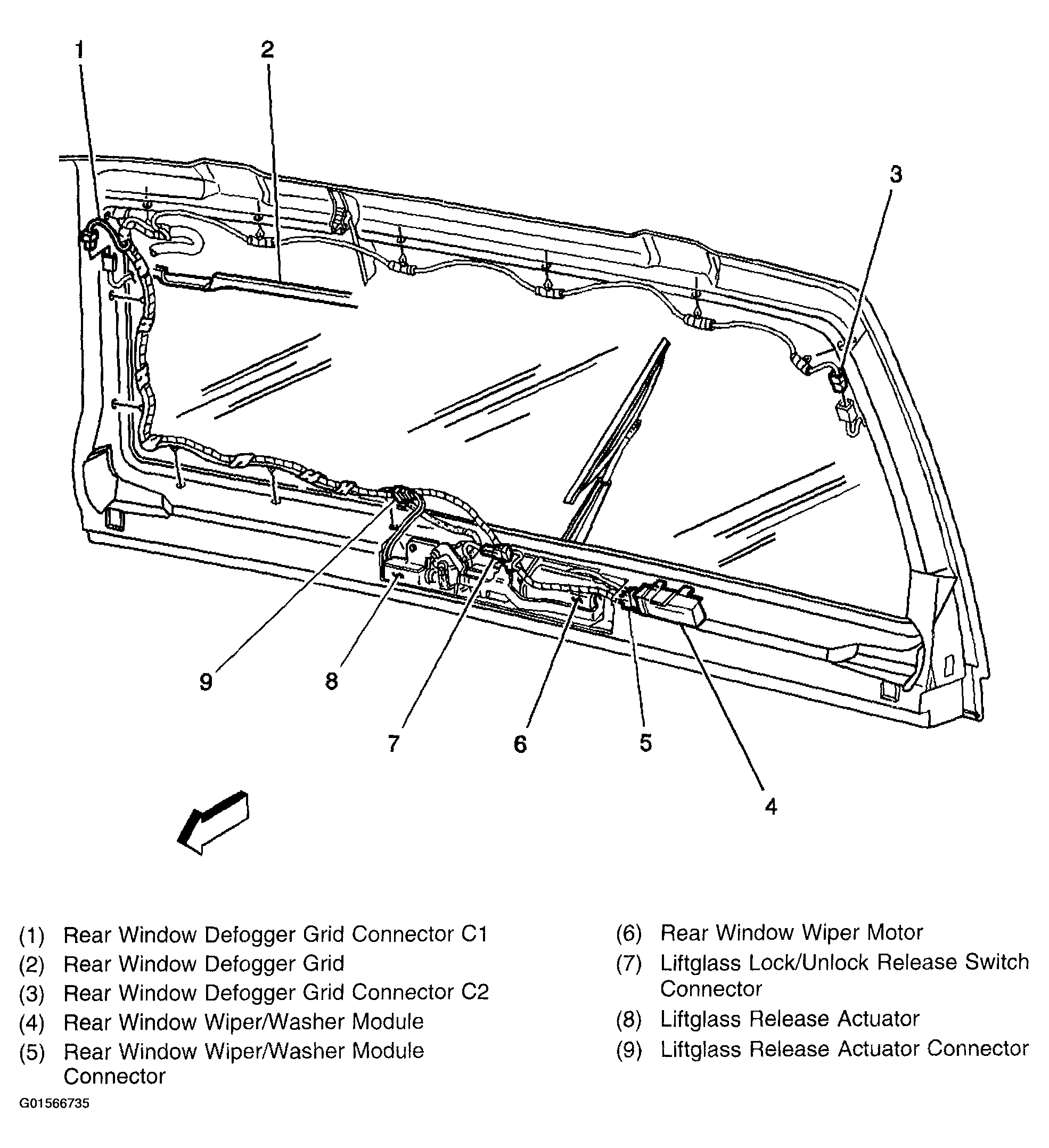

Fig 1: Liftgate Harness Location View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
