Fuel Injection Control Module (FICM) - C1 Connector End View
Fuel Injection Control Module (FICM) - C1 Connector End View

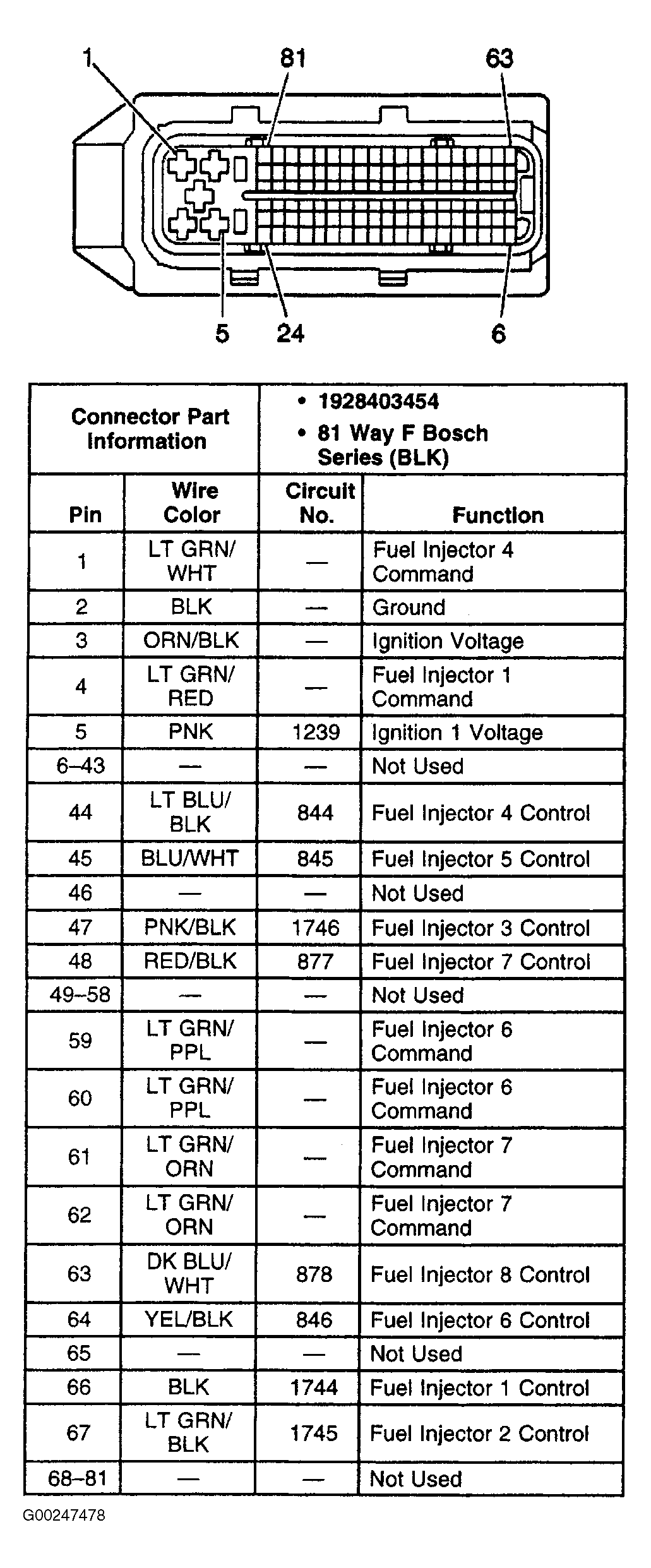

Fig 1: Fuel Injection Control Module (FICM) - C1 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
