Glow Plug/Intake Heater Relay Assembly
Glow Plug/Intake Heater Relay Assembly

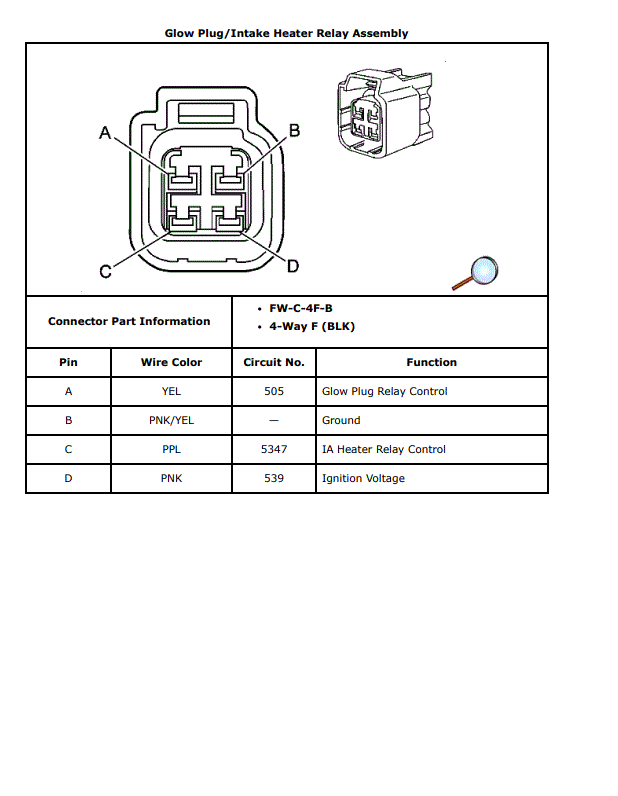

Fig 1: Glow Plug/Intake Heater Relay Assembly Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
