HVAC Control Module - C2 Connector End View

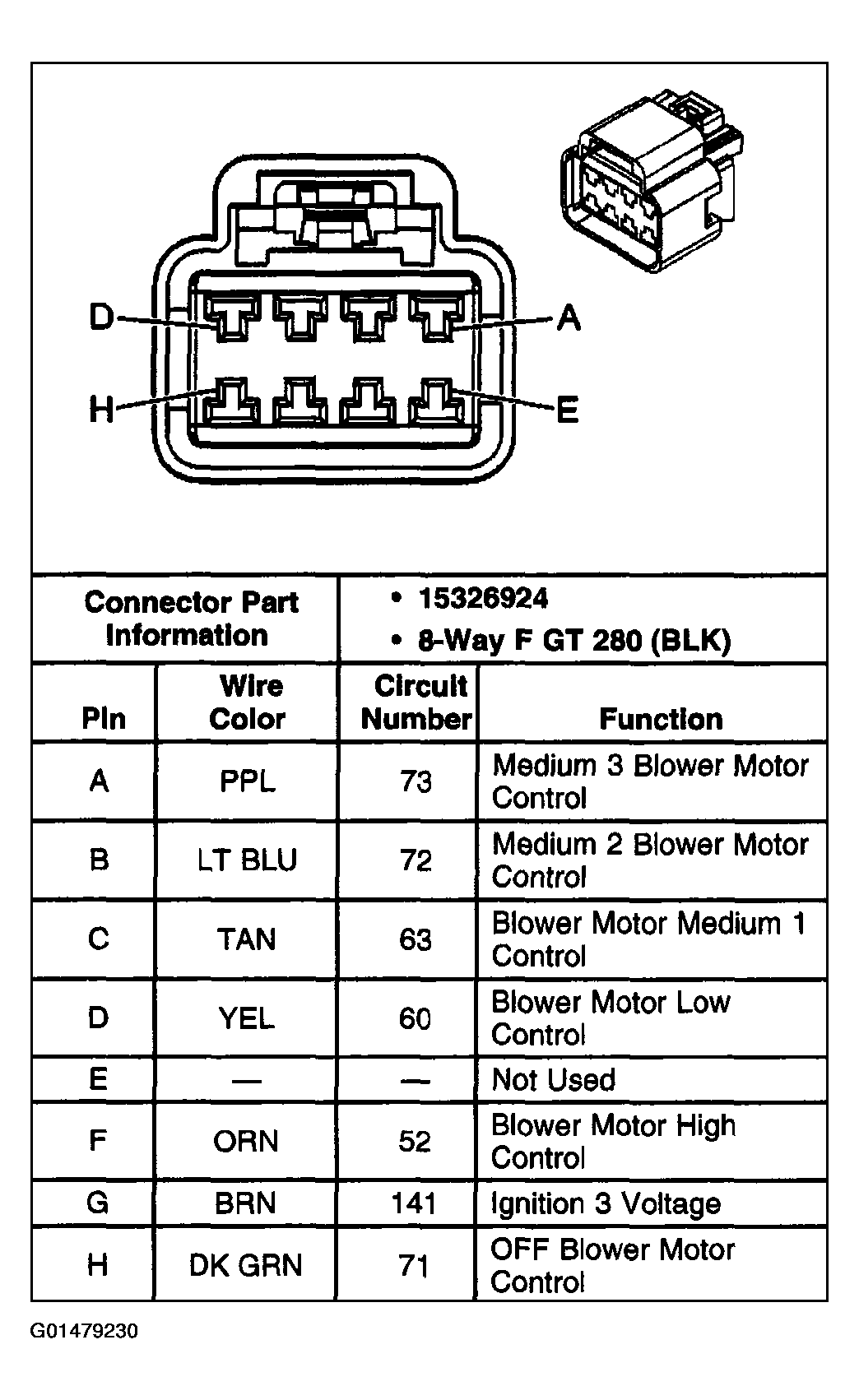

Fig 1: HVAC Control Module - C2 Connector End View
G01479230Courtesy of GENERAL MOTORS CORP.
