HVAC Control Module Connector End View - C2

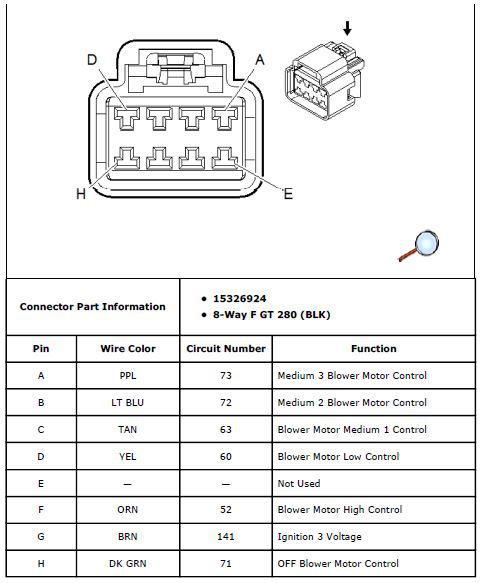

Fig 1: HVAC Control Module Connector End View - C2
G00577797Courtesy of GENERAL MOTORS CORP.
