Input Speed Sensor Harness Connector End View
Input Speed Sensor Harness Connector End View

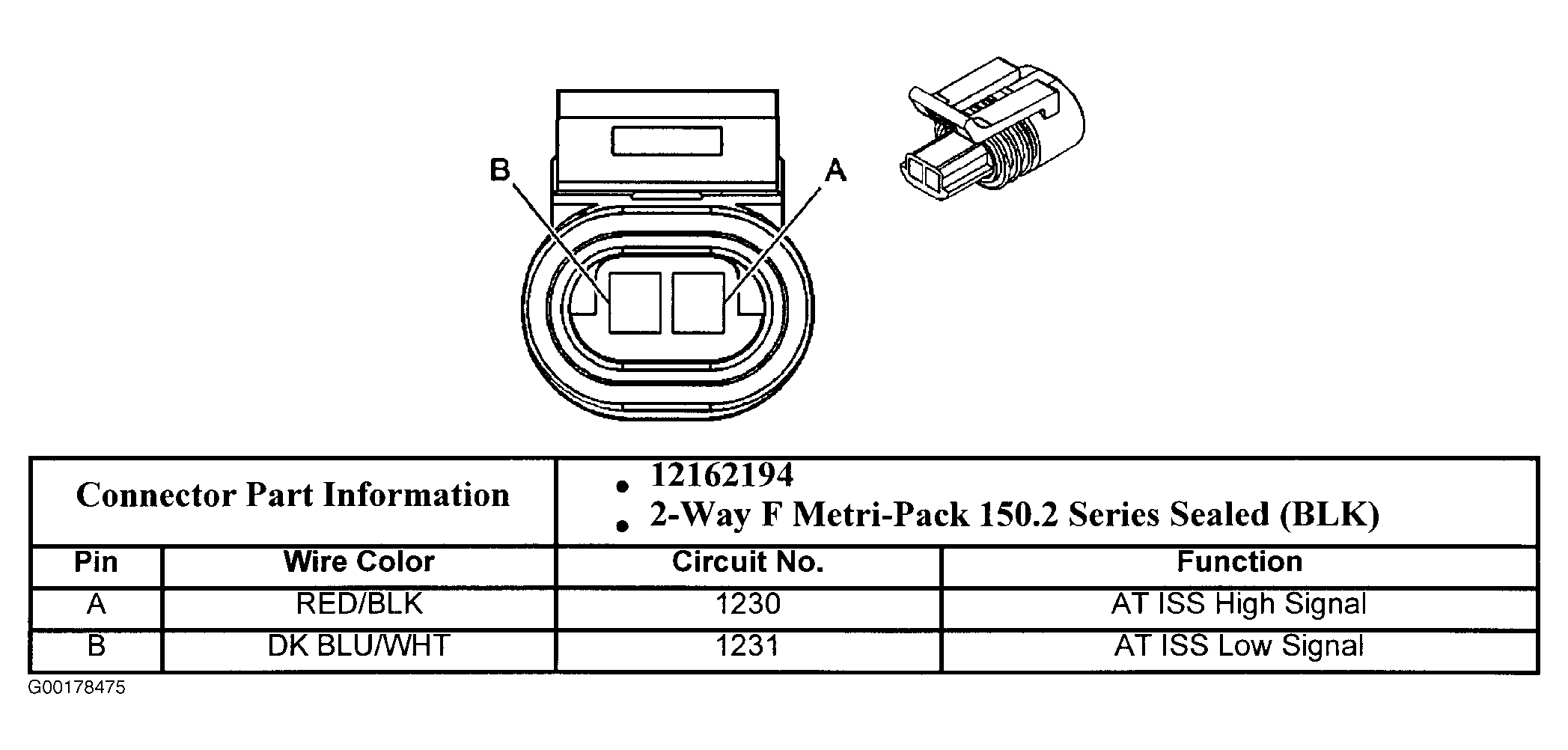

Fig 1: Input Speed Sensor Harness Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
