Primary Fuel Level Sensor Connector End View
Primary Fuel Level Sensor Connector End View

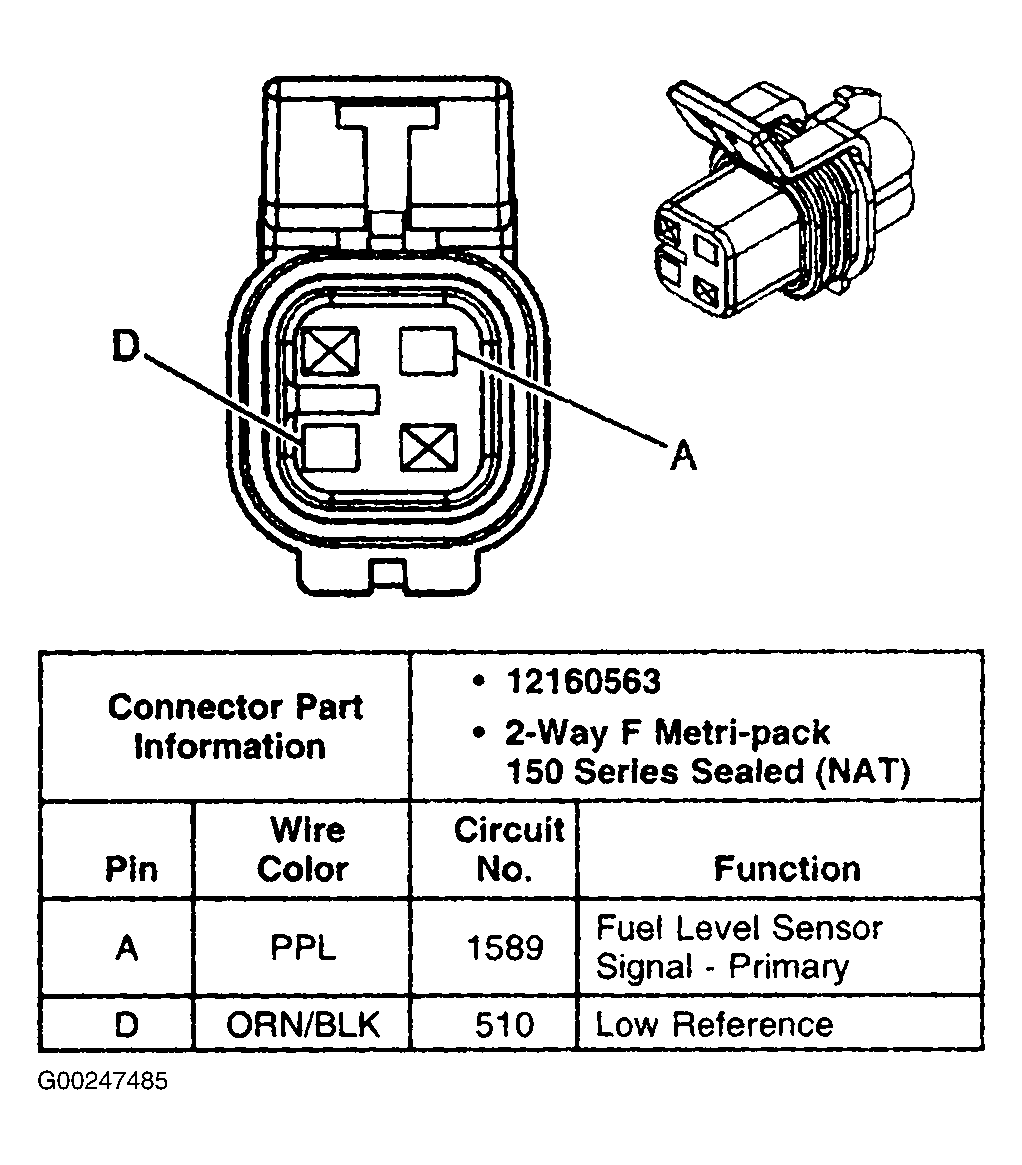

Fig 1: Primary Fuel Level Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
