Propshaft Speed Sensor Connector End View - Front
Propshaft Speed Sensor Connector End View - Front

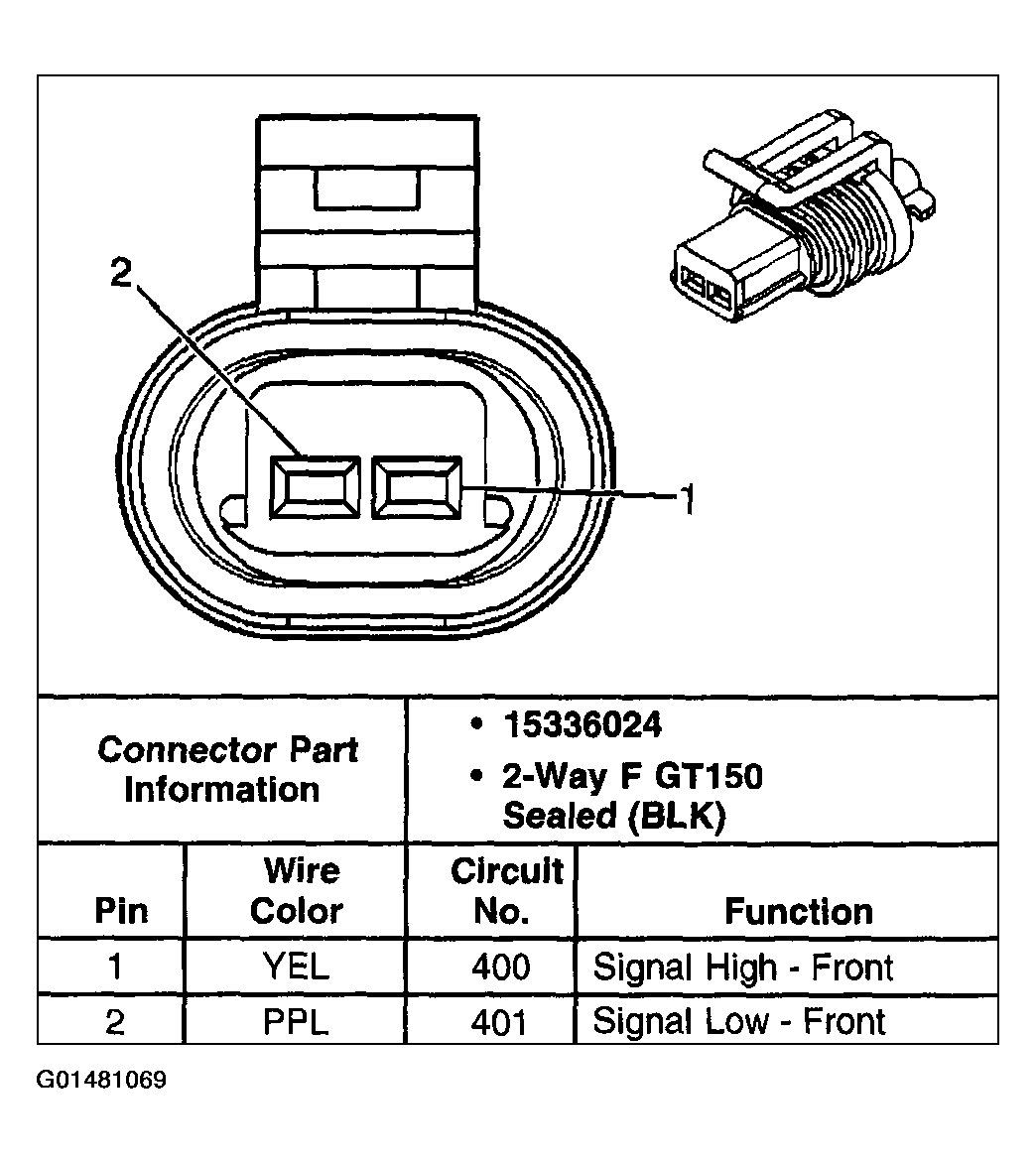

Fig 1: Propshaft Speed Sensor Connector End View - Front
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
