Secondary Fuel Level Sensor Connector End View
Secondary Fuel Level Sensor Connector End View

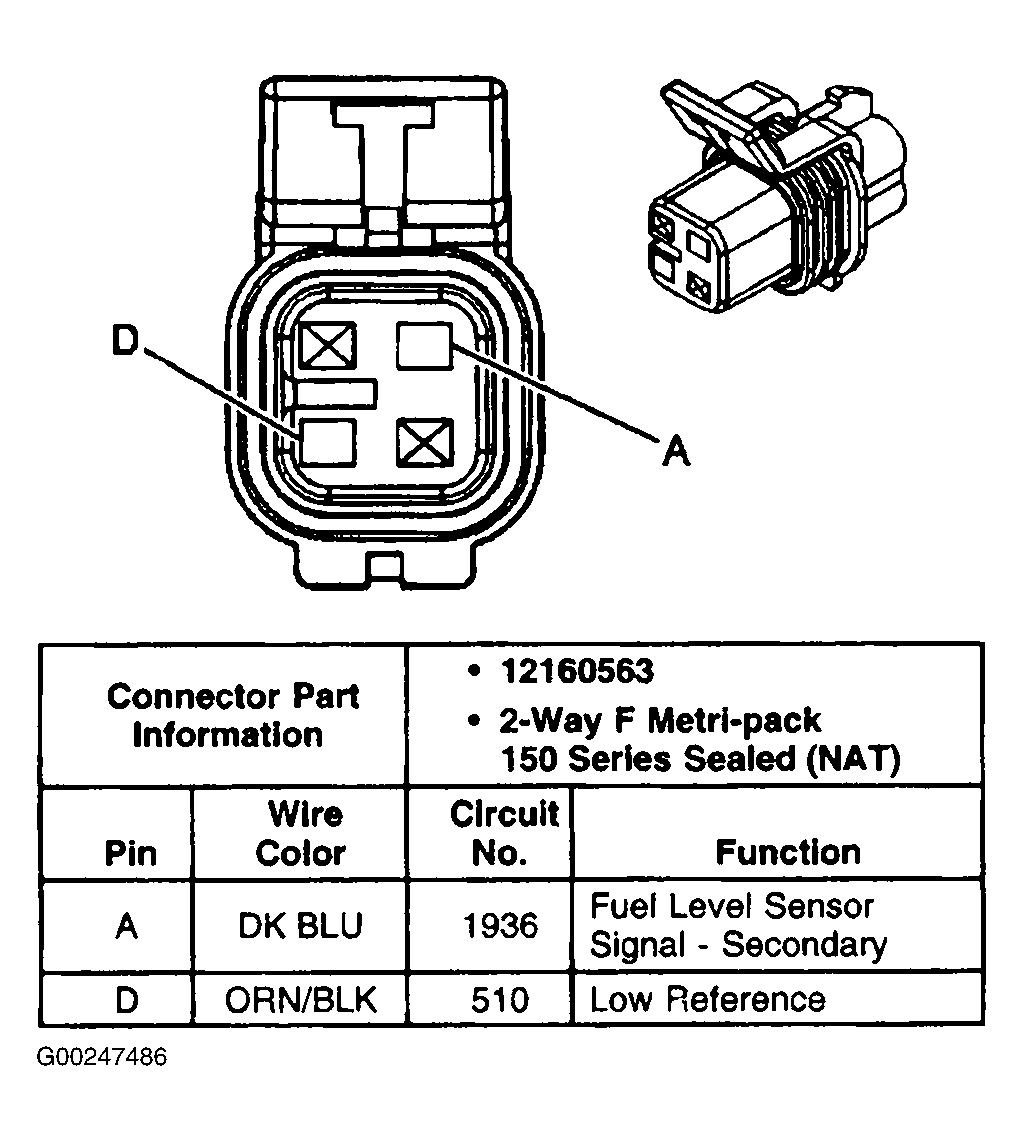

Fig 1: Secondary Fuel Level Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
