Selectable Ride Switch Connector End View
Selectable Ride Switch Connector End View

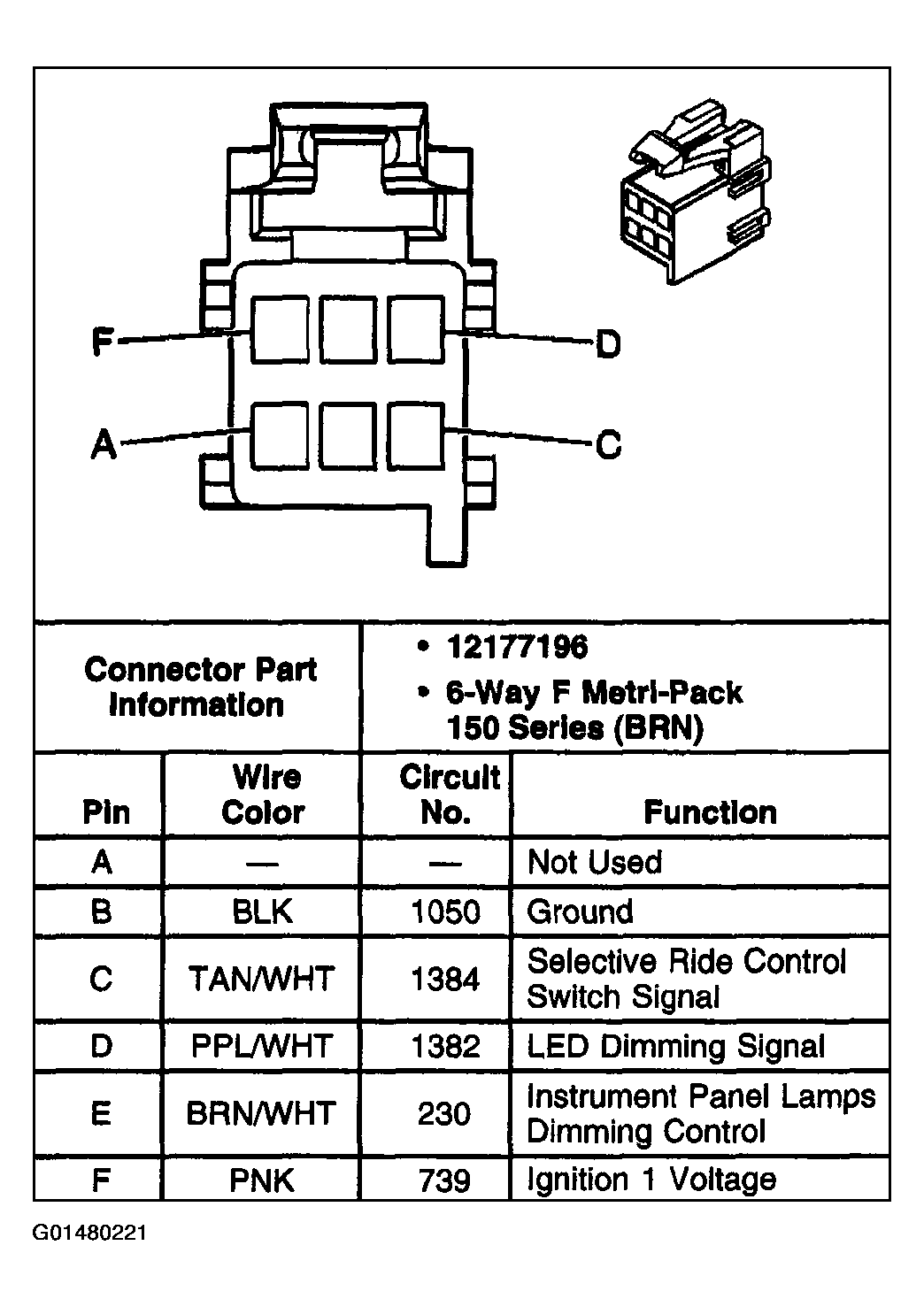

Fig 1: Selectable Ride Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
