Transfer Case - Encoder Motor Connector End View
Transfer Case - Encoder Motor Connector End View

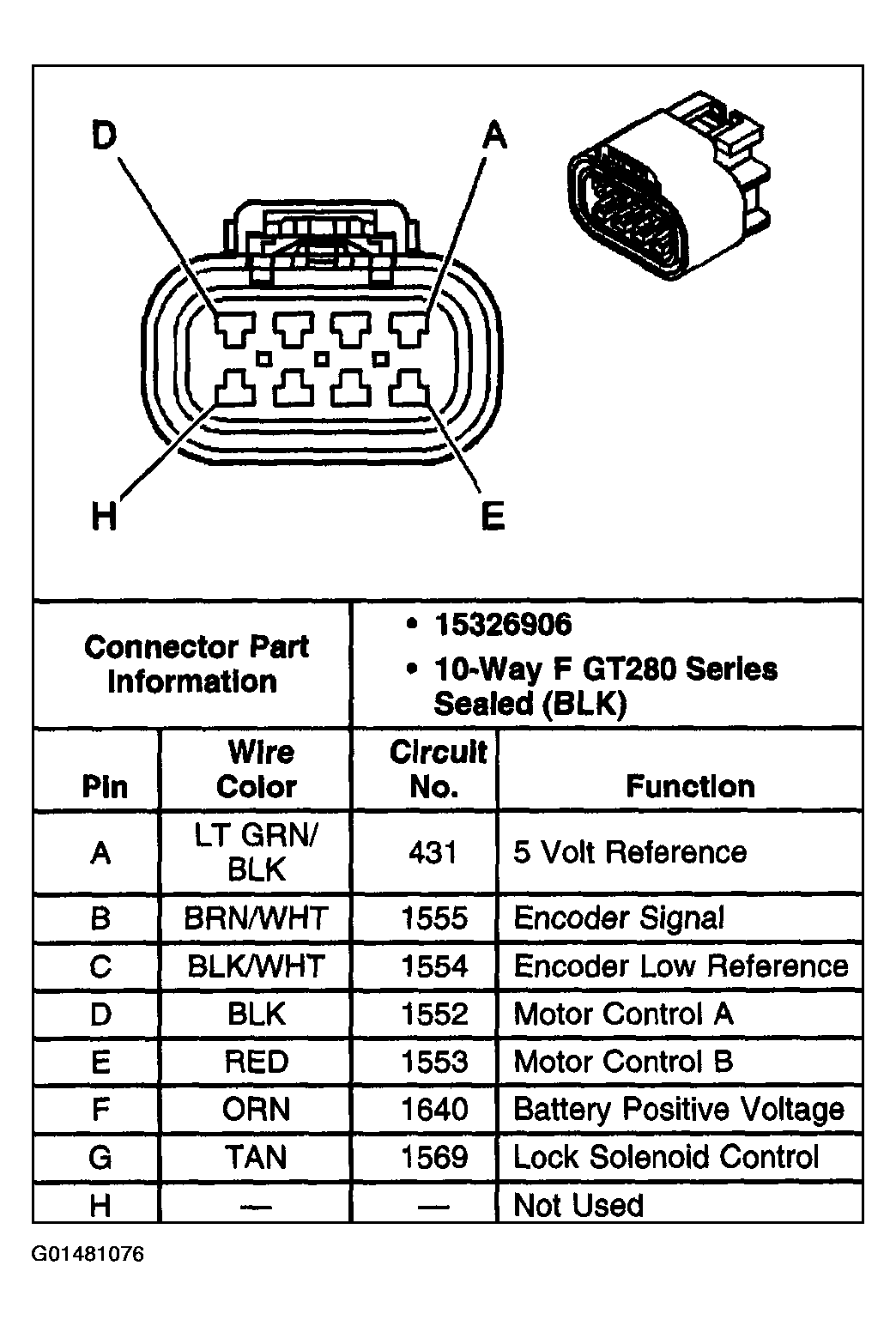

Fig 1: Transfer Case - Encoder Motor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
