Transfer Case Shift Control Module - C2 Connector End View
Transfer Case Shift Control Module - C2 Connector End View

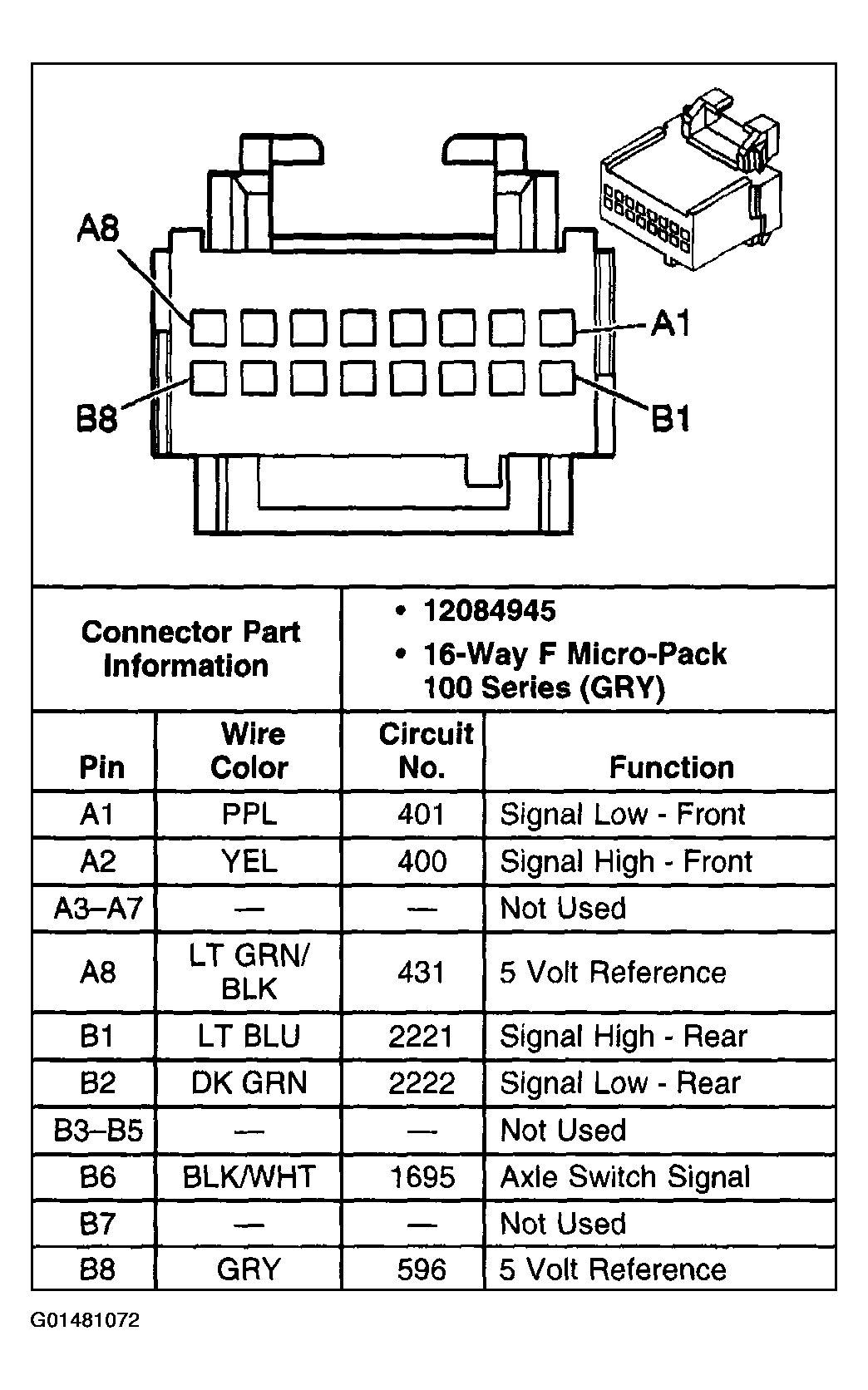

Fig 1: Transfer Case Shift Control Module - C2 Connector End View
Courtesy of GENERAL MOTORS CORP.

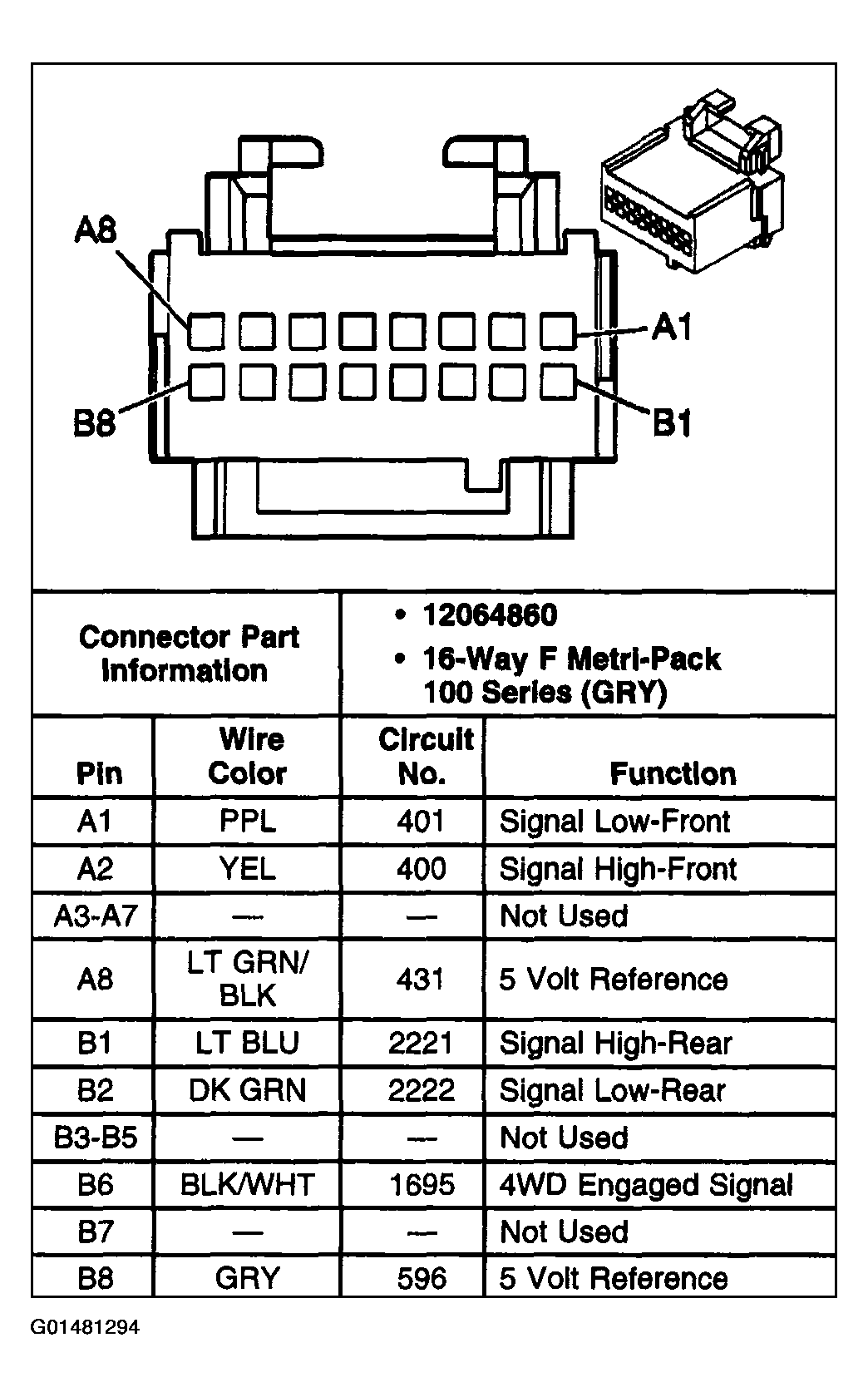

Fig 1: Transfer Case Shift Control Module - C2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
