Transmission Control Module Harness Connector End View C1
Transmission Control Module Harness Connector End View C1

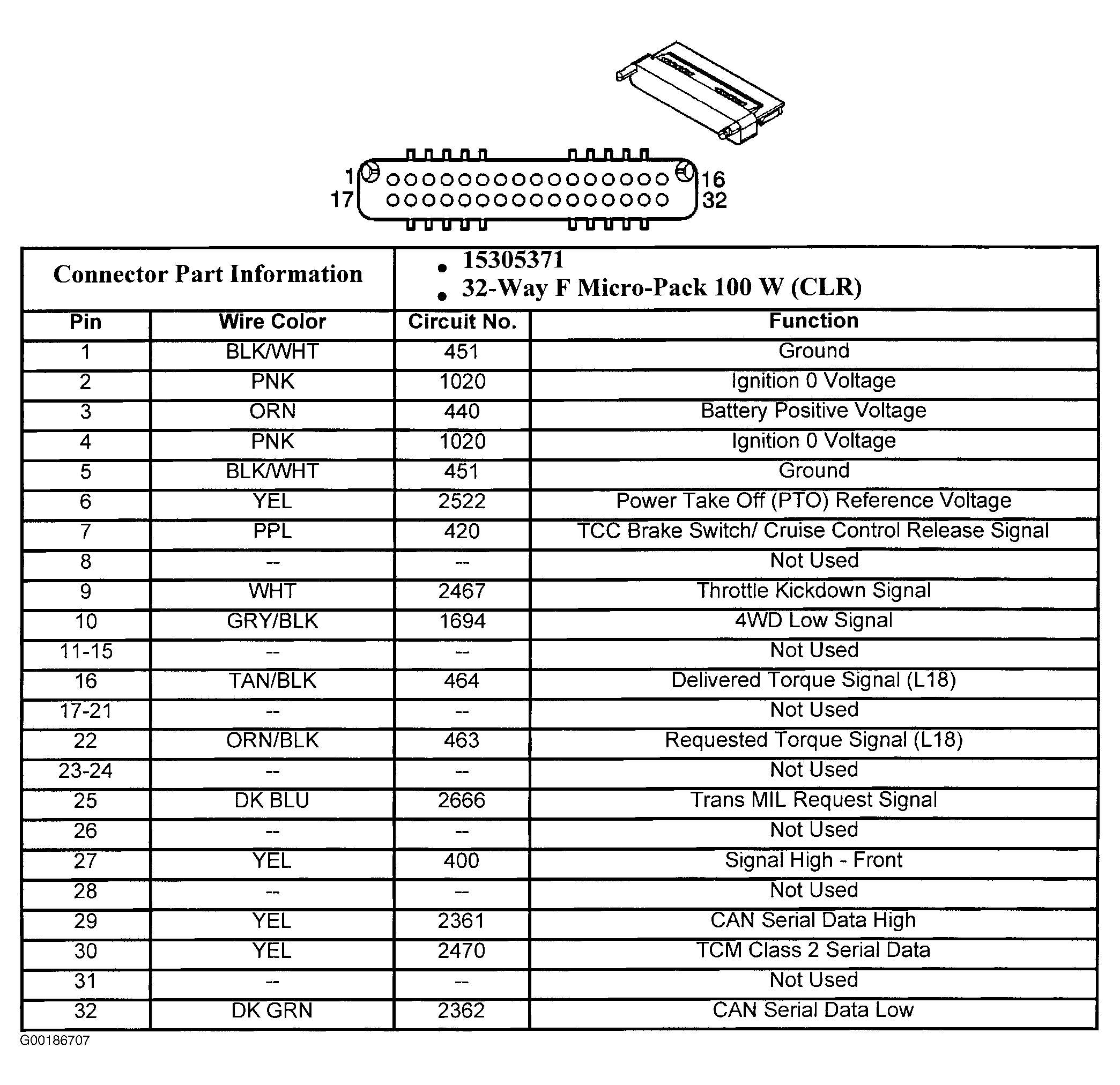

Fig 1: Transmission Control Module Harness Connector End View C1
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
