Transmission Control Module Harness Connector End View C2
Transmission Control Module Harness Connector End View C2

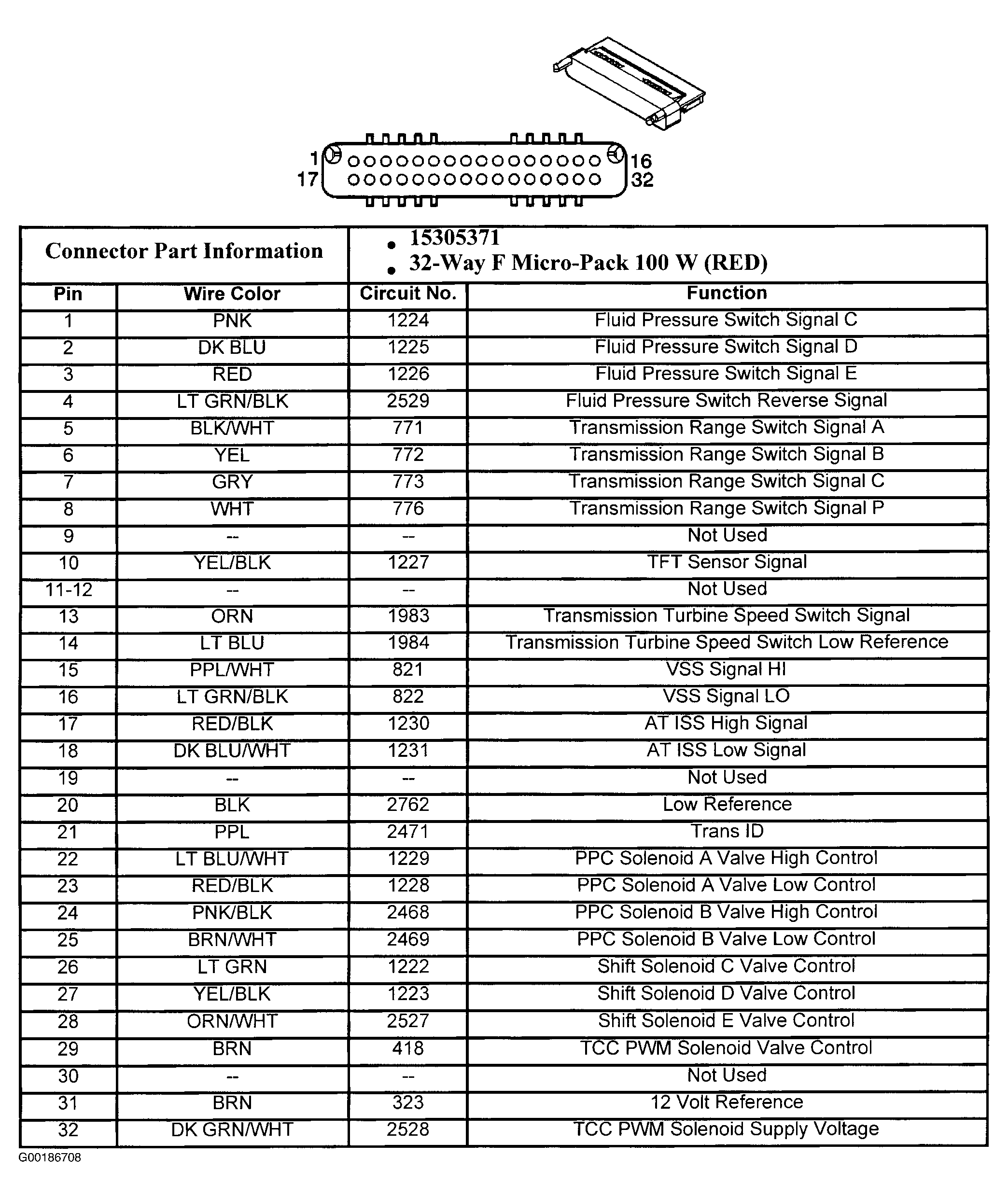

Fig 1: Transmission Control Module Harness Connector End View C2
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
