Power Door Systems Component Views

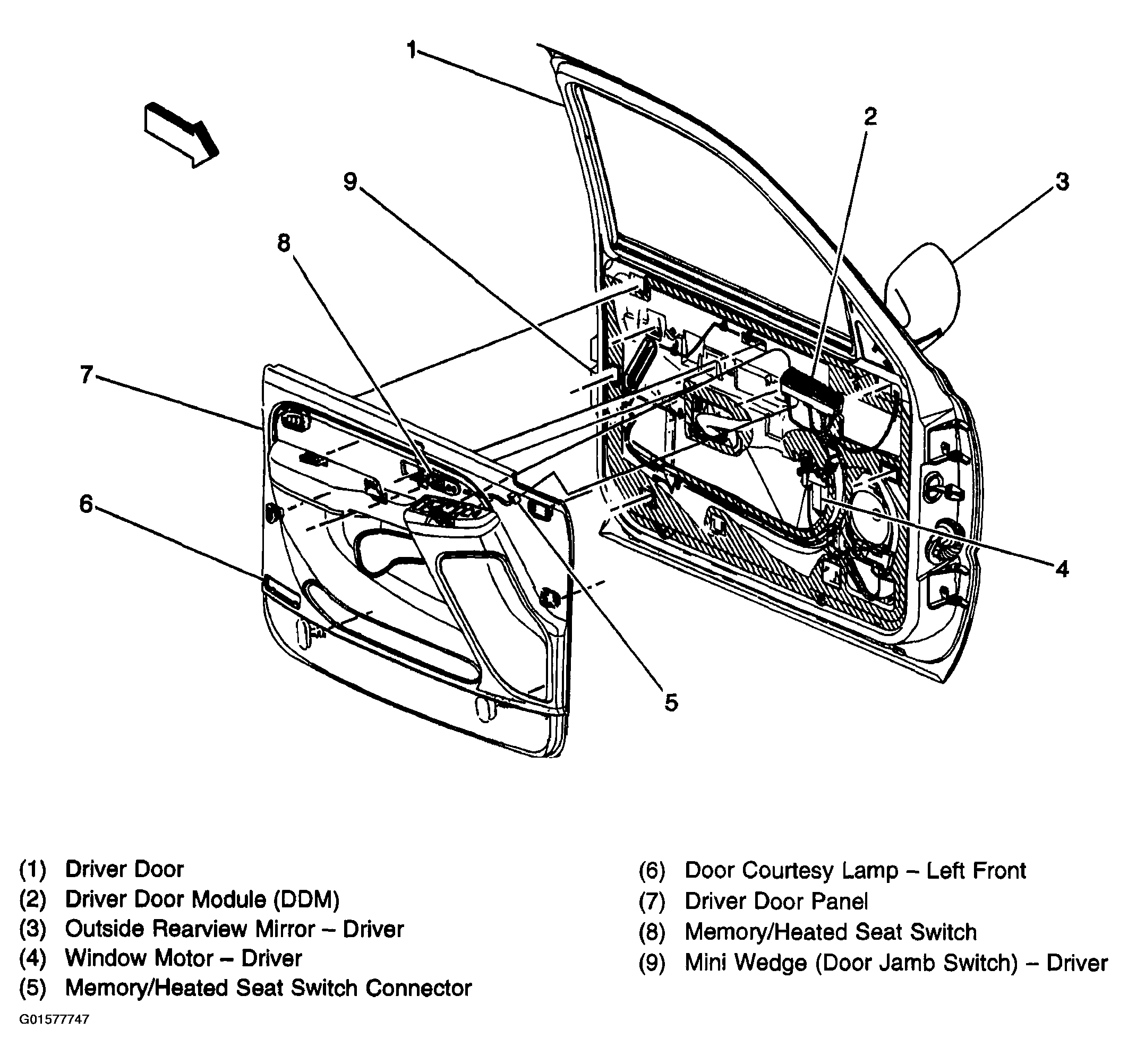

Fig 1: Driver Door

Courtesy of GENERAL MOTORS CORP.

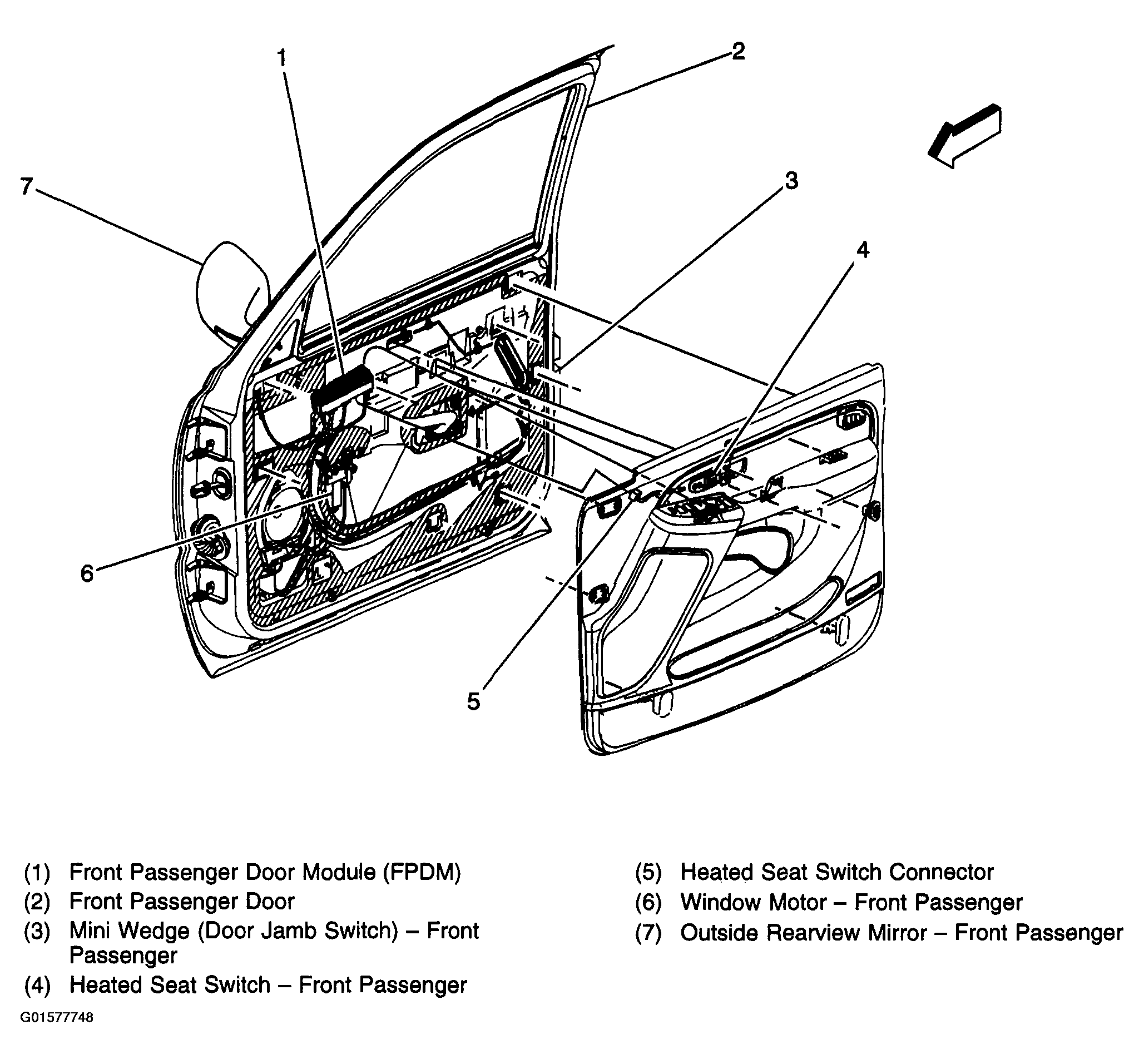

Fig 2: Front Passenger Door

Courtesy of GENERAL MOTORS CORP.

Fig 3: LR Passenger Side Door

Courtesy of GENERAL MOTORS CORP.

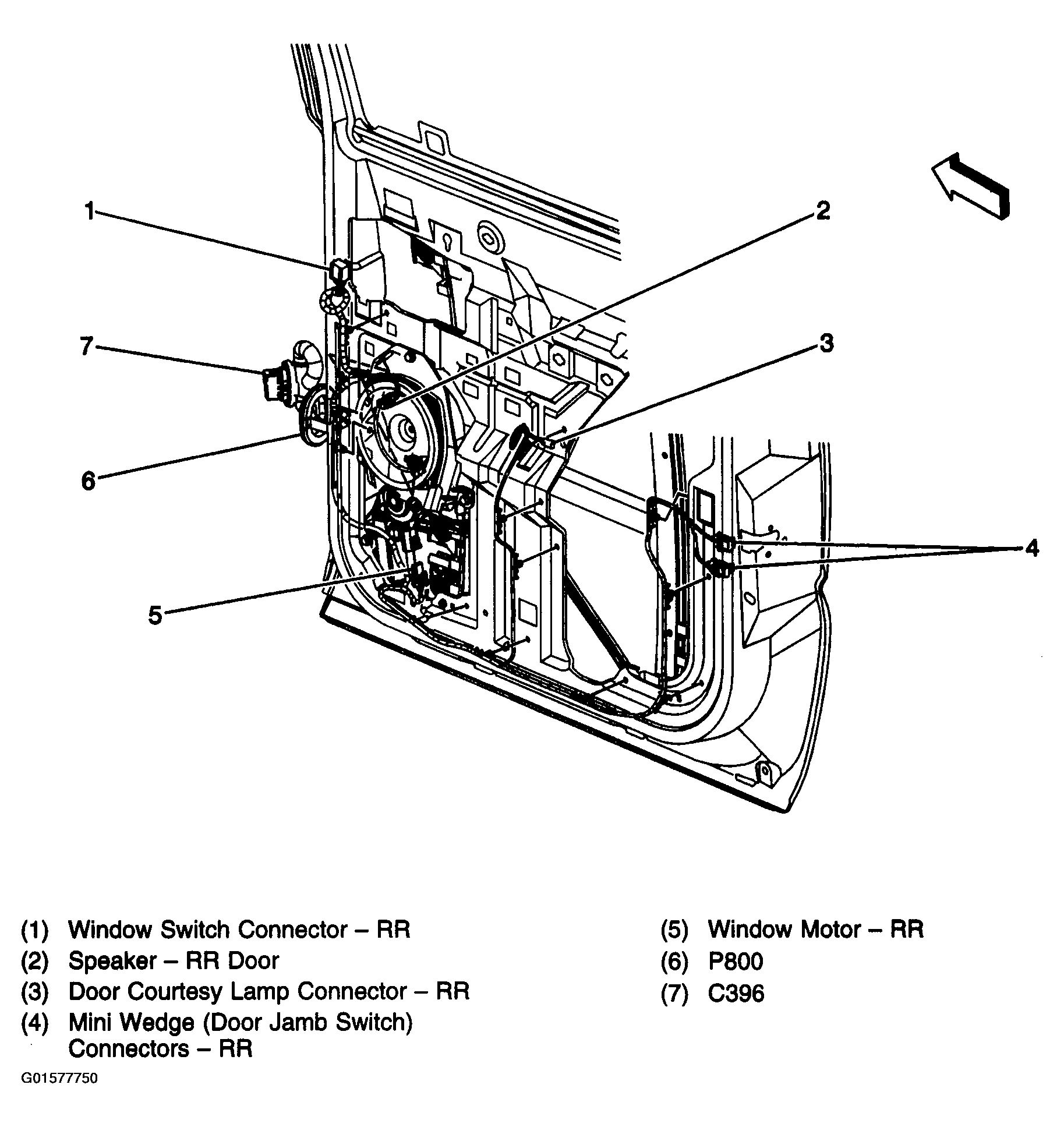

Fig 4: RR Passenger Side Door

Courtesy of GENERAL MOTORS CORP.
