Stationary Window System
›
Component Locator
›
Stationary Windows Connector End Views
Stationary Windows Connector End Views

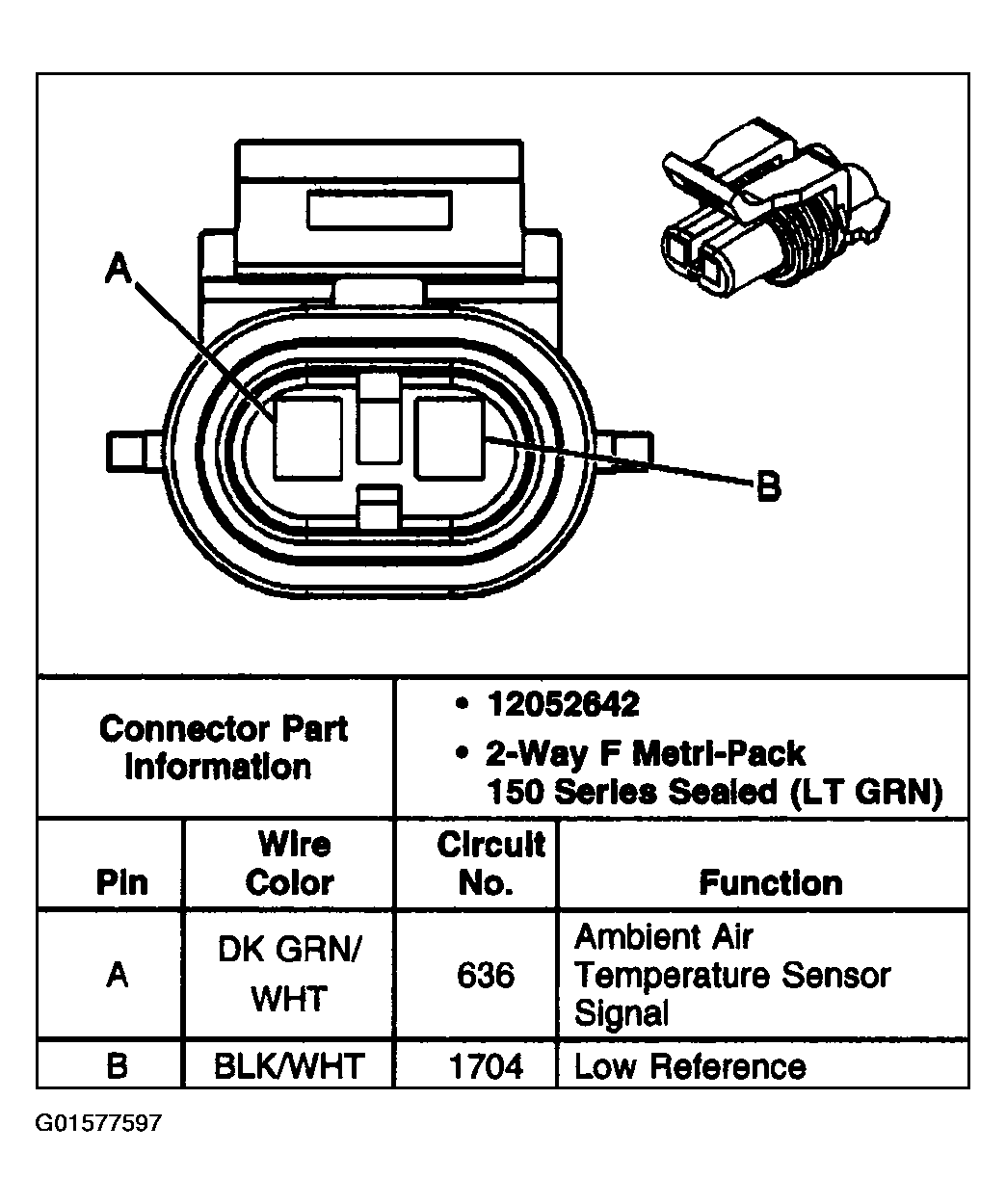

Fig 1: Air Temperature Sensor-Outside
Courtesy of GENERAL MOTORS CORP.

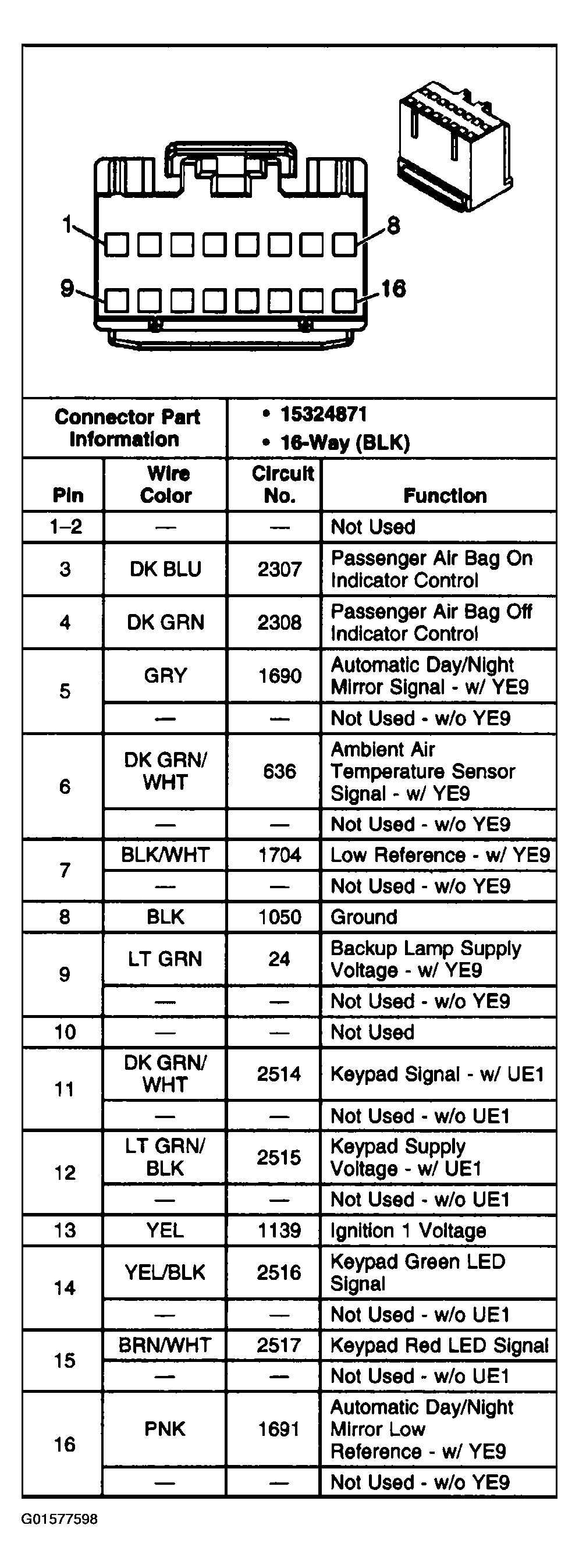

Fig 2: Inside Rearview Mirror
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
