Engine Electrical Component Views

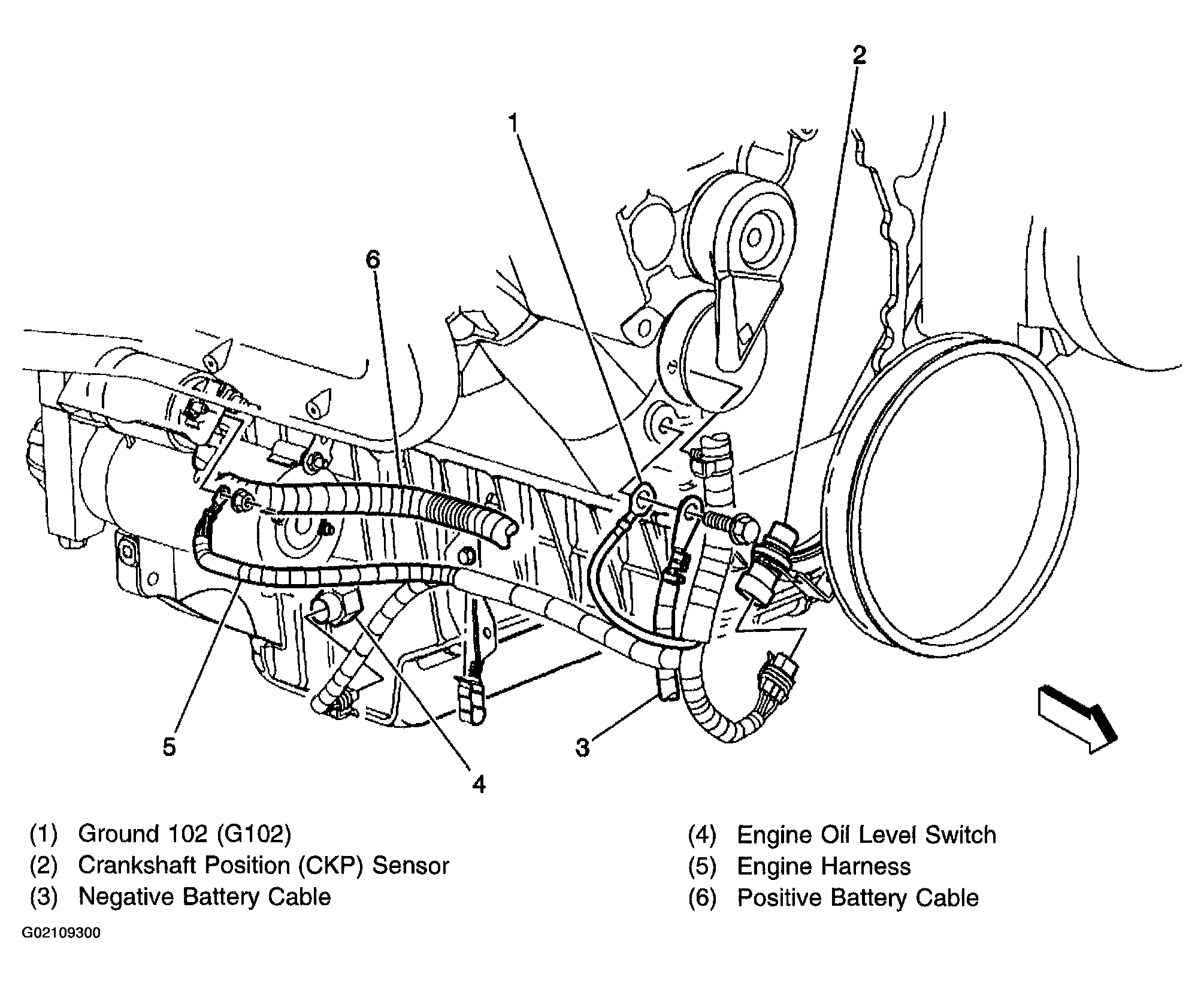

Fig 1: RH Front Of 4.3L Engine

Courtesy of GENERAL MOTORS CORP.

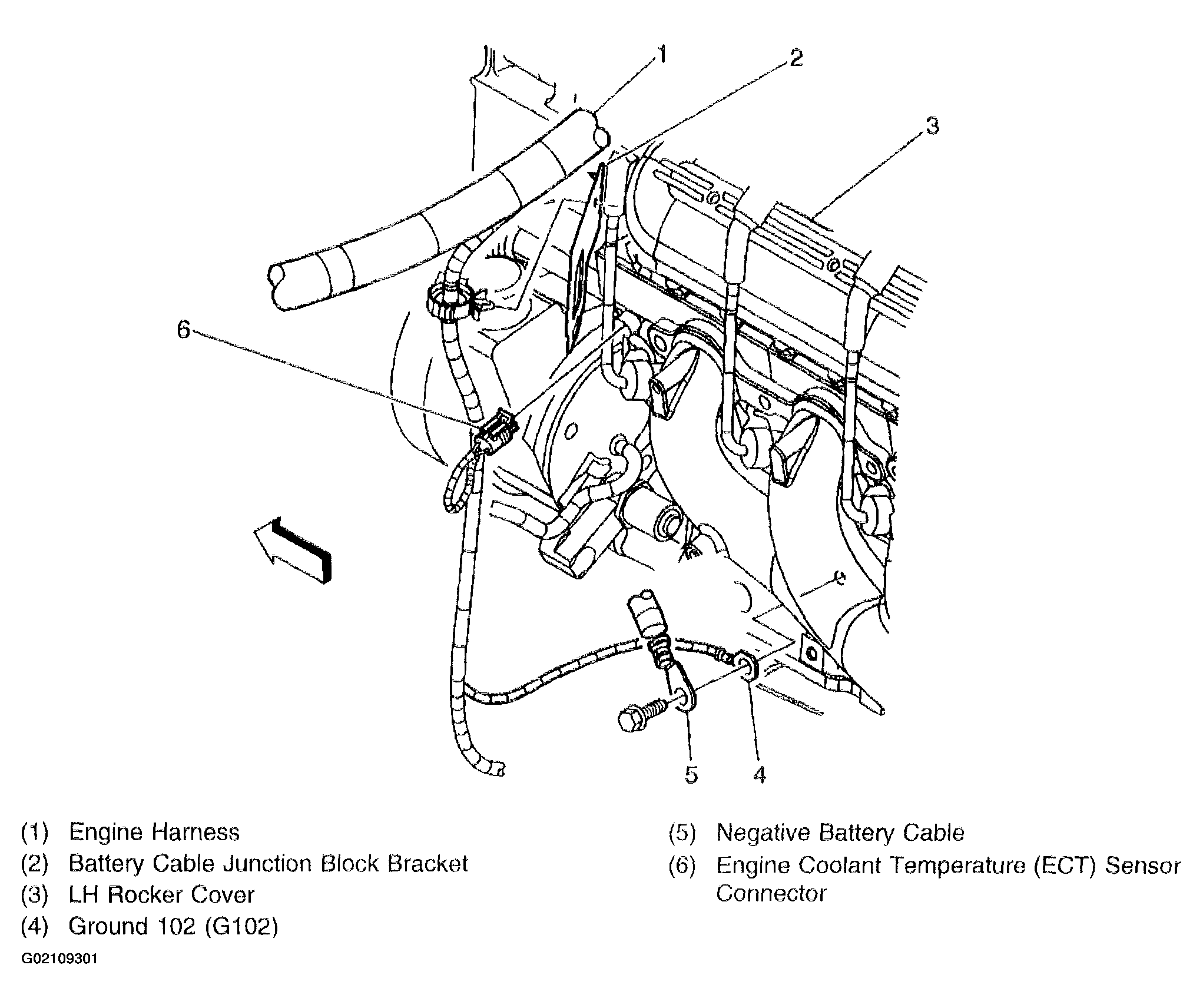

Fig 2: LH Side Of Engine 4.8L, 5.3L, 6.0L

Courtesy of GENERAL MOTORS CORP.

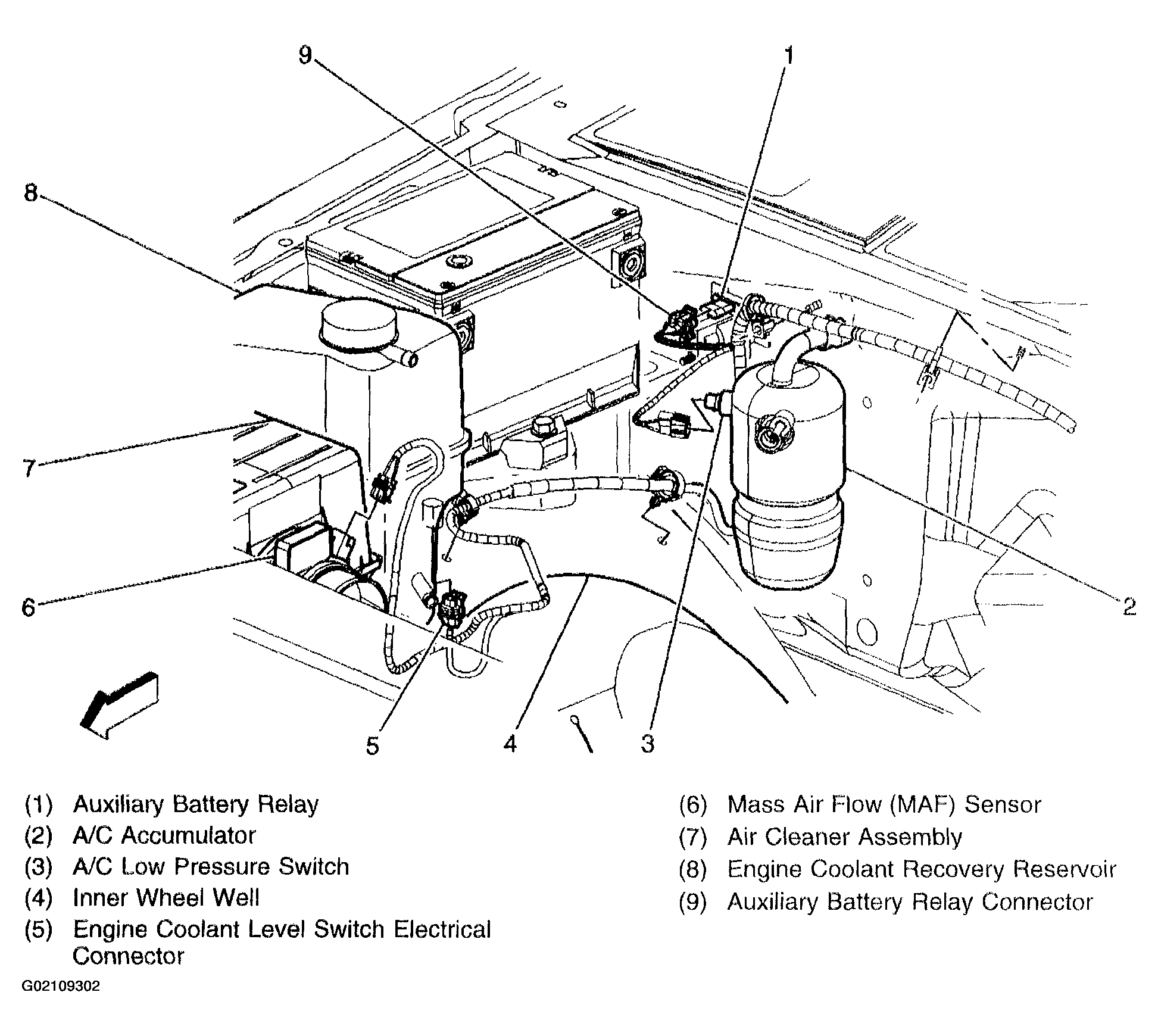

Fig 3: Auxiliary Battery Relay

Courtesy of GENERAL MOTORS CORP.

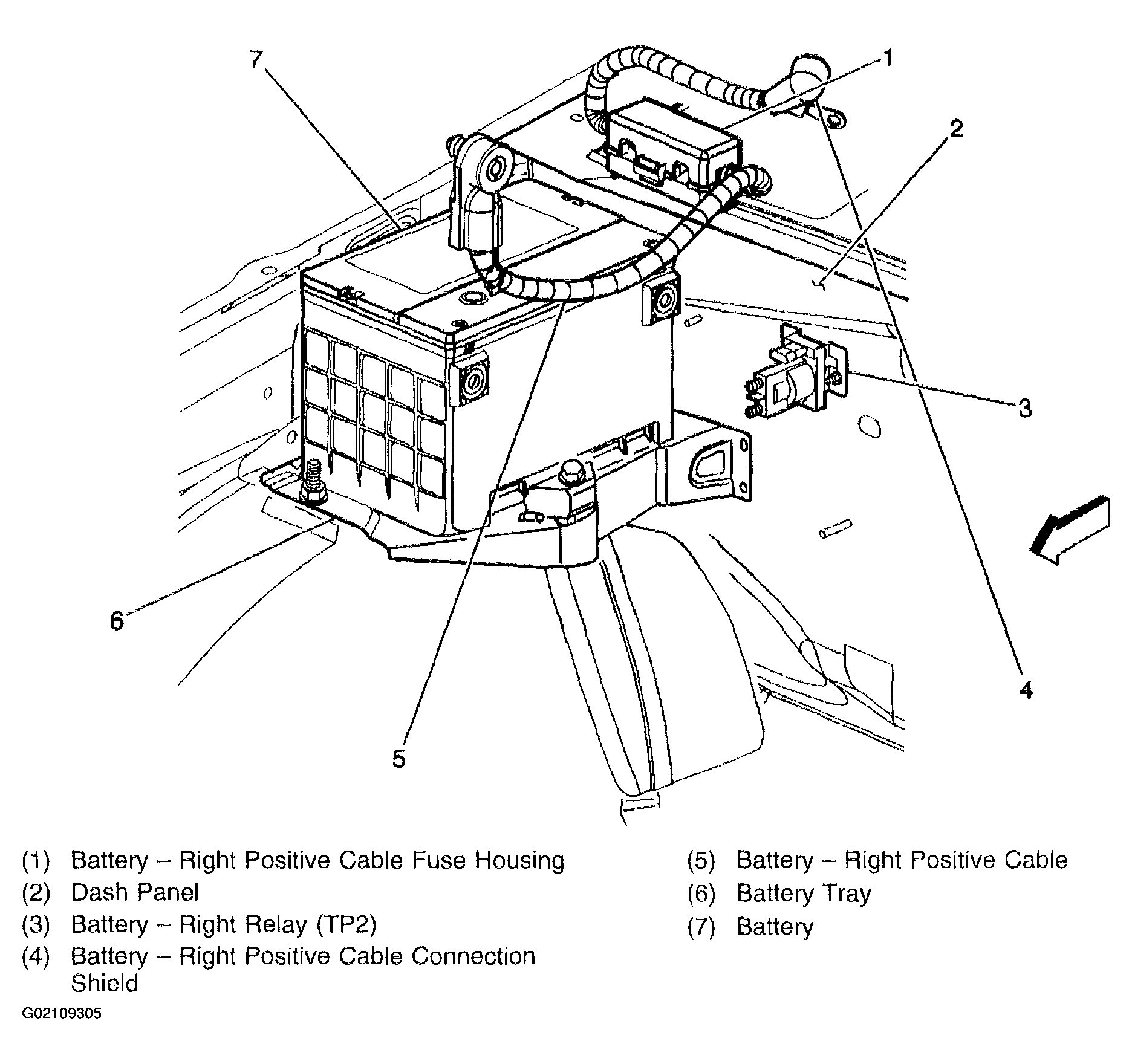

Fig 4: Auxiliary Battery

Courtesy of GENERAL MOTORS CORP.
