Deployment Inside Vehicle-Vehicle Scrapping Procedures

Deploy inflator modules inside of the vehicle when destroying the vehicle or when salvaging the vehicle for parts. This includes but is not limited to the following situations:

• The vehicle has completed its useful life.
• Irreparable damage occurs to the vehicle in a non-deployment type accident.
• Irreparable damage occurs to the vehicle during a theft.
• The vehicle is being salvaged for parts to be used on a vehicle with a different VIN as opposed to rebuilding as the same VIN.

Fig 1: View Of Connector Position Assurance (CPA) & Steering Wheel Module Yellow 4-Way Connector
Courtesy of GENERAL MOTORS CORP.
1. Turn OFF the ignition.
2. Remove the ignition key.
3. Put on safety glasses.
4. Remove all loose objects from the front seats.
5. Disconnect the inflatable restraint steering wheel module connector (2) located next to the steering column.
Fig 2: Cutting The Steering Wheel Module Harness To Size
Courtesy of GENERAL MOTORS CORP.
IMPORTANT: This vehicle is equipped with dual stage air bags. The steering wheel module and I/P module will each have 4 wires. Refer to SIR Connector End Views  for determining high and low circuits.
6. Cut the steering wheel module harness connector out of the vehicle, leaving at least 16 cm (6 in) of wire at the connector.
7. Strip 13 mm (0.5 in) of insulation from each of the connector wire leads.
Fig 3: Fabricating 20 Ft. Deployment Harness
Courtesy of GENERAL MOTORS CORP.
8. Cut two 6.1 m (20 ft) deployment wires from a 0.8 mm (18 gage) or thicker multi-strand wire. Use these wires to fabricate the deployment harness.
9. Strip 13 mm (0.5 in) of insulation from both ends of the wires cut in the previous step.
10. Twist together 1 end from each of the wires in order to short the wires. Deployment wires shall remain shorted, and not connected to a power source until you are ready to deploy the inflator module.

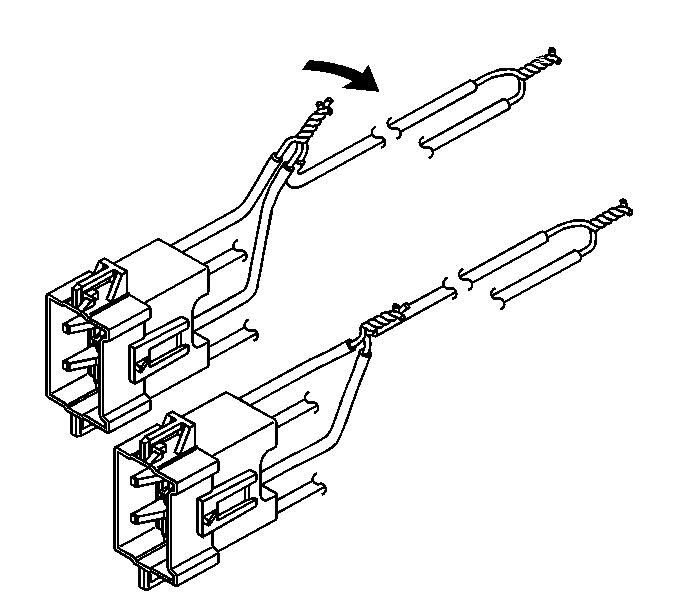

Fig 4: Twisting Connector Wire Leads (High Circuits) To Deployment Harness Wire
Courtesy of GENERAL MOTORS CORP.
11. Twist together 2 connector wire leads, the high circuits from both stages of the steering wheel module, to one set of deployment wires. Refer to SIR Connector End Views  in order to determine the correct circuits.
12. Inspect that the connection is secure.
Fig 5: Bending Twisted Connection Flat
Courtesy of GENERAL MOTORS CORP.
13. Bend flat the twisted connection.
Fig 6: Insulating Connection With Electrical Tape
Courtesy of GENERAL MOTORS CORP.
14. Secure and insulate the connection using electrical tape.
Fig 7: Twisting Connector Wire Leads (Low Circuits) To Deployment Harness Wire
Courtesy of GENERAL MOTORS CORP.
15. Twist together 2 connector wire leads, the low circuits from both stages of the steering wheel module, to one set of deployment wires. Refer to SIR Connector End Views  in order to determine the correct circuits.
16. Inspect that the connection is secure.
Fig 8: Bending Twisted Connection Flat
Courtesy of GENERAL MOTORS CORP.
17. Bend flat the twisted connection.
Fig 9: Insulating Connection With Electrical Tape
Courtesy of GENERAL MOTORS CORP.
18. Secure and insulate the connection using electrical tape.
19. Connect the deployment harness to the steering wheel module connector.

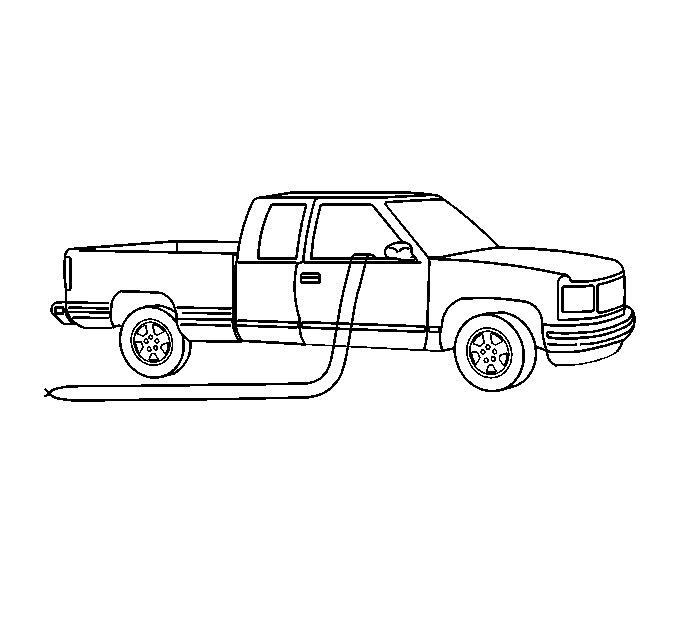

Fig 10: Routing The Deployment Harness Out Of The Vehicle's Driver Side
Courtesy of GENERAL MOTORS CORP.
20. Route the deployment harness out of the vehicle's driver side.
Fig 11: Removing The Connector Position Assurance (CPA) From The I/P Module Yellow 4-Way Connector - Zone 5
Courtesy of GENERAL MOTORS CORP.
21. Disconnect the inflatable restraint I/P module connector (1) located behind the I/P module (3).
Fig 12: Cutting The Steering Wheel Module Harness To Size
Courtesy of GENERAL MOTORS CORP.
IMPORTANT: This vehicle is equipped with dual stage air bags. The steering wheel module and I/P module will each have 4 wires. Refer to SIR Connector End Views  for determining high and low circuits.
22. Cut the I/P module harness connector out of the vehicle, leaving at least 16 cm (6 in) of wire at the connector.
23. Strip 13 mm (0.5 in) of insulation from each of the connector wire leads.

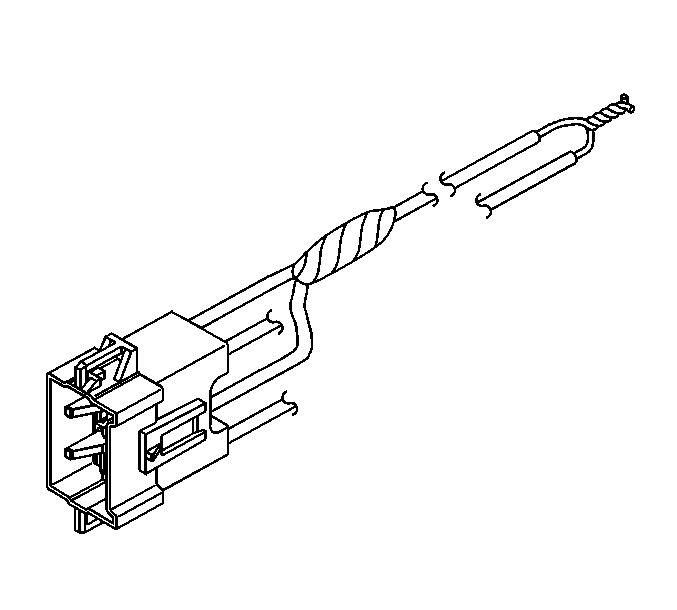

Fig 13: Fabricating 20 Ft. Deployment Harness
Courtesy of GENERAL MOTORS CORP.
24. Cut two 6.1 m (20 ft) deployment wires from a 0.8 mm (18 gage) or thicker multi-strand wire. These wires will be used to fabricate the deployment harness.
25. Strip 13 mm (0.5 in) of insulation from both ends of the wires cut in the previous step.
26. Twist together one end from each of the wires in order to short the wires.

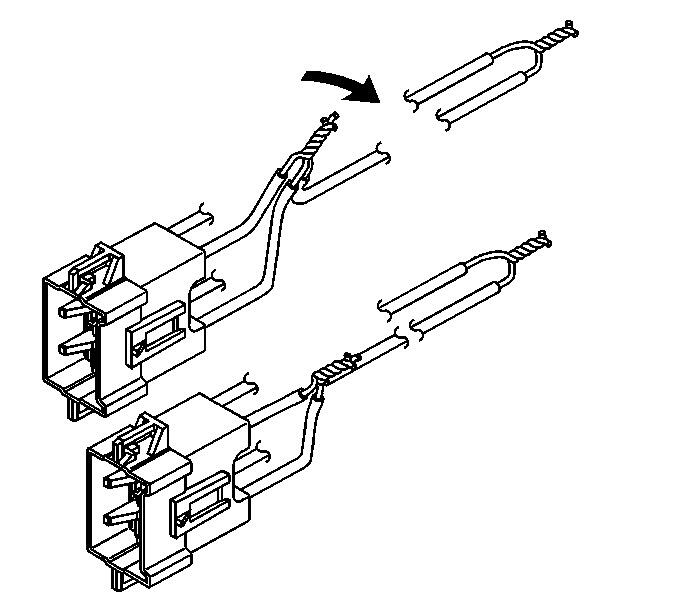

Fig 14: Twisting Connector Wire Leads (High Circuits) To Deployment Harness Wire
Courtesy of GENERAL MOTORS CORP.
27. Twist together 2 connector wire leads, the high circuits from both stages of the I/P module, to one set of deployment wires. Refer to SIR Connector End Views  in order to determine the correct circuits.
28. Inspect that the connection is secure.
Fig 15: Bending Twisted Connection Flat
Courtesy of GENERAL MOTORS CORP.
29. Bend flat the twisted connection.
Fig 16: Insulating Connection With Electrical Tape
Courtesy of GENERAL MOTORS CORP.
30. Secure and insulate the connection using electrical tape.

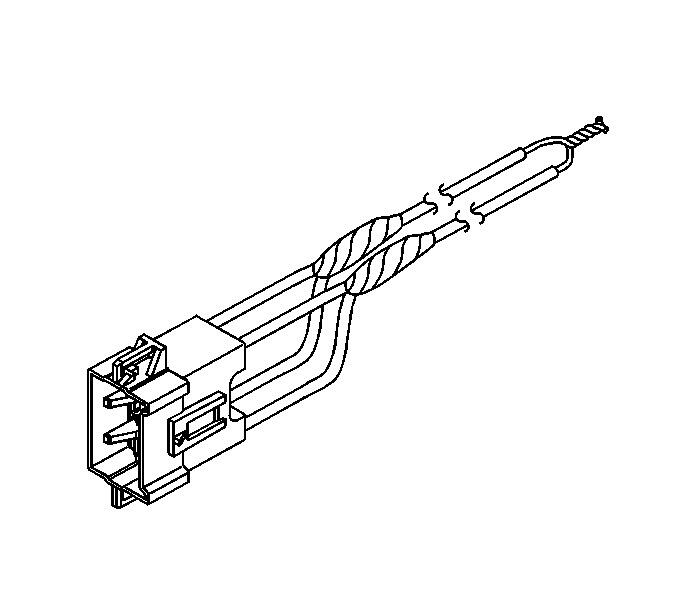

Fig 17: Twisting Connector Wire Leads (Low Circuits) To Deployment Harness Wire
Courtesy of GENERAL MOTORS CORP.
31. Twist together 2 connector wire leads, the low circuits from both stages of the I/P module, to one set of deployment wires. Refer to SIR Connector End Views  in order to determine the correct circuits.
32. Inspect that the connection is secure.
Fig 18: Bending Twisted Connection Flat
Courtesy of GENERAL MOTORS CORP.
33. Bend flat the twisted connection.
Fig 19: Insulating Connection With Electrical Tape
Courtesy of GENERAL MOTORS CORP.
34. Secure and insulate the connection using electrical tape.
35. Connect the deployment harness to the I/P module connector.

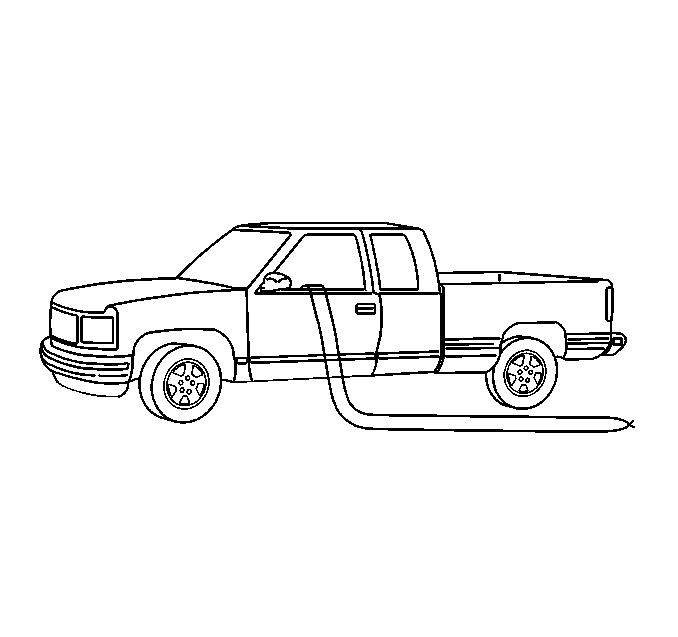

Fig 20: Routing The Deployment Harness Out Of The Vehicle's Passenger Side
Courtesy of GENERAL MOTORS CORP.
36. Route the deployment harness out of the vehicle's passenger side.
37. Stretch the driver side harness to full length.
38. Stretch the passenger side harness to full length.
39. Completely cover the windshield and front door window openings with a drop cloth.
Fig 21: Connecting Power Source To Passenger Side Deployment Harness
Courtesy of GENERAL MOTORS CORP.
40. Place a power source, 12 V minimum/2 A minimum, i.e., a vehicle battery, near the shorted ends of the passenger side deployment harness.
41. Separate the 2 ends of the I/P module deployment harness wires.
42. Connect the I/P module deployment harness wires to the power source in order to deploy the I/P module.
43. Disconnect the I/P module deployment harness wires from the power source.
Fig 22: Routing The Deployment Harness Out Of The Vehicle's Passenger Side
Courtesy of GENERAL MOTORS CORP.
44. Twist together one end of each wire of the I/P module on the passenger side deployment harness in order to short the wires.
Fig 23: Connecting Power Source To Shorted Ends Of The Driver Side Deployment Harness
Courtesy of GENERAL MOTORS CORP.
45. Move the power source, 12 V minimum/2 A minimum, i.e., a vehicle battery, near the shorted ends of the driver side deployment harness.
46. Separate the 2 ends of the steering wheel module deployment harness wires.
47. Connect the steering wheel module deployment harness wires to the power source in order to deploy the steering wheel module.
48. Disconnect the steering wheel module deployment harness wires from the power source.
Fig 24: Routing The Deployment Harness Out Of The Vehicle's Driver Side
Courtesy of GENERAL MOTORS CORP.
49. Twist together 1 end of each wire of the steering wheel module on the driver side deployment harness in order to short the wires.
50. Remove the drop cloth from the vehicle.
51. Disconnect all harnesses from the vehicle.
52. Discard the harnesses.
53. Scrap the vehicle in the same manner as a non-SIR equipped vehicle.
54. If one or more of the inflator modules did not deploy, perform the following steps to remove the undeployed module(s) from the vehicle:
    • Inflatable Restraint Steering Wheel Module Replacement
    • Inflatable Restraint Instrument Panel Module Replacement
55. Contact the Technical Assistance Group for further assistance.
