PID Values

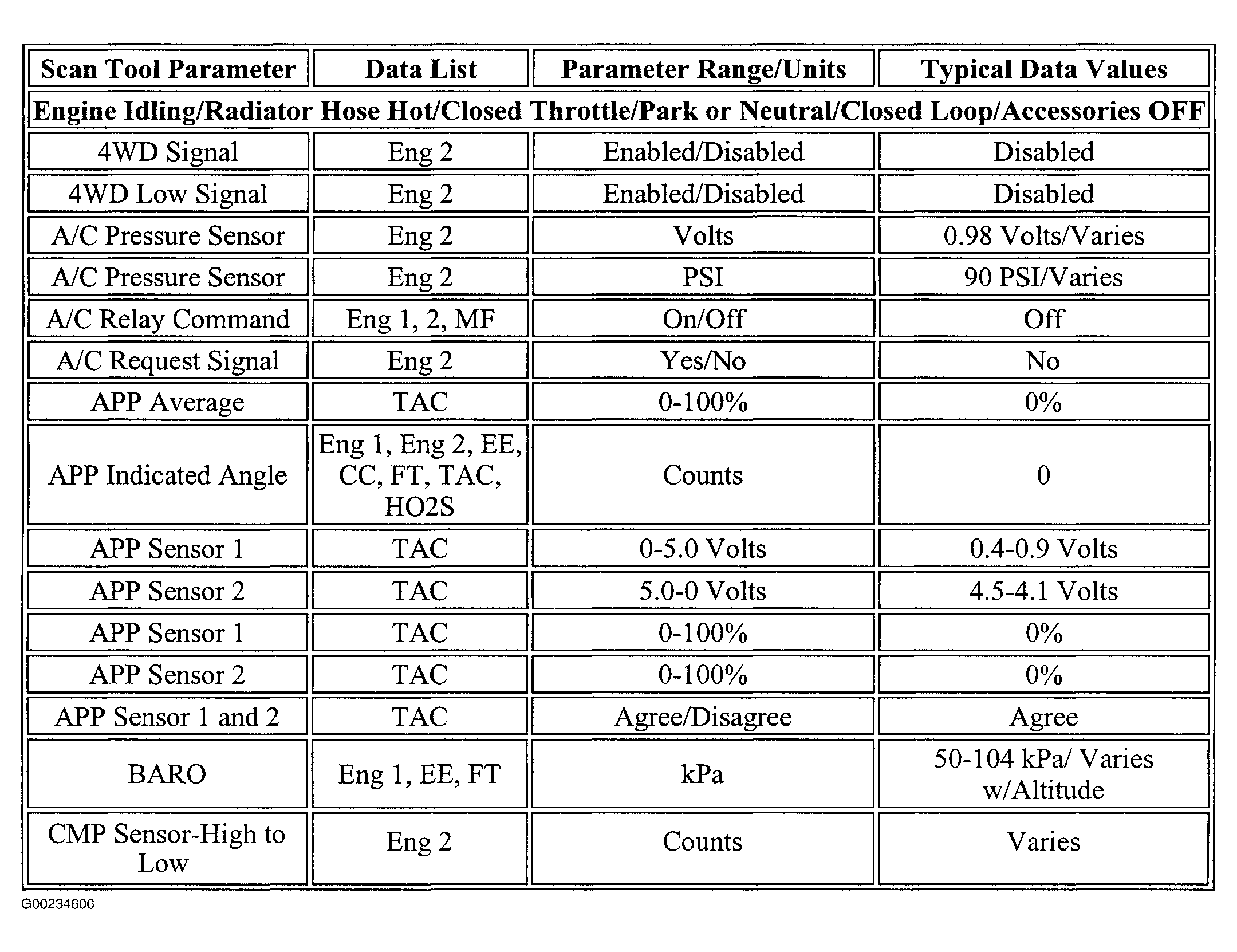

Fig 1: PID Values (1 Of 6)

G00234606

Courtesy of GENERAL MOTORS CORP.

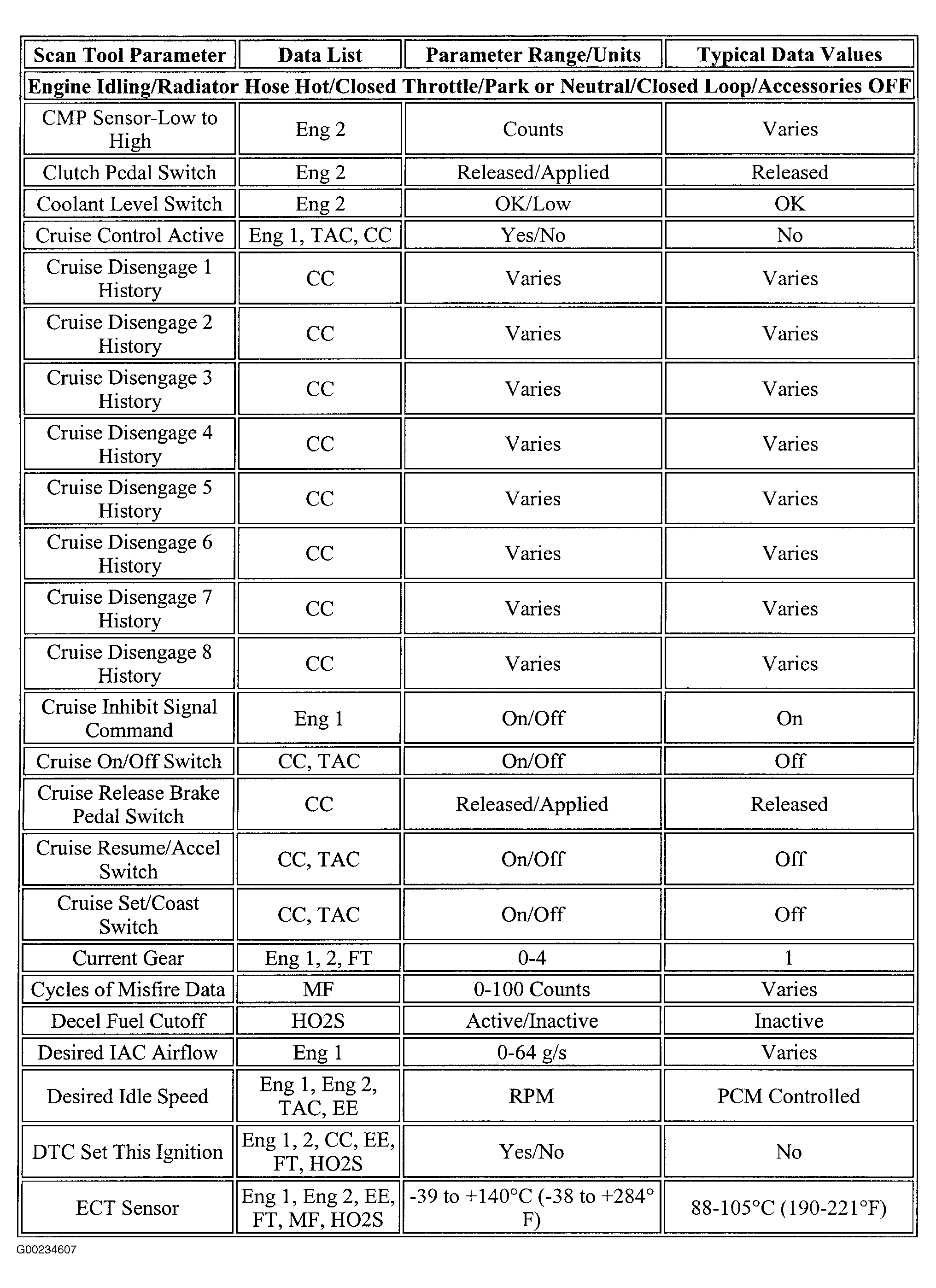

Fig 2: PID Values (2 Of 6)

G00234607

Courtesy of GENERAL MOTORS CORP.

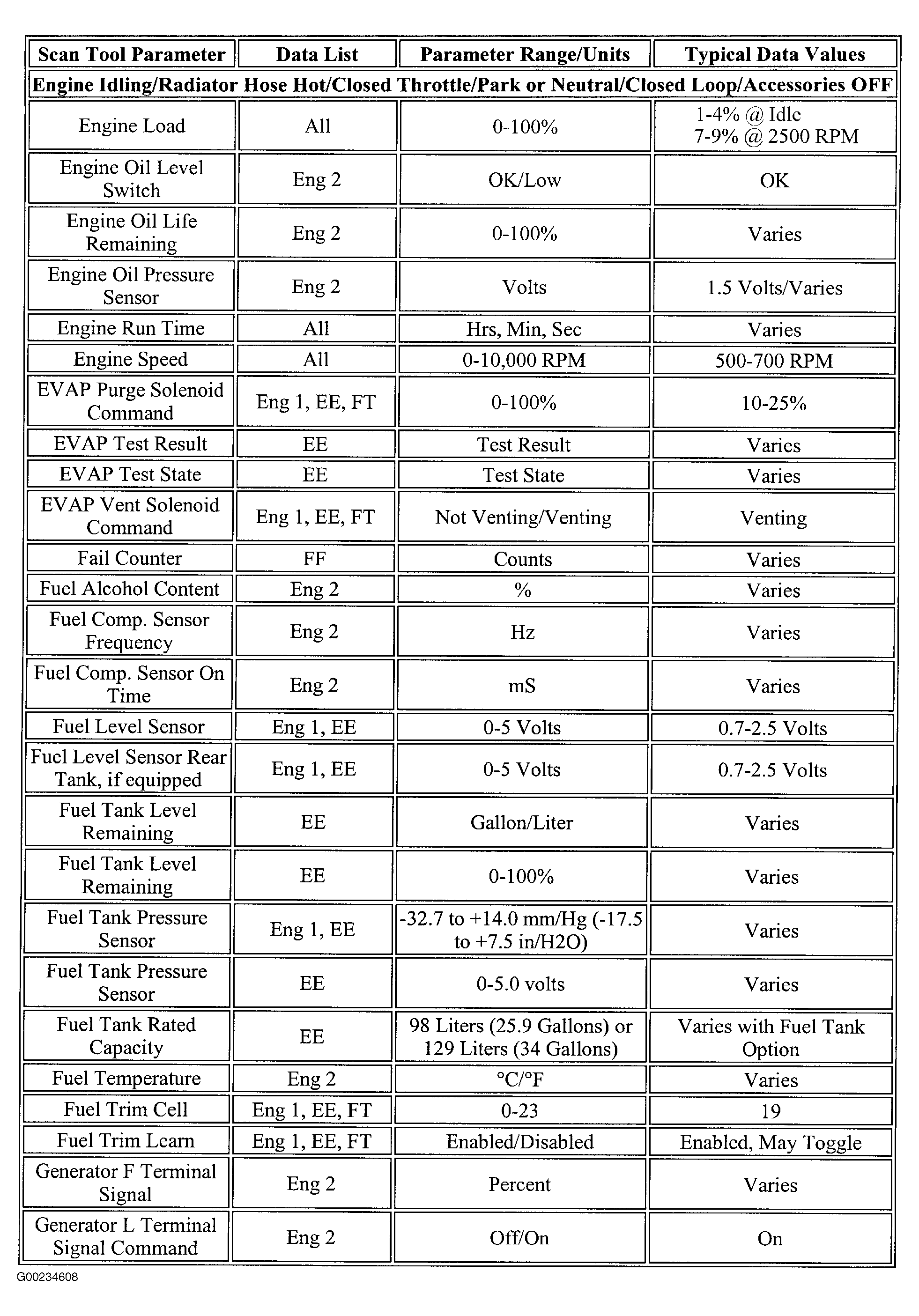

Fig 3: PID Values (3 Of 6)

G00234608

Courtesy of GENERAL MOTORS CORP.

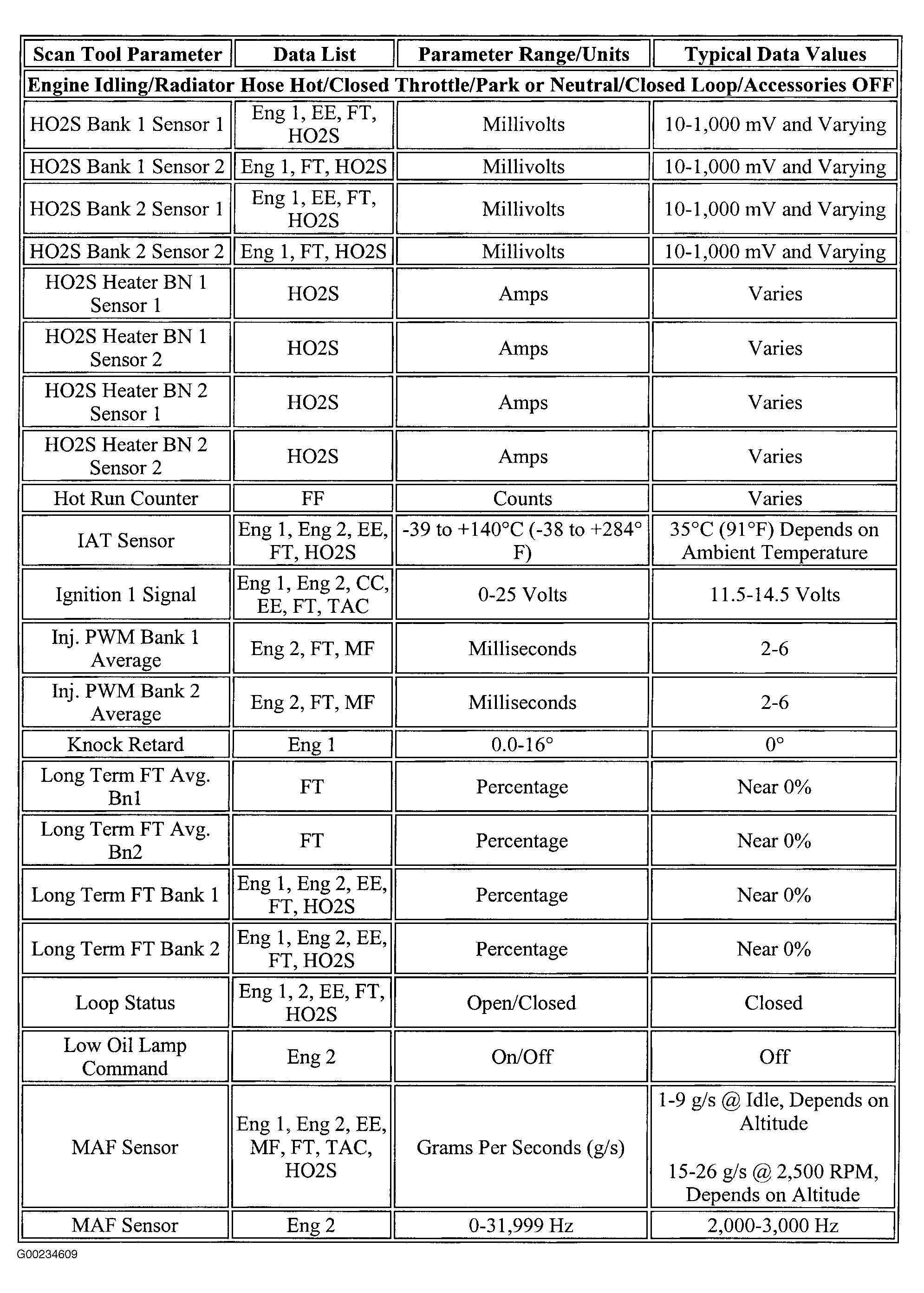

Fig 4: PID Values (4 Of 6)

G00234609

Courtesy of GENERAL MOTORS CORP.

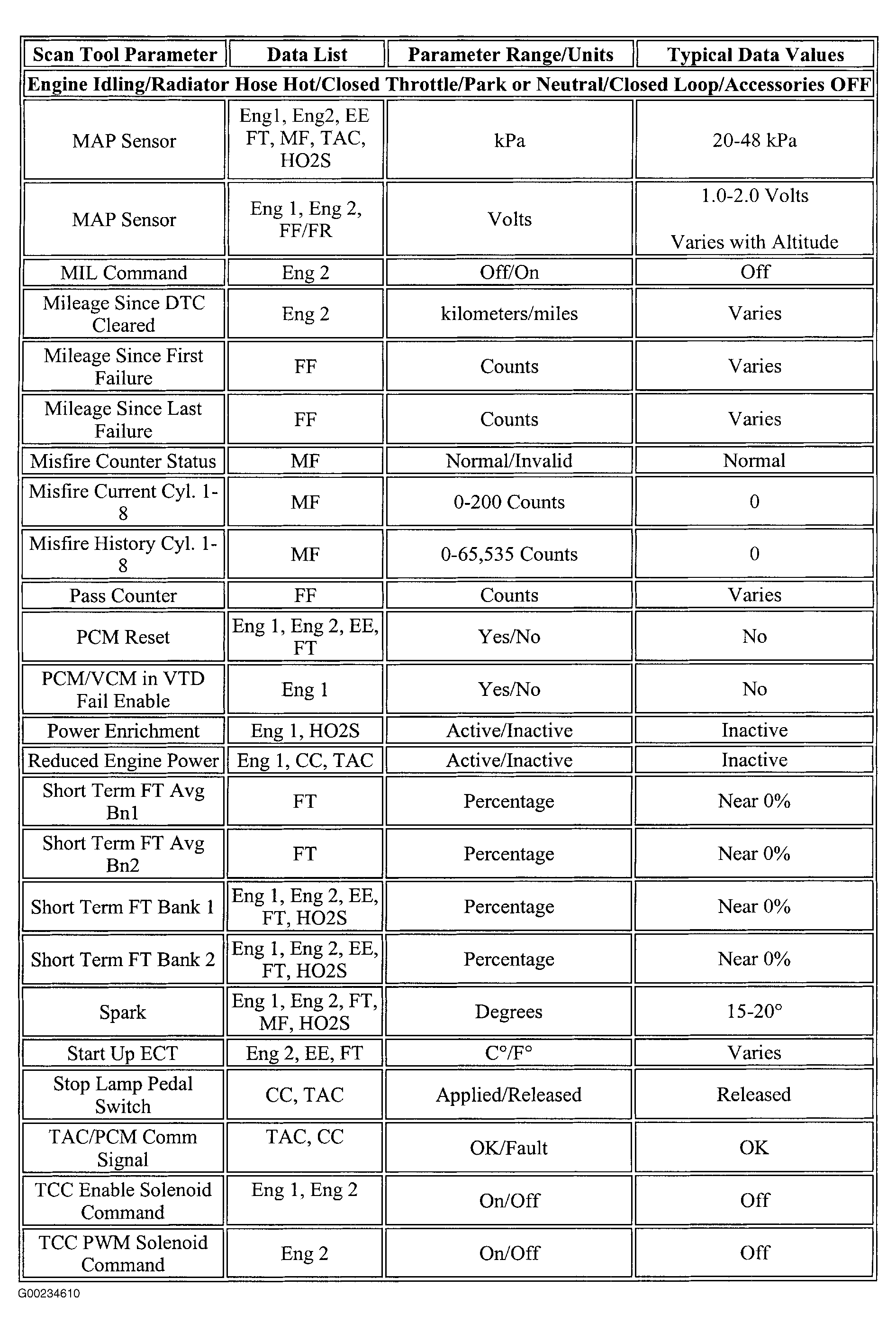

Fig 5: PID Values (5 Of 6)

G00234610

Courtesy of GENERAL MOTORS CORP.

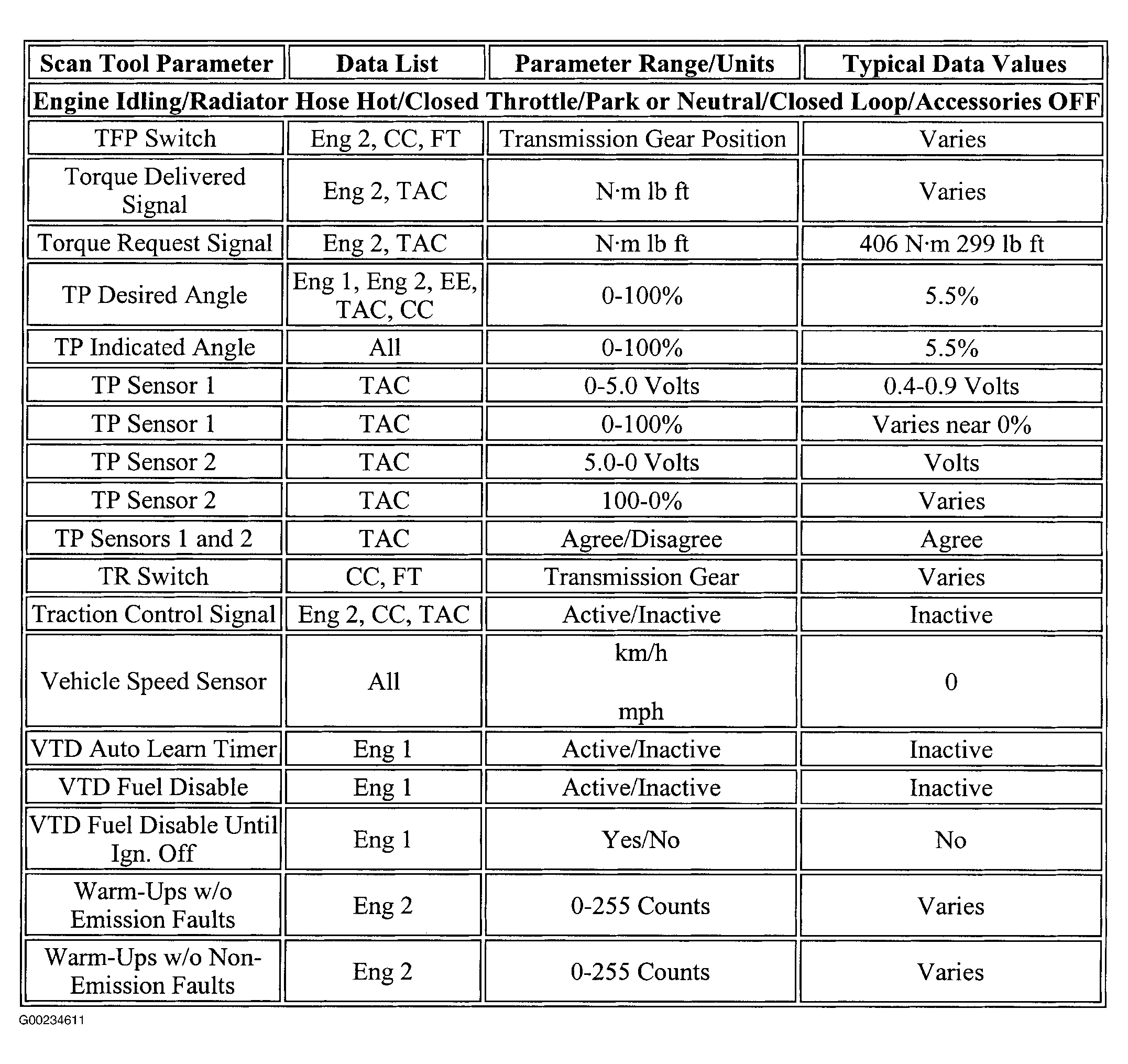

Fig 6: PID Values (6 Of 6)

G00234611

Courtesy of GENERAL MOTORS CORP.
