HVAC Control Module - Auxiliary C1 Connector End View

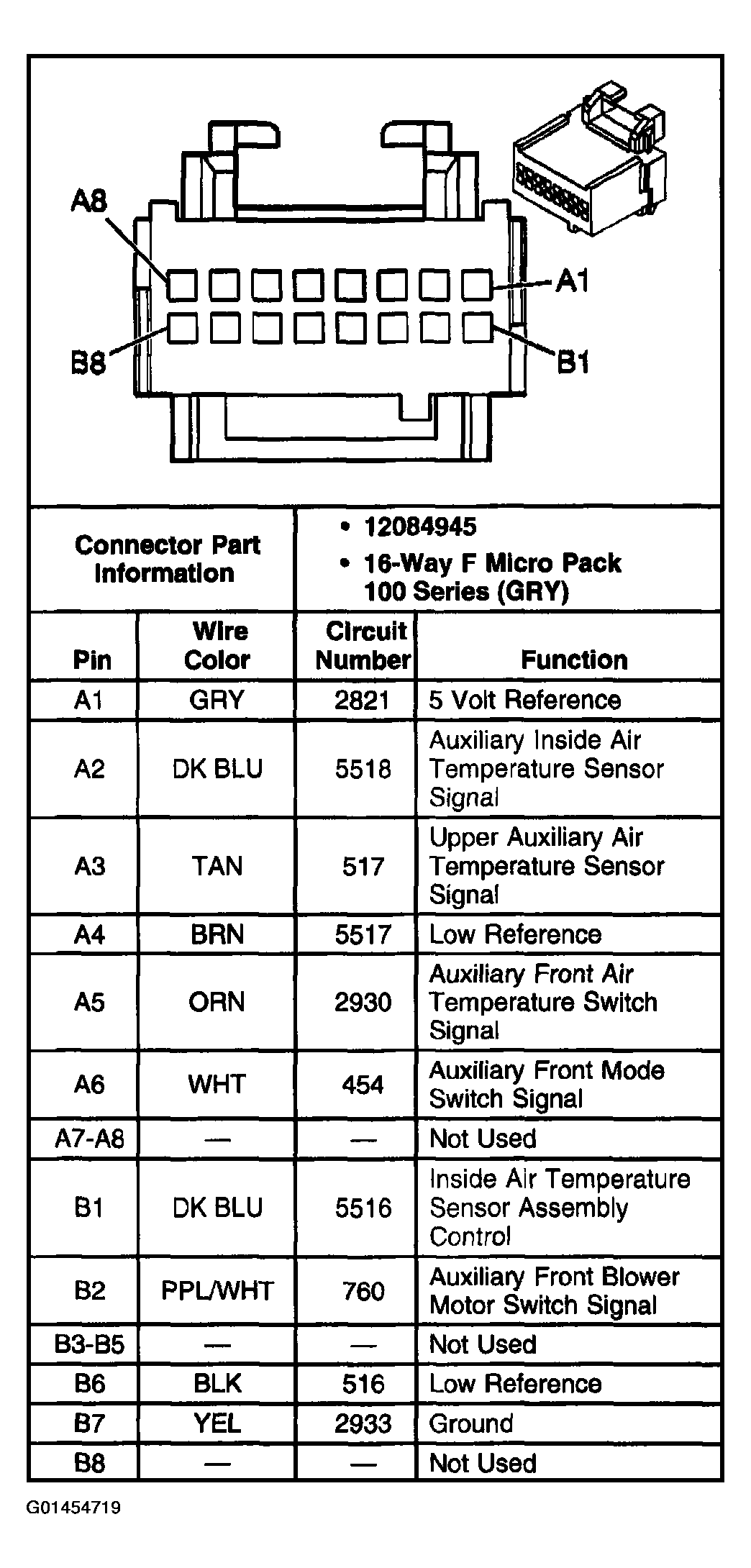

Fig 1: HVAC Control Module - Auxiliary C1 Connector End View
G01454719Courtesy of GENERAL MOTORS CORP.
