Object Sensor - RR Middle Connector End View

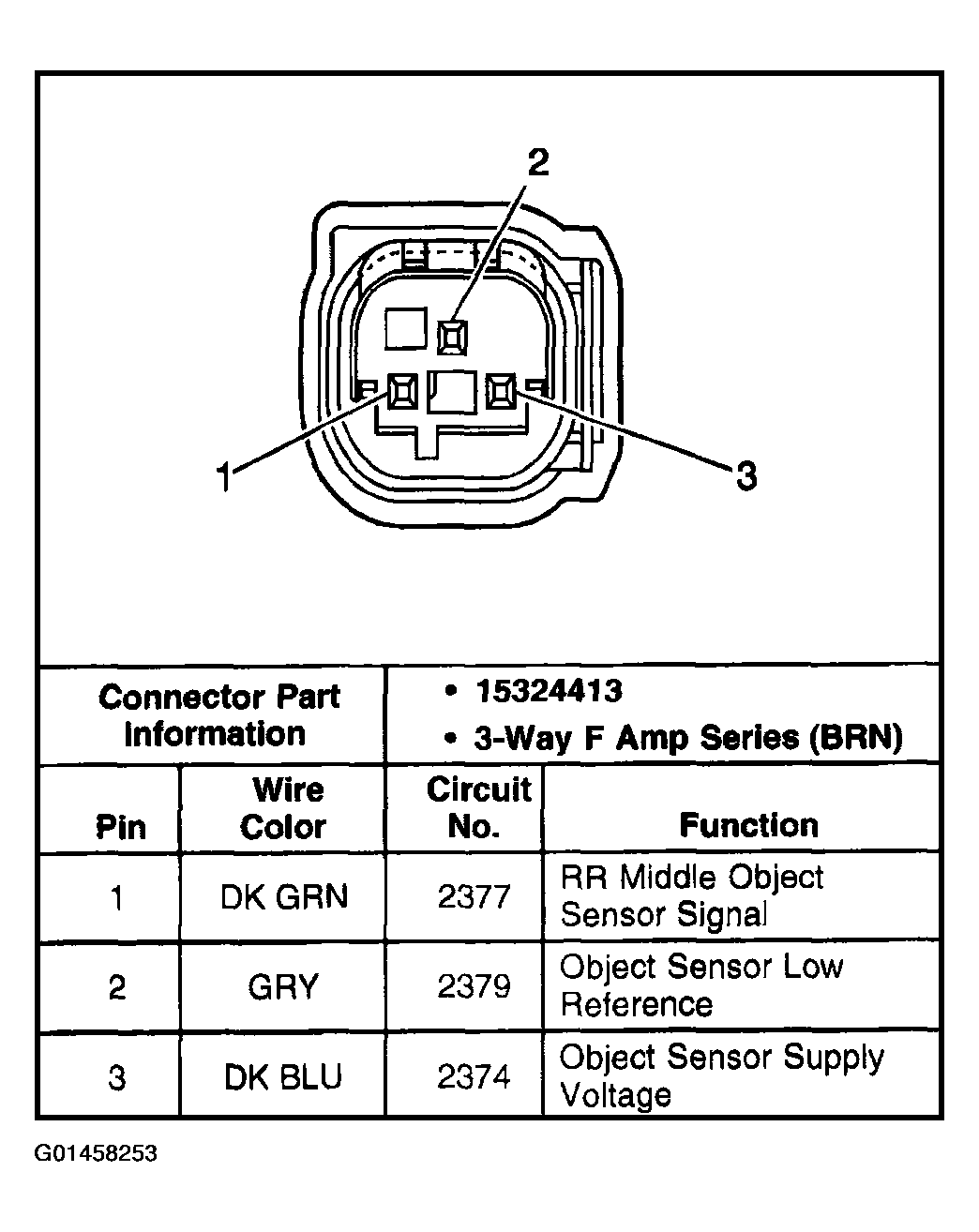

Fig 1: Object Sensor - RR Middle Connector End View
G01458253Courtesy of GENERAL MOTORS CORP.
