Rear Wheel Steering Control Module Connector End View - C1

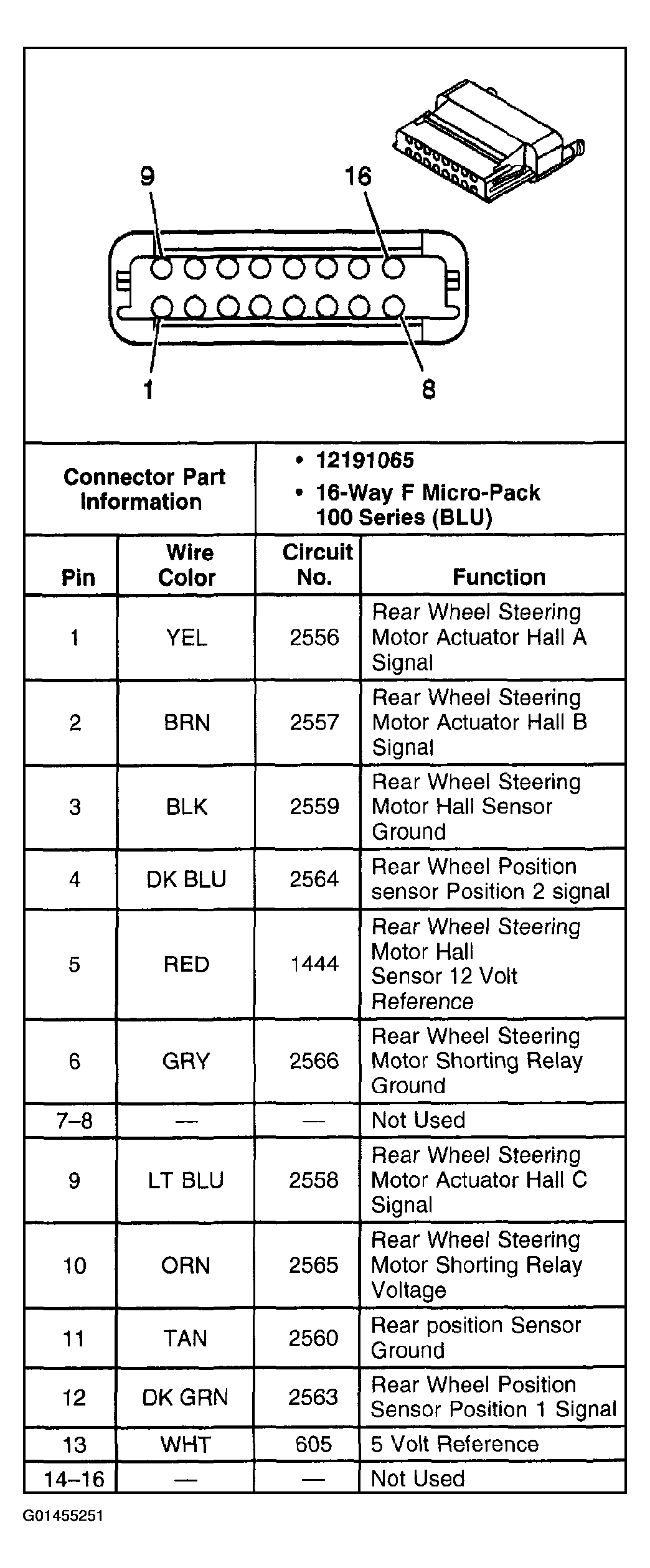

Fig 1: Rear Wheel Steering Control Module Connector End View - C1
G01455251Courtesy of GENERAL MOTORS CORP.
