Rear Wheel Steering Control Module Connector End View - C2

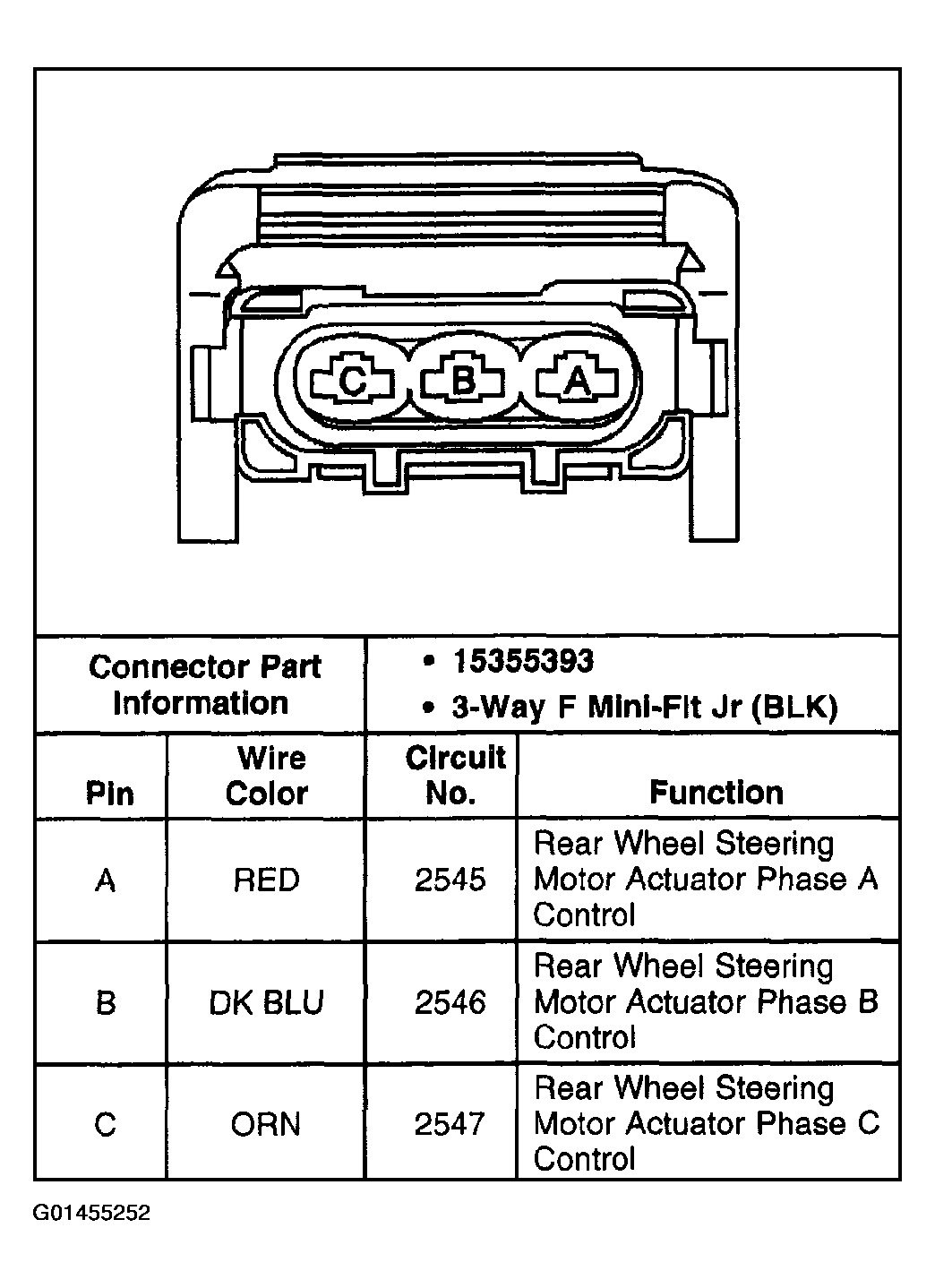

Fig 1: Rear Wheel Steering Control Module Connector End View - C2
G01455252Courtesy of GENERAL MOTORS CORP.
